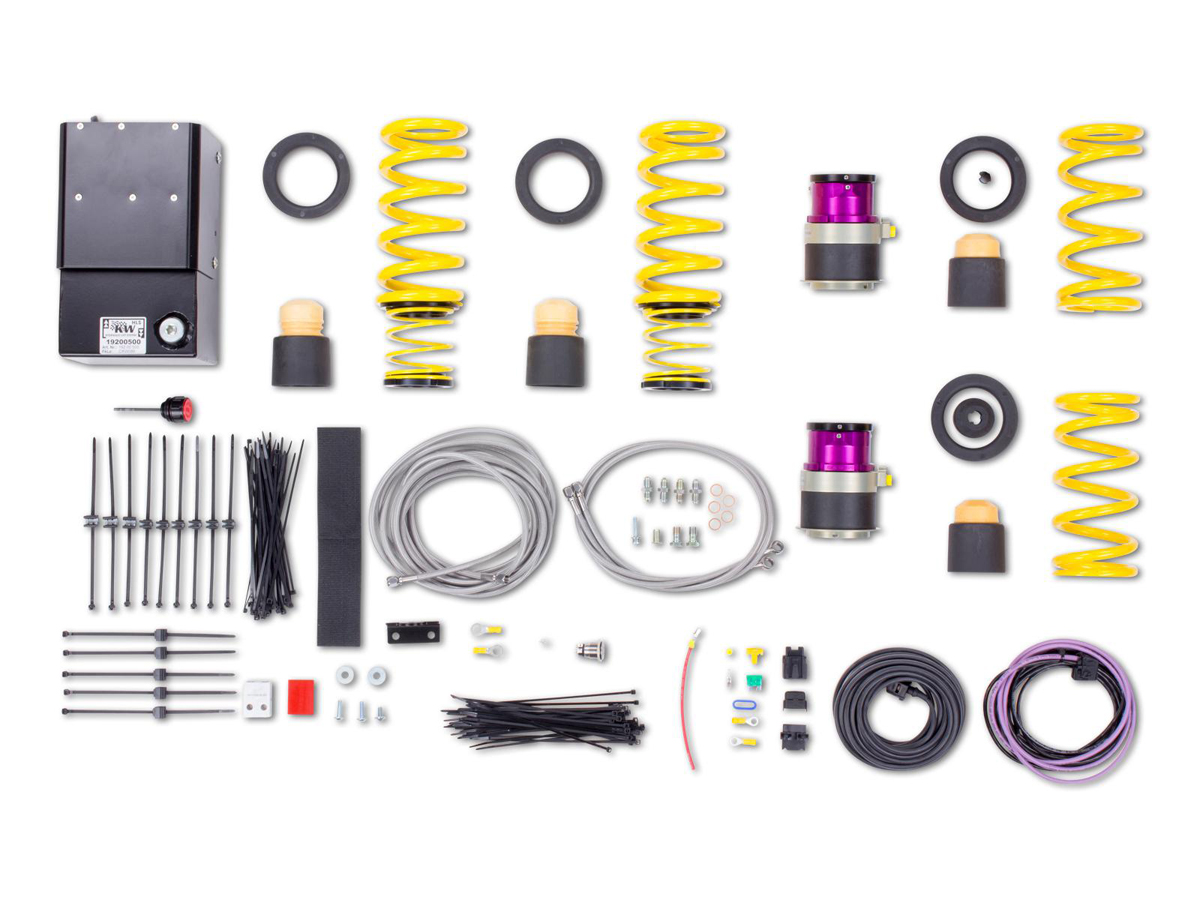

KW

HLS conversion kit for cars with KW coilover kit already fitted.



Fits
Raises: FA: 30-50mm / RA: 25-50mm

Porsche 991 (911) Carrera 2/2S/GTS, Carrera 4/4S/GTS, Targa 4/4S; coupé + convertible
12/2011-11/2015
ONLY right hand drive without PDCC

KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271229

The product you are viewing cross references to these numbers

KW Variant 3 Adjustable kit.



Fits:
Porsche 911 F-Series 1965-73

As part of our "Classic Range" we are now able to provide a complete set of compression and rebound adjustable shock absorbers for the Porsche 911 F-Series.

This kit will accept S-type calipers and vented discs. If your car has M-type calipers (2 piece) and solid discs you have to buy the calipers and discs separately.

KW Notes:
-Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
-Damper set incl. knuckle in galvanized steel

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271076

The product you are viewing cross references to these numbers

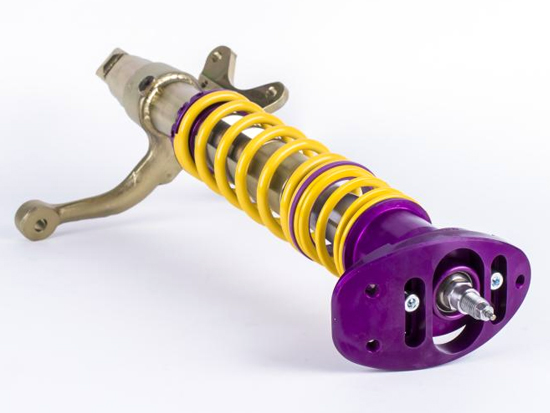

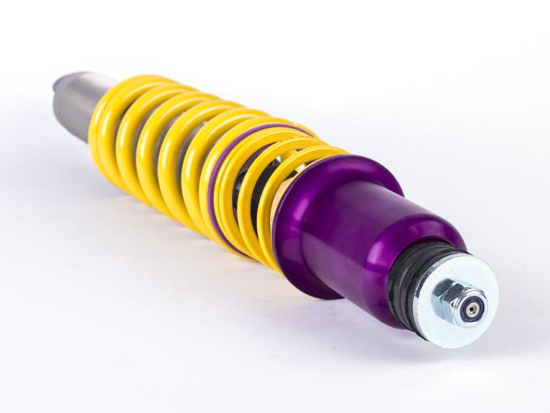

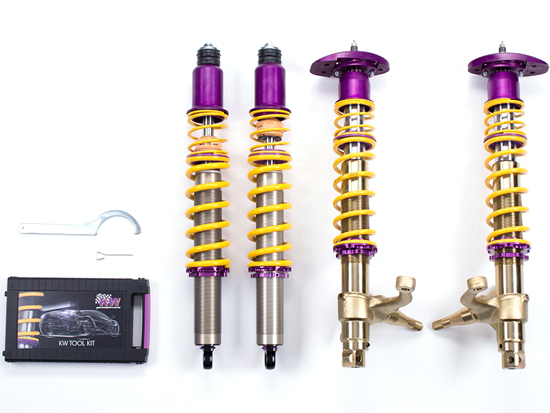

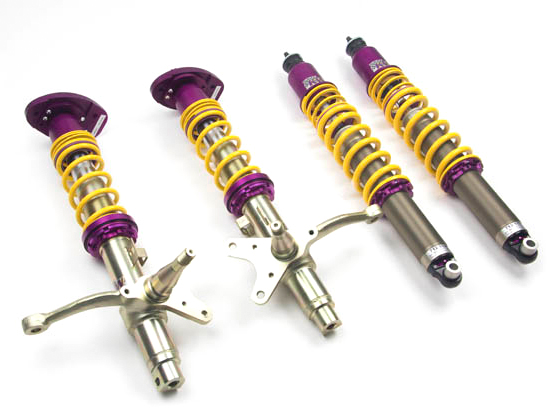

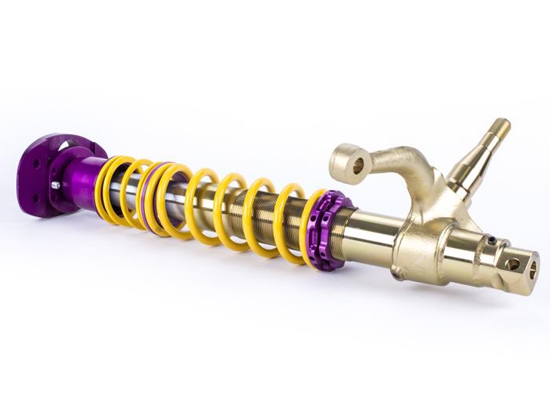

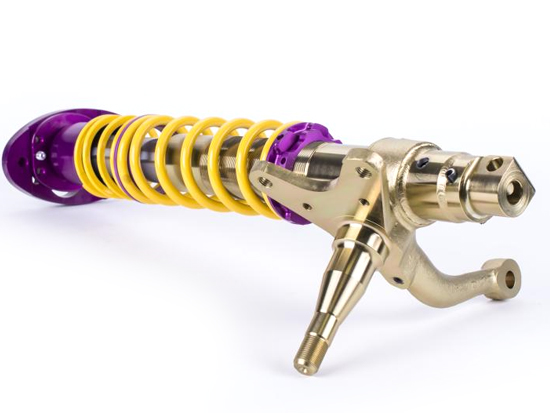

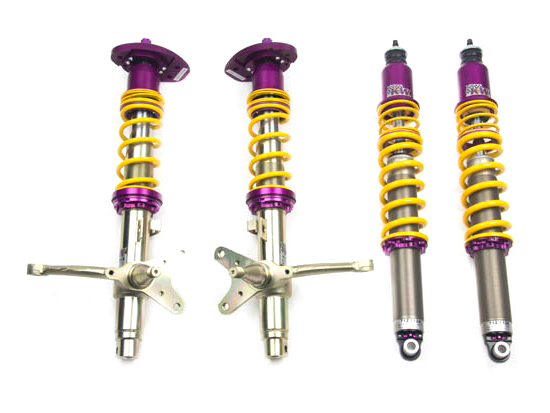

KW Coilover ClubSport Suspension kit.



Fits:
Porsche 911 G-Series 1974-89 Incl. Top Mounts

These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.

The suspension kit has a 3.5" space between the brake calliper mounting points which are for the S type callipers which evidently most G models have.
However some earlier cars have the M calliper will NOT fit this suspension kit


- independently adjustable rebound and compression damping technology
- stainless steel technology "inox-line"
- continuous lowering
- tested adjustment range
- high-quality components for a long-term durability
- adjustable rebound damping with 16 precise clicks
- adjustable compression damping with 12 precise clicks
- unique, independent damping force adjustment
- optional spherical bearing aluminum top mounts

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.

Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW Clubsport 2-way and KW Clubsport 3-way (with separate reservoir) provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.

KW Clubsport coilovers 2-way Racing Technology
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

Setup: Application and damper settings
The KW Clubsport 2-way coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other racing circuits.

Note:
Actual product may differ from what is shown.
- Height adjustable on the front and rear axles (threaded strut housings)
- Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Clubsport coilover with top mount: only with front axle top mount available
- Front axle coilovers incl. Knuckle in galvanized steel

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271864

The product you are viewing cross references to these numbers

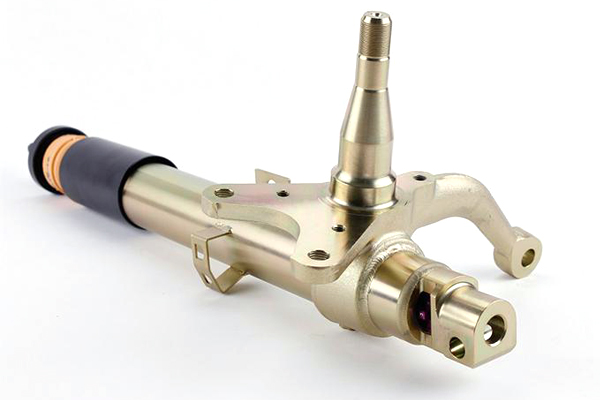

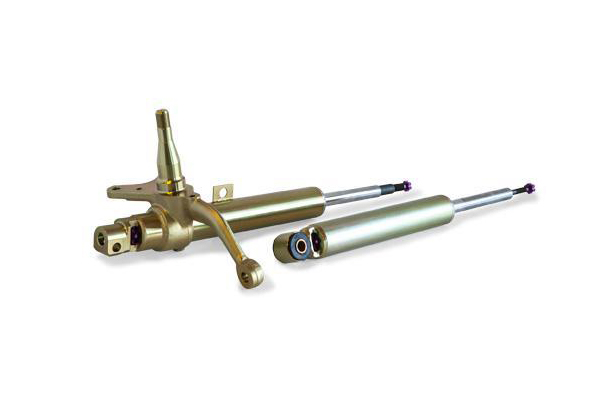

KW Variant 3 Adjustable 19mm Lowered kits. Porsche 911 G-Series 1974-89



The suspension kit has a 3.5" space between the brake calliper mounting points which are for the S type callipers which evidently most G models have.
However some earlier cars have the M calliper which will NOT fit this suspension kit

KW Variant 3 damper kit for the Classic 911 Porsche is now also available with a 19mm lowering. The difference between the two products is the steering knuckle which is mounted 19 mm higher on the new damper kit. By changing the position of the steering knuckle, you not only achieve a fixed lowering of 19 mm, but also the measurement of the former Group 4 Homologation from Porsche.
Furthermore, with this technical modification it is still possible to drive on 15-inch wheels.

Features:
19mm raised spindles
Version: Variant 3
Damping adjustment: Rebound and compression damping
Adjustment FA/RA: Thread/Thread
Material: Stainless steel
Approval: Registration free
Content of delivery: Set FA damper + RA damper

The classic Porsche 911 models have been characterized for decades by a timeless styling coupled with unadulterated sportiness. Everywhere in the world, the "911" is known as a sports car icon. From now on, in compression and rebound damping independently adjustable KW Variant 3 shock absorbers are available as a suspension complete set in galvanized steel housings for all Porsche 911 (from model year 1974) built from 1973 - 1989. For the first time, it is possible that a suspension kit for the Porsche 911 (G-model) with road approval can be adjusted in driving behavior individually to the own personal driving demand. With the integrated compression and rebound adjustment click adjusters, it is easy to individually adjust our recommended damper basic setup. For example, with its 16 click setting, the rebound allows to directly take influence on the handling characteristics as well as the driving comfort. With the low speed compression valve, which can be adjusted in twelve clicks, the driving behavior of the Porsche classic can be further increased if desired. For example, a higher compression level on the front axle allows an even more direct steering, and on the rear axle, higher compression damping forces counteract the oversteering. Due to the degressive valve assembly of the preconfigured high speed compression valve, the damping is positively influenced in the case of a sudden driving over street bumps. The wheels can immerse suddenly and this for example prevents the jumping over curbs. The Porsche 911 equipped with the adjustable KW shock absorbers receives a much more direct handling and gets significantly more grip on the rear axle without an increased oversteer. Even the remaining comfort is increased. The great advantage besides a quantum leap in terms of driving dynamics is that the "KW suspension kit" features spindle struts and dampers, so time-consuming strut conversions with replacement cartridges is not necessary. Also, the standard torsion bar springs on the front and rear axle can still be used.

It technically causes:

- when lowering, the roll center remains higher or is higher at the same driving height.
- the lower transverse control arm does not go upwards, seen from the vehicle
- as a result, the front wheel does not go, or go less, into the direction of a positive camber during compression.
- of course this also causes a lowering of 19 mm, at a constant position of the torsion bar.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271064

The product you are viewing cross references to these numbers

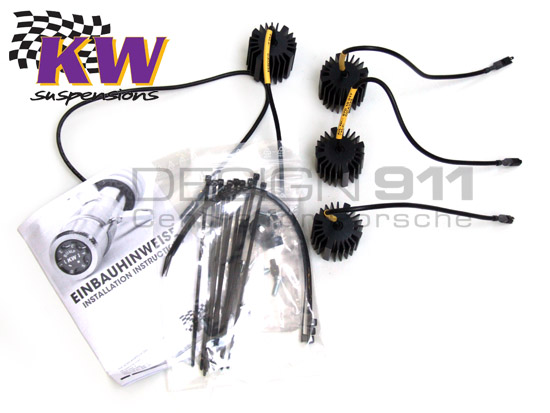

PASM Cancel kit.

Not For Following Cars

Porsche Cayman GT4
Porsche 991 GT3
Porsche 991 GT3 RS

Also usable for suspensions made by other manufacturers and OE aftermarket suspensions

Cancellers avoid ECU failure when suspension is upgraded to KW suspensions

Only factory damper signal is cancelled which results in prevention of error signal

Electronic control unit remains fully functional

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

68510316

The product you are viewing cross references to these numbers

KW Coilover kit Clubsport 3-way incl. top mounts - only with front axle top mount available for cars without PASM.



Lowers car by : FT 30-50 mm / RR 25-45 mm

Fits:
Porsche 718 (982) Boxster 2017>>
Porsche 718 (982) Cayman 2017>>
Porsche 981 Boxster Spyder
Porsche 981 Boxster / Boxster S 2012-16
Porsche 981C Cayman / Cayman S 2013-16

Cars WITHOUT PASM Porsche Active Suspension Management System


Nurburgring Nordschleife is the most popular race track for using our KW Clubsport suspension kits. High performance sports cars, modified saloons as well as classical sport compact cars are tuned in weight, engine and wheels for their use on several race tracks. These improvements are made for a better handling on track sport events, race taxi drives, visitor drives and equability tests particularly on the Nurburgring Nordschleife. Due to these modifications of the car some parameters are changing. Therefore, the road setups are no longer ideal for the performance of the car. For this use we offer special clubsport kits which have been adapted to the changed requirements by changing spring and shock setup as well as the installation of racing top mounts.

• Performance setup for the racetrack
• Dampers in compression and rebound forces independently adjustable
• Use of high performance linear race springs
• Additional available with racing top mounts
• TÜV approval possible depending on the specification

This product is a special order item allow 24 working days -8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

39771278

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits
Raises: FA: 15-35mm / RS: 25mm

Porsche Boxster (981) incl. Boxster S 04/2012>>
ONLY right hand drive

Porsche Cayman (981) incl. Cayman S 01/2013>>
ONLY right hand drive


KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271654

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits
Raises: FA: 15-35mm / RS: 25mm

Porsche Boxster (981) incl. Boxster S 04/2012>>
ONLY left hand drive

Porsche Cayman (981) incl. Cayman S 01/2013>>
ONLY left hand drive

KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271648

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits
Raises: FA: 15/25/35mm / RA: 15-35mm

Porsche 991 (911) Carrera 2/2S/GTS, Carrera 4/4S/GTS, Targa 4/4S; coupé + convertible;
ONLY left hand drive without PDCC
12/2011-11/2015

Porsche 991 (911) Carrera 2/2S, Carrera 4/4S, Targa 4/4S; facelift; coupé + convertible;
ONLY left hand drive without + with PDCC
12/2015>>

KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271643

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits:
Raises: 25-45mm

Porsche Boxster (981) incl. Boxster S 04/2012>>
ONLY right hand drive
Porsche Cayman (981) incl. Cayman S 01/2013>>
ONLY right hand drive


KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271254

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits:
Raises: 25-45mm

Porsche Boxster (981) incl. Boxster S 04/2012>>
ONLY left hand drive
Porsche Cayman (981) incl. Cayman S 01/2013>>
ONLY left hand drive

KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271248

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits:
Raises: FA: 30-50mm / RA: 25-50mm

Porsche 991 (911) Carrera 2/2S/GTS, Carrera 4/4S/GTS, Targa 4/4S; coupé + convertible;
ONLY right hand drive with or without PDCC
12/2011-11/2015

Porsche 991 (911) Carrera 2/2S, Carrera 4/4S, Targa 4/4S; facelift; coupé + convertible;
ONLY right hand drive without + with PDCC
12/2015>>


KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271252

The product you are viewing cross references to these numbers

HLS conversion kit for cars with KW coilover kit already fitted.



Fits:
Raises: FA: 30-50mm / RA: 25-50mm

Porsche 991 (911) Carrera 2/2S/GTS, Carrera 4/4S/GTS, Targa 4/4S; coupé + convertible;
ONLY left hand drive with or without PDCC
12/2011-11/2015

Porsche 991 (911) Carrera 2/2S, Carrera 4/4S, Targa 4/4S; facelift; coupé + convertible;
ONLY left hand drive without + with PDCC
12/2015>>

KW HLS (Hydraulic Lift System) helping sport cars avoid road clearance difficulties
Raises the vehicle up to 45 mm

The HLS provides additional road clearance for lowered vehicles. When expanded, a range of 30mm to 45mm of lift is produced, thereby helping sport cars avoid road clearance difficulties like speed bumps, road constructions etc.

Version HLS 2
HLS 2 which enables only the FRONT axles to be lifted and lowered

• For vehicles with with little road clearance
• Vehicle specific applications
• Activation of change in height by a small keychain transmitter avoiding the need to run additional wires through the vehicle
• Height changes can be done while the vehicle is moving, up to speeds of 80 km/h (50 mph)
• Automatically lowering of the vehicle
• With TÜV certificate
• Rubber bellows protect hydraulic cylinder, thereby providing long term durability.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Estimated Labour time to fit this kit is 8-10hrs. Depends on spec of the car and other conditions

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

19271243

The product you are viewing cross references to these numbers

KW Variant 3 Adjustable kit



Fits:
Porsche Macan (95B, 95BN) 04/2014>> with PASM

Lowers car by: FT 40-80mm / RR 45-85mm

Cars WITH PASM Porsche Active Suspension Management System.

• Independently adjustable damping technology -rebound and compression damping
• inox-line stainless steel technology at no extra charge
• Individual height adjustment
• German TUV-tested adjustment parameters
• High-quality components for long life
• Comprehensive documentation for ease of use
• Infinitely adjustable rebound damping
• 14- level adjustable compression damping
• Unique, independently functioning damping power adjustment

Variant 3 race technology for the road with adjustable compression and rebound damping. The new Variant 3 is state-of-the-art technology for the skilled and experienced driver. The separate and independent compression and rebound damping options allow a truly individual driving set-up. These unique systems with the 3 individually adjustable components, allows for adjustment of the compression of the damper in the low-speed range, while the highspeed set-up, so decisive for driving comfort, has been preset by our engineers.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271056

The product you are viewing cross references to these numbers

KW Variant 3 Adjustable kit



Fits:
Porsche Macan (95B, 95BN) 04/2014>> without PASM

Lowers car by: FT 40-80mm / RR 35-75mm

Cars WITHOUT PASM Porsche Active Suspension Management System.

• Independently adjustable damping technology -rebound and compression damping
• inox-line stainless steel technology at no extra charge
• Individual height adjustment
• German TUV-tested adjustment parameters
• High-quality components for long life
• Comprehensive documentation for ease of use
• Infinitely adjustable rebound damping
• 14- level adjustable compression damping
• Unique, independently functioning damping power adjustment

Variant 3 race technology for the road with adjustable compression and rebound damping. The new Variant 3 is state-of-the-art technology for the skilled and experienced driver. The separate and independent compression and rebound damping options allow a truly individual driving set-up. These unique systems with the 3 individually adjustable components, allows for adjustment of the compression of the damper in the low-speed range, while the highspeed set-up, so decisive for driving comfort, has been preset by our engineers.

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35210090

The product you are viewing cross references to these numbers

KW Variant 3 Adjustable kit



As part of our "Classic Range" we are now able to provide a complete set of compression and rebound adjustable shock absorbers for the Porsche 911 G-Series.

The suspension kit has a 3.5" space between the brake calliper mounting points which are for the S type callipers which evidently most G models have.
However some earlier cars have the M calliper which will NOT fit this suspension kit

The V3 damper kit's biggest draws is that it eliminates the need for costly and time consuming strut conversion to front and rear of the 70's/80's 911. Instead KW's adjustable damper package works with the front and rear torsion bars already in situ, allowing G-series owners to take control of their car's chassis setup. It also replicates one of this particular generation 911's key suspension traits, namely its threaded wheel carrying 'knuckles', and all in galvanised mild steel for a long and durable life.

KW Notes:
- Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Damper set incl. knuckle in galvanized steel

This product is a special order item allow 24 working days - 8 weeks for delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35271061

The product you are viewing cross references to these numbers
