DesignTek

Same as "Big Red" 993 Turbo brakes, these brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications

SET OF 2




Porsche multiple applications

Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast

Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers

Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604209301

The product you are viewing cross references to these numbers

A Voucher for £100 available when you buy this product. For more information CLICK HERE

DesignTek Valvetronic sports exhaust system for Porsche Panamera with deluxe tips and X-Pipe resonator bypass cat back system.
High quality, 14-16 gauge 2.5"/63.5mm T304 stainless steel, mandrel bent tubing for much better exhaust flow and reduced backpressure.



The exhaust system is a direct replacement for factory under car center muffler/resonator and OEM muffler.

This unique exhaust configures a dual-tone setup controlled by a key fob which you can switch on the fly. Direct replacement for the factory mufflers and will work with the stock primary pipe and cats or DesignTek primary bypass pipe.

High-Performance Rear Exhaust with sound switch:
● Push the sound-button between:
Switch closed: Deep Sports Turbo Sound

Switch opened: Perfect Racing Sports Sound

Superb sports car sound, throaty and deep with the valves opened, but docile with the valves closed.

Fits:
Porsche 970 Panamera S 4.8L
Porsche 970 Panamera 4S 4.8L

Please note the remote controlers do not come with batteries. You will have to source them at your own cost. The type is CR2025

For Wiring Diagram please CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606007001

The product you are viewing cross references to these numbers

Build Your Own Brake Kit ? FRONT 8 PISTONS
DesignTek GT Big Brake Kit.





Caliper & Brake Disc
Option A.
8 Piston Caliper + Brake Disc Size: 380mm
Requires a Minimum Wheels size of 19"

Option B.
8 Piston Caliper + Brake Disc Size: 405mm
Requires a Minimum Wheels size of 20"

Front 8 POT brake caliper dimensions

What Your Kit Contains:
2 x Brake Disc : Your Selected Size
Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers : Your Selected Colour
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.
- Brake Disc Rotors with larger vents to have ability to dissipate heat.
- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.
- Squeeze forged piston caliper
- Caliper mounting bracket with high tensile steel studs.
- DOT stainless steel braided Teflon brake line.
- High performance sport brake pads (race pads are optional).
This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.


**You will be required to fill in your complete vehicle details when completing the order

Please note all brake kits are custom made per specified vehicle. Please allow 16 - 20 weeks for delivery.

Build Your Own Brake Kit ? FRONT 6 PISTONS
DesignTek GT Big Brake Kit.





Caliper & Brake Disc
Option A.
6 Piston Caliper + Brake Disc Size: 355mm
Requires a Minimum Wheels size of 18"

Option B.
6 Piston Caliper + Brake Disc Size: 380mm
Requires a Minimum Wheels size of 19"

What Your Kit Contains:
2 x Brake Disc : Your Selected Size
Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers : Your Selected Size
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.
- Brake Disc Rotors with larger vents to have ability to dissipate heat.
- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.
- Squeeze forged piston caliper
- Caliper mounting bracket with high tensile steel studs.
- DOT stainless steel braided Teflon brake line.
- High performance sport brake pads (race pads are optional).
This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.

Pagid Replacement Brake pads can be used with this brake kit:
Part No. E8018 = 6 Piston Calipers

**You will be required to fill in your complete vehicle details when completing the order

Please note all brake kits are custom made per specified vehicle. Please allow 16 - 20 weeks for delivery.

Build Your Own Brake Kit - REAR
DesignTek GT Big Brake Kit.




Caliper & Brake Disc
OPTION A:
4 Piston Caliper + Brake Disc Size: 355mm
Requires a Minimum Wheels size of 18"

OPTION B:
6 Piston Caliper + Brake Disc Size: 380mm
Requires a Minimum Wheels size of 19"

Rear 6 POT brake caliper dimensions

What Your Kit Contains:
2 x Brake Disc : Your Selected Size
Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers : Your Selected Size
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.
- Brake Disc Rotors with larger vents to have ability to dissipate heat.
- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.
- Squeeze forged piston caliper
- Caliper mounting bracket with high tensile steel studs.
- DOT stainless steel braided Teflon brake line.
- High performance sport brake pads (race pads are optional).
This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.

Pagid Replacement Brake pads can be used with this brake kit:
Part No. E1749 = 4 Piston Calipers
Part No. E8018 = 6 Piston Calipers

** You will be required to fill in your complete vehicle details when completing the order

Please note all brake kits are custom made per specified vehicle. Please allow 16 - 20 weeks for delivery.

DesignTek Exhaust tail pipes 4 Tube Design, in CHROME finish.



DesignTek stainless steel sports tailpipes with elegant four-tube styling and Chrome finish. Adjustable neck for ease of fitment.

Fits:
Porsche 996 Carrera C2 3.6L
Porsche 996 Carrera C4 3.6L

Chromed Tail Pipe
Sizes: 95H x 140W x 265L

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606409602

The product you are viewing cross references to these numbers

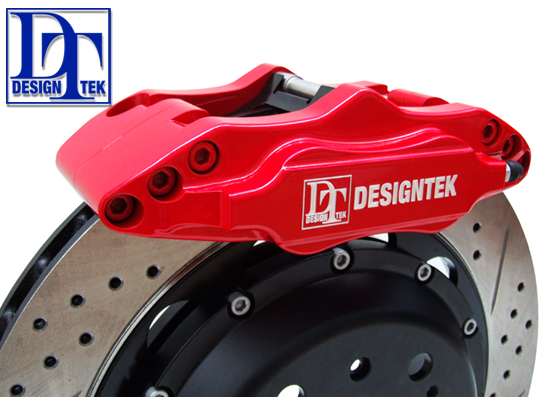

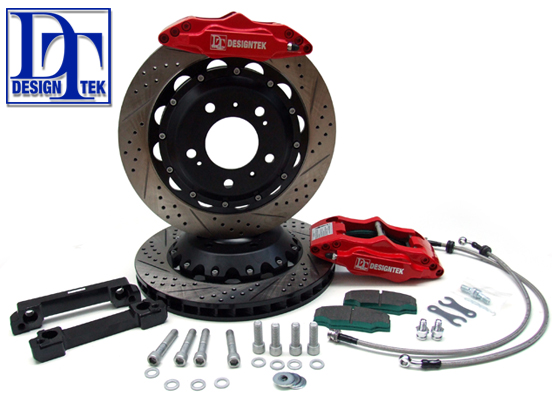

DesignTek GT Big Brake Kit (Rear) Porsche.
Brake Disc Size: 355x28

Note: Special order item 10-12 weeks lead time

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.

- Brake Disc Rotors with larger vents to have ability to dissipate heat.

- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.

- Squeeze forged piston caliper

- Caliper mounting bracket with high tensile steel studs.

- DOT stainless steel braided Teflon brake line.

- High performance sport brake pads (race pads are optional).

This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.


Fits:
Porsche 986 / 987 Boxster 1997>> Rear
Porsche 987C Cayman 2006>> Rear

Kit Contains:
2 x Brake Disc Size: 355x28
2 x Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers Type: R3030 Pistons : 4
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Pagid Replacement Brake pads can be used with this brake kit:
Part No. E1749Compound RS4-2 / RS4-4
Part No. E1749Compound RS14
Part No. E1749Compound RS15
Part No. E1749Compound RS29
Part No. E1749Compound RS5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604008625

The product you are viewing cross references to these numbers

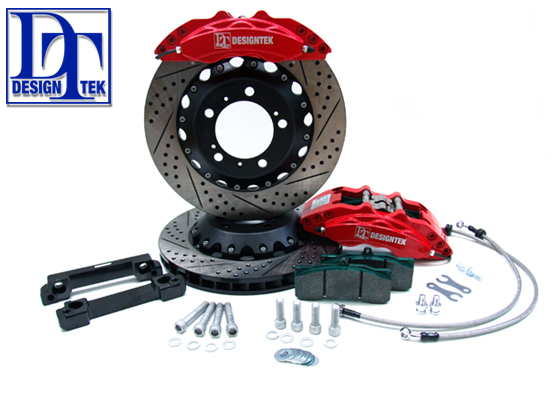

DesignTek GT Big Brake Kit (Front) Porsche.
Brake Disc Size: 355x32





Note: Special order item 10-12 weeks lead time

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.

- Brake Disc Rotors with larger vents to have ability to dissipate heat.

- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.

- Squeeze forged piston caliper

- Caliper mounting bracket with high tensile steel studs.

- DOT stainless steel braided Teflon brake line.

- High performance sport brake pads (race pads are optional).

This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.


Fits:
Porsche 996 C2 1999-04 Front
Porsche 997 C2 2005>> Front
Porsche 986 / 987 Boxster 1997>> Front
Porsche 987C Cayman 2006>> Front

Kit Contains:
2 x Brake Disc Size: 355x32
2 X Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers Type: F0506 Pistons : 6
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Pagid Replacement Brake pads can be used with this brake kit:
part No. E8018Compound RS29
part No. E8018Compound RS5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604008615

The product you are viewing cross references to these numbers

DesignTek GT Big Brake Kit (Rear) Porsche.
Brake Disc Size: 355x28





Note: Special order item 10-12 weeks lead time

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.

- Brake Disc Rotors with larger vents to have ability to dissipate heat.

- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.

- Squeeze forged piston caliper

- Caliper mounting bracket with high tensile steel studs.

- DOT stainless steel braided Teflon brake line.

- High performance sport brake pads (race pads are optional).

This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.


Fits:
Porsche 996 C2 / C4 1999-04 Rear
Porsche 996 C4S / Turbo 2001-04 Rear
Porsche 997 C2 / C2S 2006>> Rear
Porsche 997 C4 / C4S 2006>> Rear

Kit Contains:
2 x Brake Disc Size: 355x28
2 x Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers Type: R3030 Pistons : 4
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Pagid Replacement Brake pads can be used with this brake kit:
Part No. E1749Compound RS4-2 / RS4-4
Part No. E1749Compound RS14
Part No. E1749Compound RS15
Part No. E1749Compound RS29
Part No. E1749Compound RS5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604009625

The product you are viewing cross references to these numbers

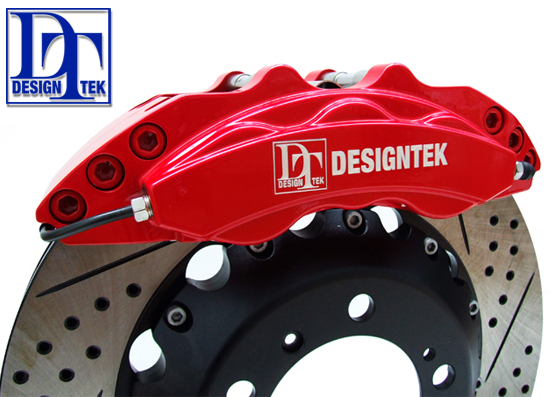

DesignTek GT Big Brake Kit Porsche.
Brake Disc Size: 355x32





Note: Special order item 10-12 weeks lead time

Designed and Engineer and Manufacture offering the highest quality replacement performance components for an elite group of extreme individuals.

- Brake Disc Rotors with larger vents to have ability to dissipate heat.

- Lightweight aluminium centre hat with hard anodizing Electrolyte treatment for durability.

- Squeeze forged piston caliper

- Caliper mounting bracket with high tensile steel studs.

- DOT stainless steel braided Teflon brake line.

- High performance sport brake pads (race pads are optional).

This braking system is complete with a set of high performance brake pads, metal braid tubes and high quality small fitting parts.

Fits:
Porsche 996 C4S / Turbo 2001-2004 Front
Porsche 997 C4S 2005>> Front

Kit Contains:
2 x Brake Disc Size: 355x32
2 x Brake Disc Type: 2-Piece Drilled
2 x Brake Calipers Type: F0506 Pistons : 6
1 x Brake pads set
2 x Stainless steel Brake Hose
1 x Fitting brackets & bolts

Pagid Replacement Brake pads can be used with this brake kit:
part No. E8018Compound RS29
part No. E8018Compound RS5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604009615

The product you are viewing cross references to these numbers

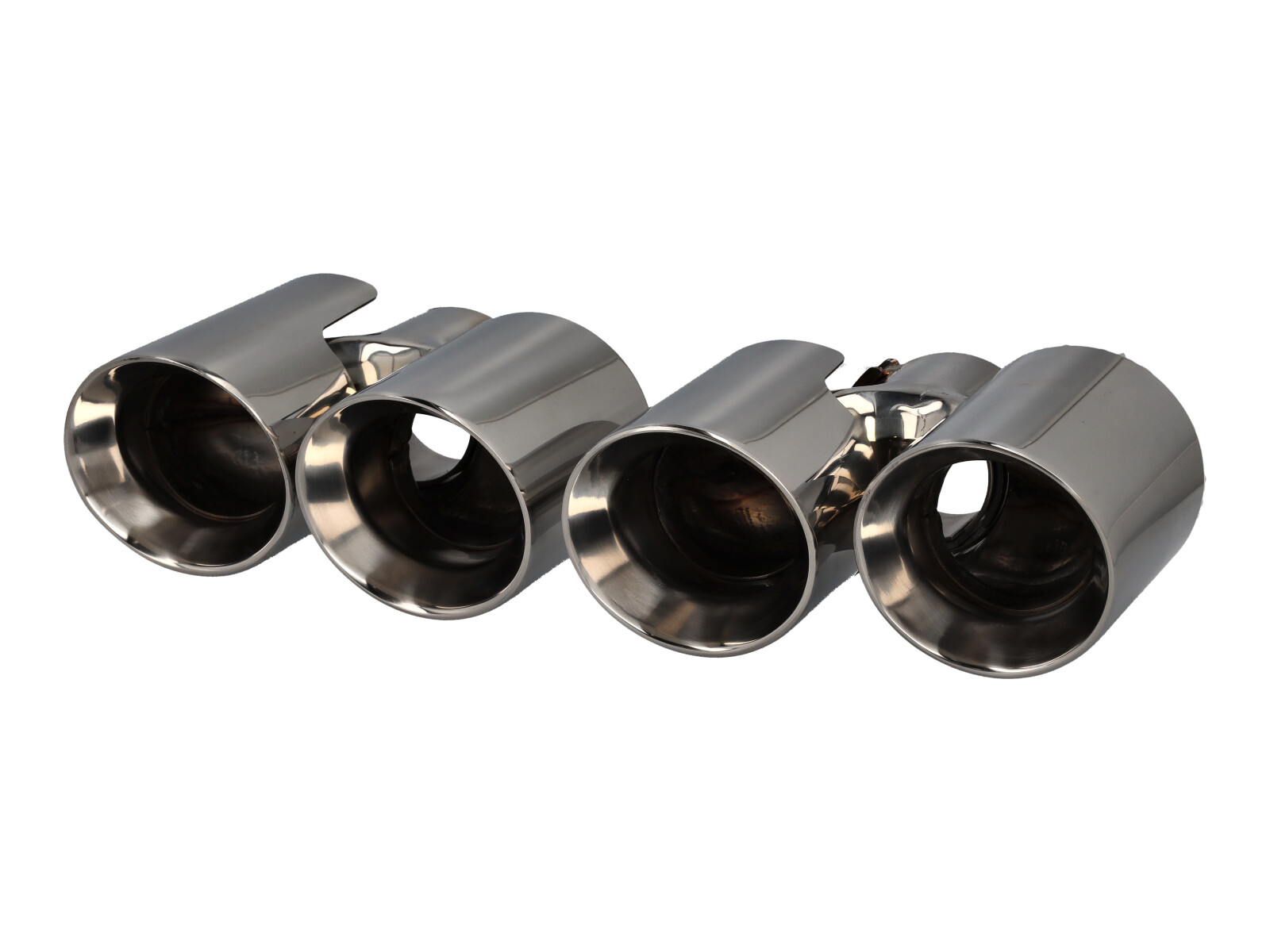

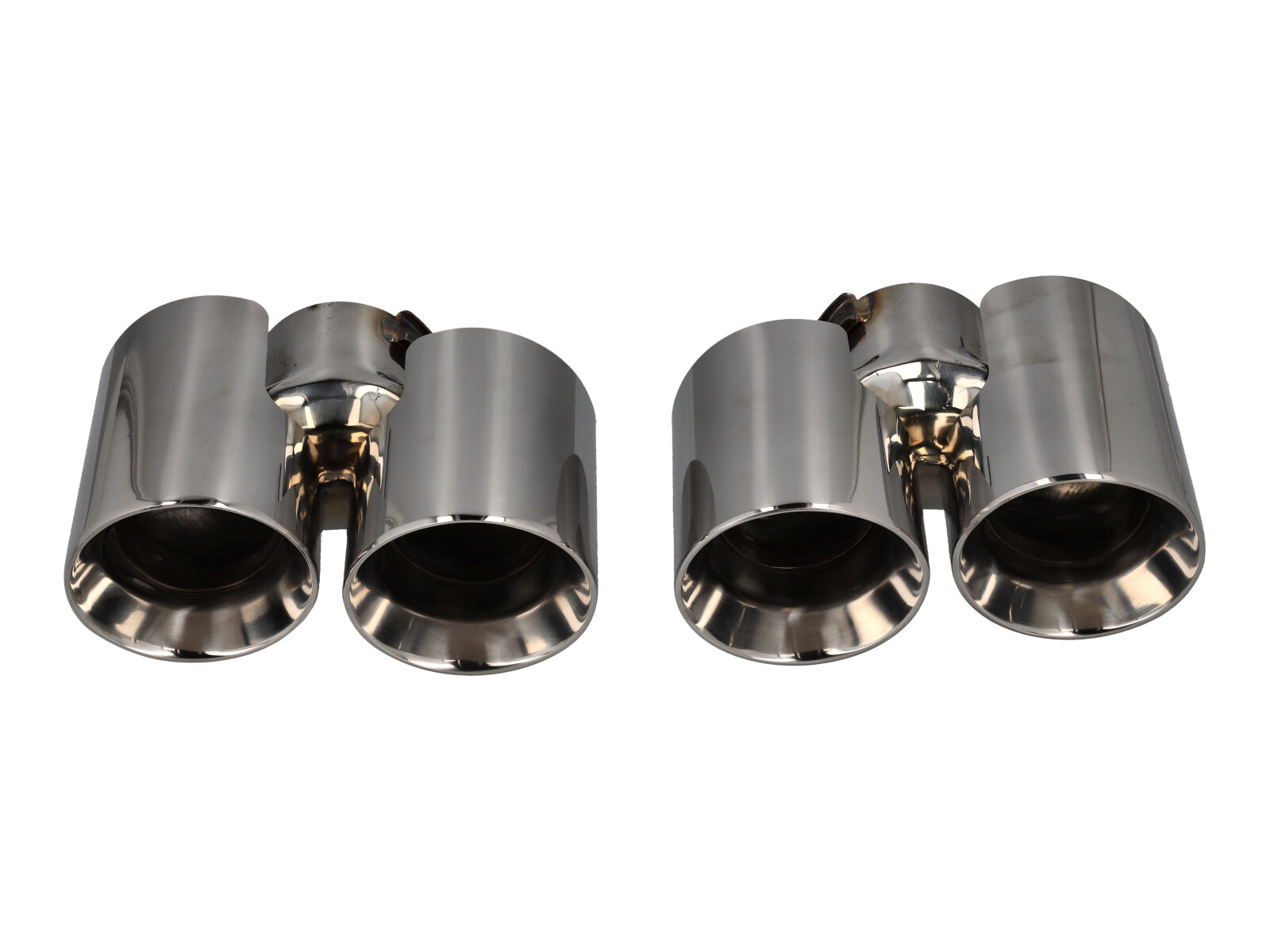

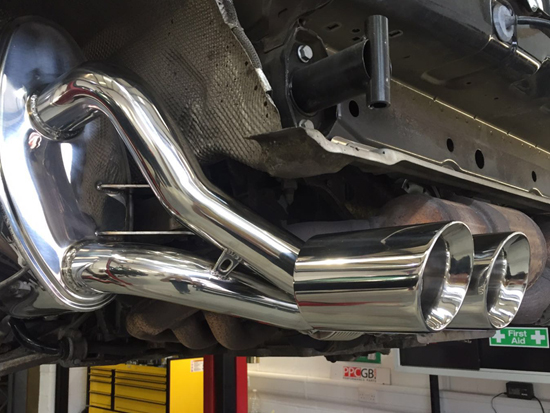

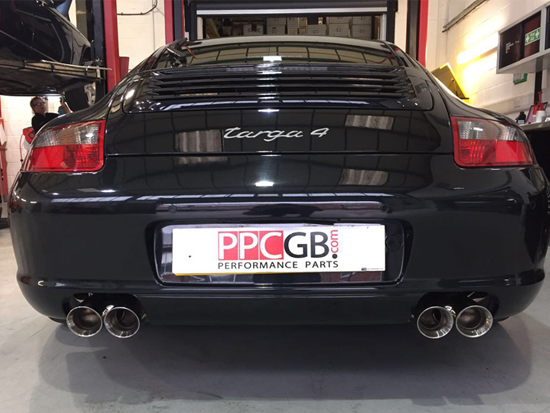

DesignTek Exhaust tail pipes twin.



Exhaust Tail pipes polished stainless steel. These tips offer a more aggressive look while maintaining a factory "S" style.

Stainless steel quad tail pipes.

Fits:
Porsche 997 Carrera 3.6L
Porsche 997 Carrera 3.8L

Price is for a PAIR
These tail pipes come with adaptor rings to fit 3.8L (2.25") and 3.6L (2") output flanges.
*Please note this product will not fit cars with factory sports exhaust PSE.

For Fitting Instructions CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606409703

The product you are viewing cross references to these numbers

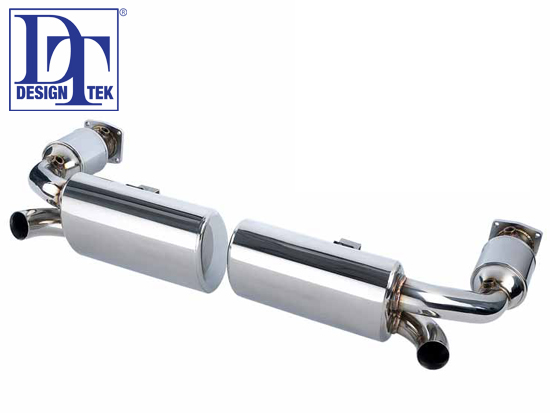

DesignTek Sports exhaust produced to give a great deep sports car super sound that every 996 turbo driver desire.



Fits:
Porsche 996 Turbo

*This product is fitted with 200 Cell sports cats and may require a ECU re-map when fitting.

DesignTek 996 Turbo Sport exhaust fitted with 200 cell sports high flow catalytic converters. The system is produced with high flow stainless steel tubing and fixed together with T316 Lsi welded joints. Each bend section is produced by automated CNC plasma cutting equipment and mandrel bending machinery to give the ultimate finish, flow and power.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009618

The product you are viewing cross references to these numbers

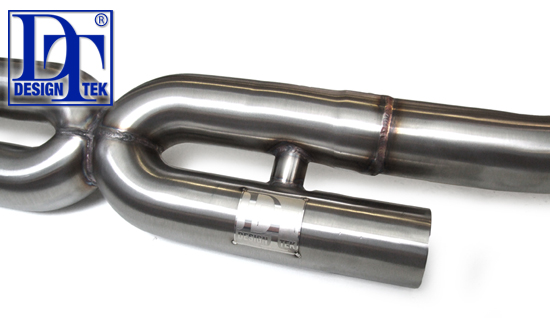

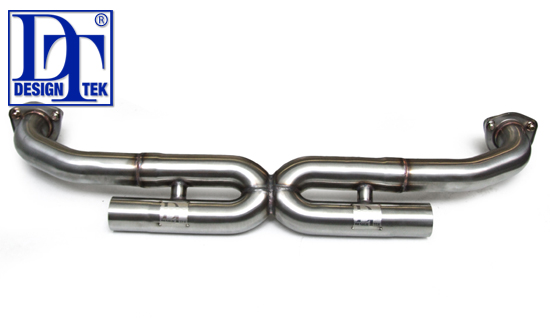

DesignTek X-Pipe (primary muffler bypass) deletes the stock primary muffler and saves 6.4 lbs. from the rear of the vehicle. With a fast air flow the X-pipe increases BHP and Toque.



Made from high quality T304 14-16 gauge stainless steel, C.N.C. mandrel bent. The X-Pipe (primary muffler bypass) gives a great exotic car sound and power by about 5 decibels.

Fits:
Porsche 997 MKII

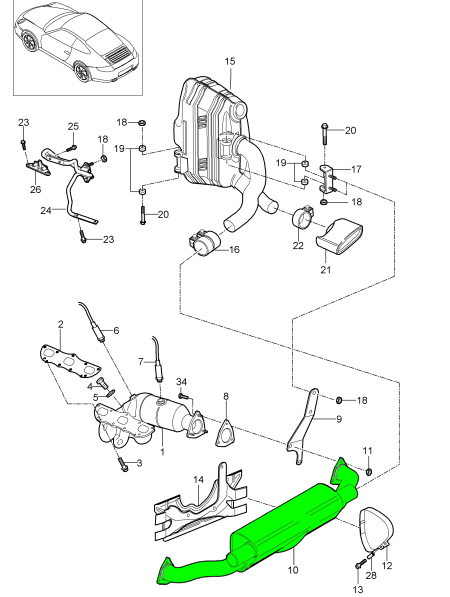

Click 'Zoom in' for large parts diagram.
3606009719 replace No 10.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009719

The product you are viewing cross references to these numbers

DesignTek Exhaust Muffler / Silencer Sports VALVETRONIC  (SET OF 2 Left & Right)



Fits:
Porsche 996 C2, C4, C2S, C4S 1997-2004
Porsche 996 GT3

DesignTek Valvetronic sports exhaust Made from high quality 14-16 gauge T304 stainless steel, hydro-formed muffler cases, radiuses stressed relieved with 2000 degree ceramic fiber and stainless steel wool packed free flow mufflers. The pipes coming off the rear box is made from SUS409. This Exhaust is around 95dbs +/- with the valves closed and around 102dbs +/- open and sounds much throatier.

This unique exhaust configures a dual-tone setup controlled by a key fob which you can switch on the fly. Direct replacement for the factory mufflers and will work with the stock catalytic converters or any aftermarket sport cats designed to fit with OEM exhaust systems

Superb sports car sound, throaty and deep with the valves opened, but docile with the valves closed. You can reuse your factory OEM Porsche tips or you can opt for DesignTek tail pipes

Please note the remote controlers do not come with batteries. You will have to source them at your own cost. The type is CR2025

Installation instructions for Valvetronic Mufflers CLICK HERE

For Wiring Diagram please CLICK HERE



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009614

The product you are viewing cross references to these numbers

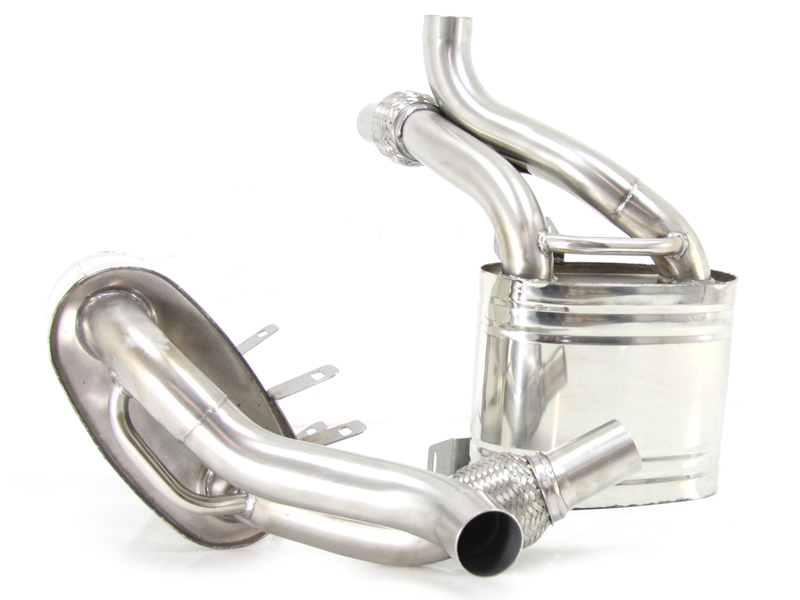

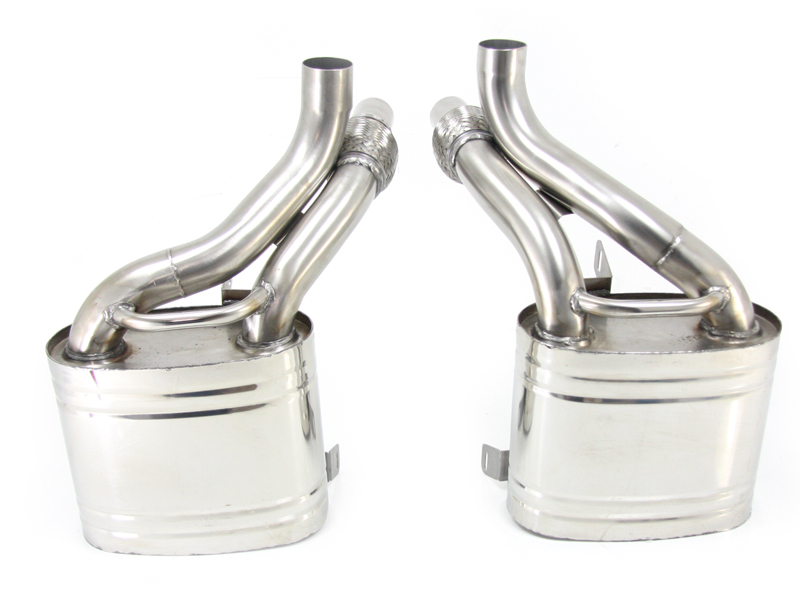

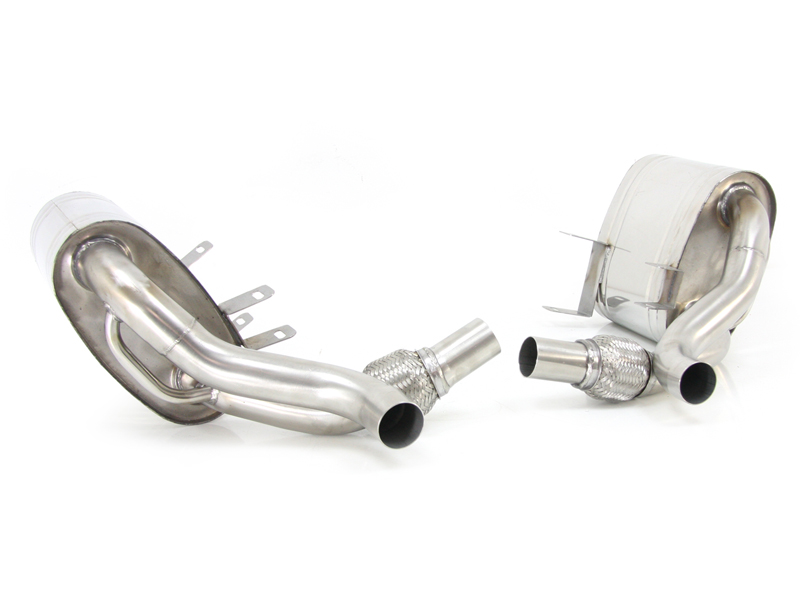

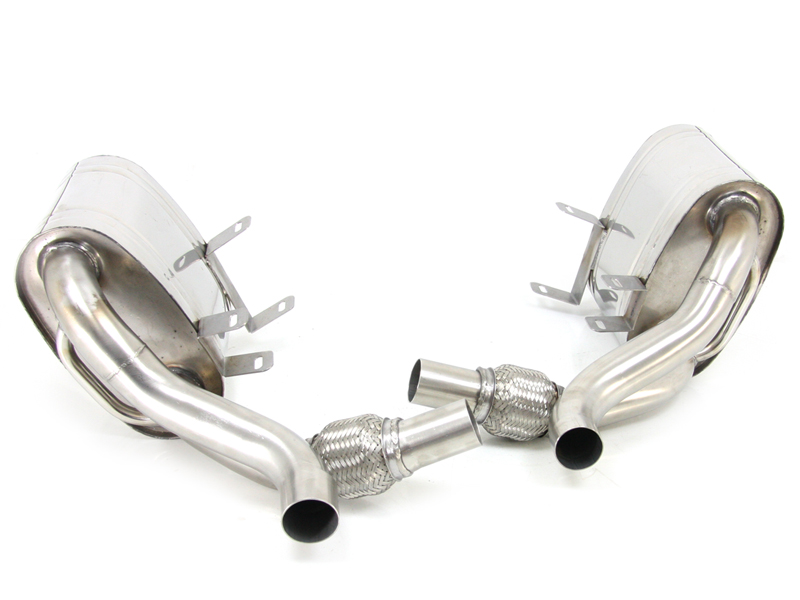

DesignTek Sports SUPREMACY system exhaust made from High Grade stainless steel.

Made in the UK


Fits:
Porsche 997 C2, C4, C2S, C4S

Please Note: For standard 997 3.6L models the factory tail pipe will not fit. Use 997 S tail pipes or after-market tail pipes.
Output flange 2.25" / 58mm

This sports exhaust set conveys the sound of power, presence and natural sporting presence the 911 needs. Built with a large diameter chamber bypass pipe the engine note changes with more aggressive throttle.

Made from 14 - 16 gauge T304SS, polished mirror finish, Designed to give an open throttle sound and more aggressive at medium and high speeds.

We also have a wide selection of stainless steel tail pipes.

Sound = deeper than the factory standard exhaust but not too loud

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3606009715

The product you are viewing cross references to these numbers

Wheel Spacers / Shims BLACK EDITION 5/130 for Porsche stud Pattern *DesignTek



Price is for a pair (fits one axle)

Available Sizes:
5mm Flat Shim
7mm Flat Shim
12mm Hub Centric (not for 968)
15mm Hub Centric (not for 968)
20mm Hub Centric (not for 968)

Wheel spacers move the wheel out from the hub, effectively widening the stance of the vehicle and lowering its roll centre. This simple modification increases lateral stability, which in turn provides improved handling, greater safety and of course, the sleek style you've been looking for.

Please note: You will need longer wheel bolts to accommodate the thickness of the wheel spacer Prices for the spacers are pairs
