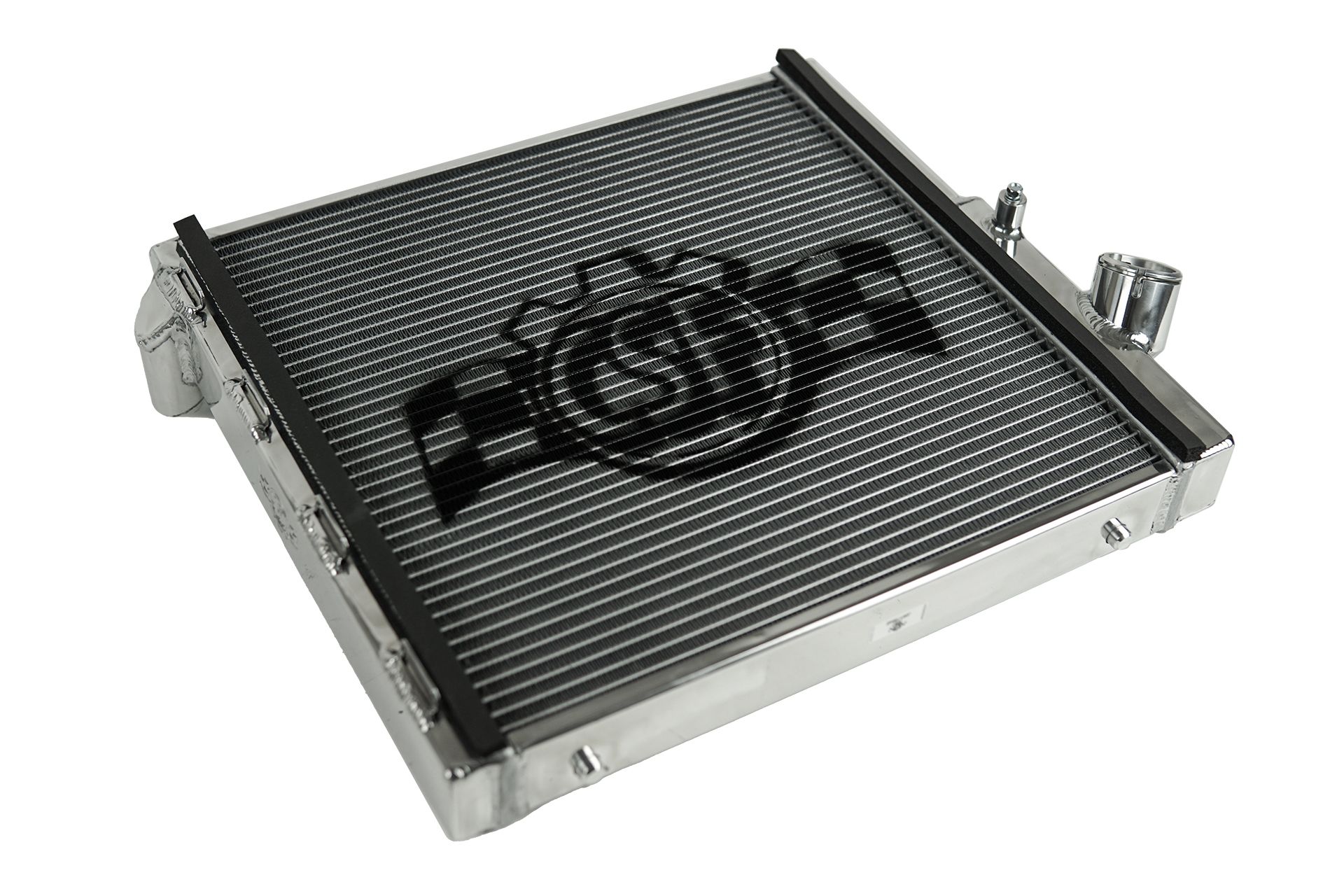

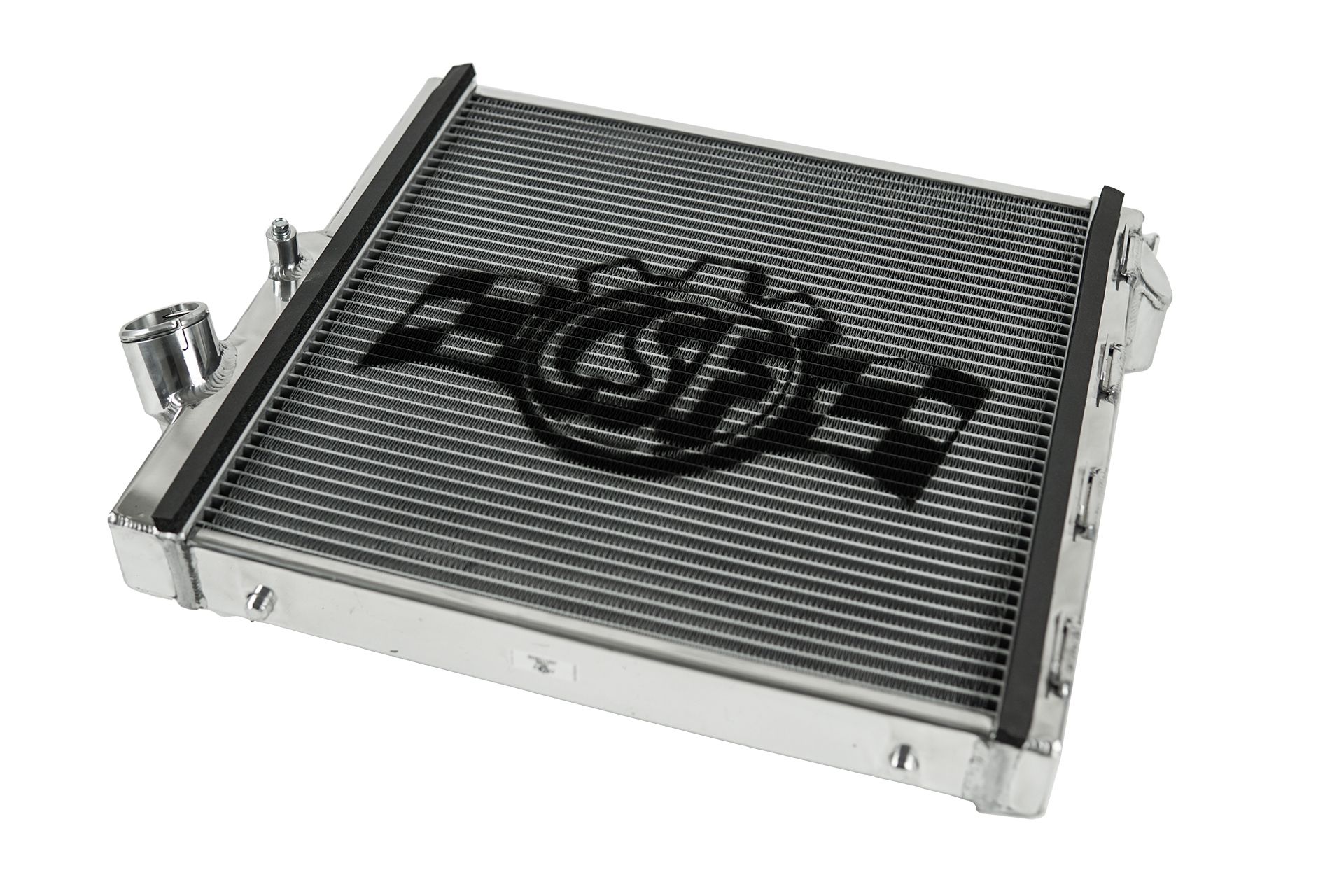

CSF

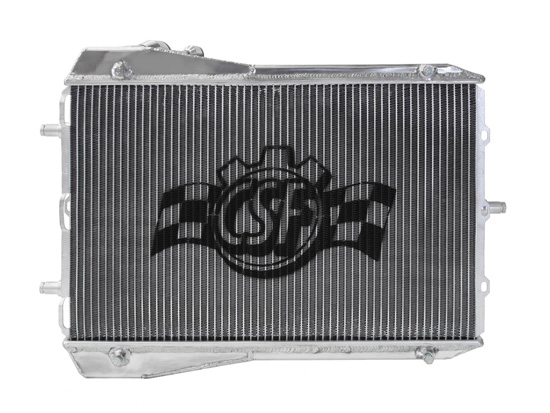

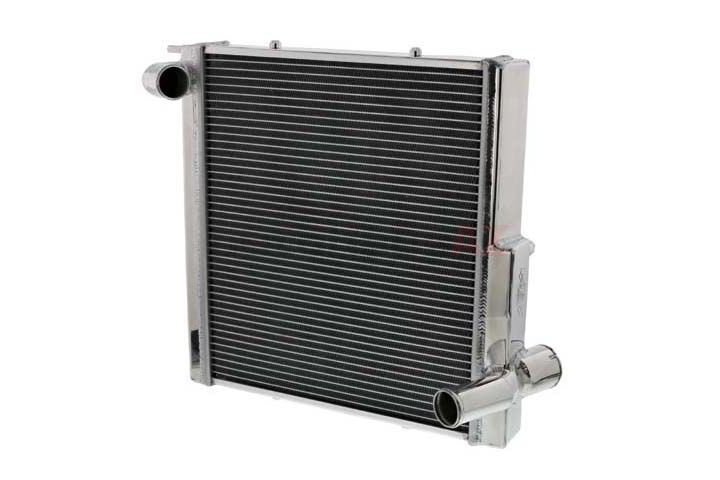

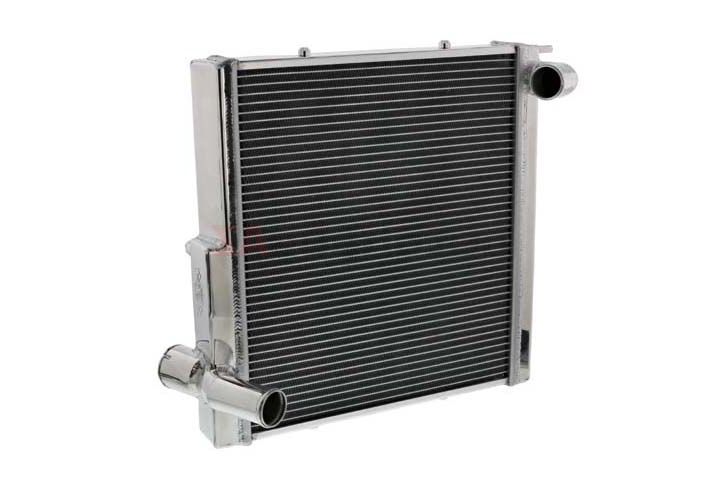

Racing and high performance radiators for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement

CSF strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. All-aluminium 100% TIG welded, CNC machined brackets, mounting pins and "Quick-Connect" inlet/outlet pipes,

• 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
• Core Features Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction

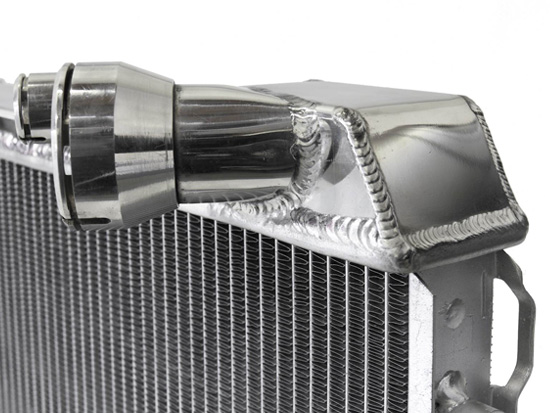

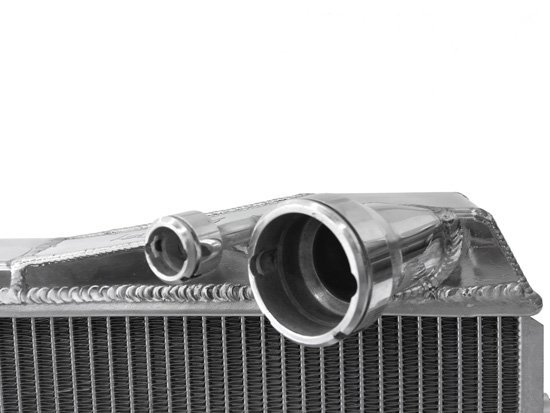

• CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
• Sealing Foam for Optimized Airflow Into the Core and Precise Fitment Into OEM Radiator Pods
• True "Drop-in Fit" Requires No Modifications to Install
• Individually Leak and Pressure Tested
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
• 1 Hour "Mirror Finish" Hand Polish
• 2 Year Limited Warranty

Fits
Porsche 991.2 Carrera
Porsche 991 GT2/RS
Porsche 991.2 GT3/RS/R
Porsche 718 Boxster
Porsche 718 Cayman
Porsche 718 GT4

• OEM #:
o Left: 9P1121251
o Right: 9P1121252

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

708

The product you are viewing cross references to these numbers

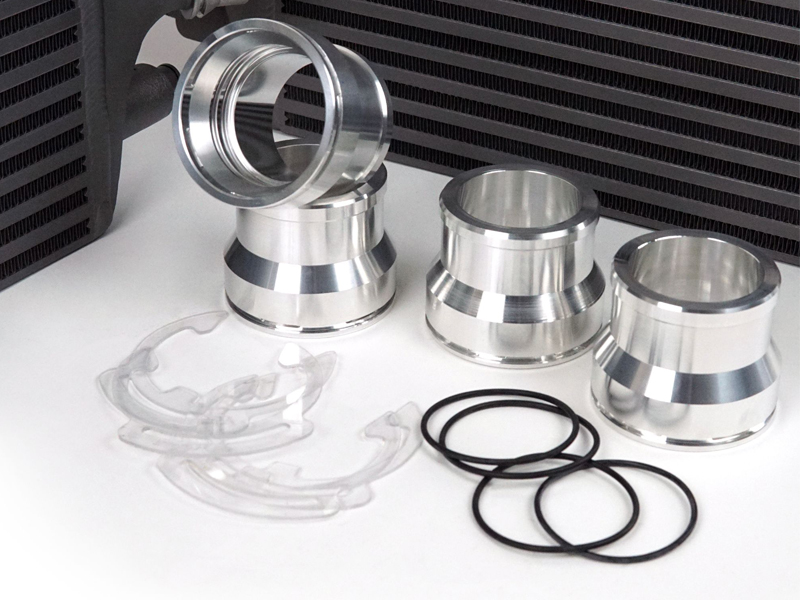

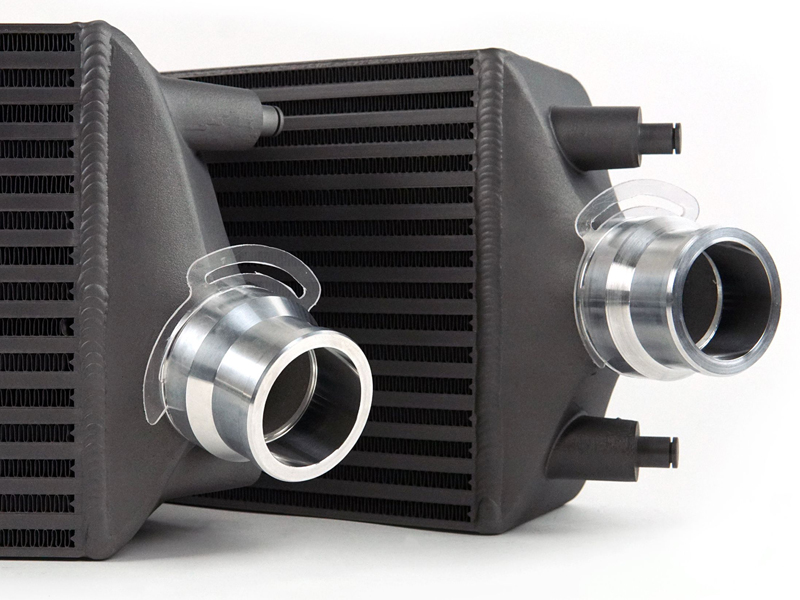

Intercooler fitting adapter kit (2 pieces)



The #1 Porsche intercoolers non with slip-on hose option for high horsepower & modified engines

• CNC machined billet 2.5" slip-on fitting adapters
• high-strength poly-carbonate retaining oem-style 'quick-connect' locking clip
• oil resistant o-ring seal
• 3D designed and manufactured int he USA
•

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8112A

The product you are viewing cross references to these numbers

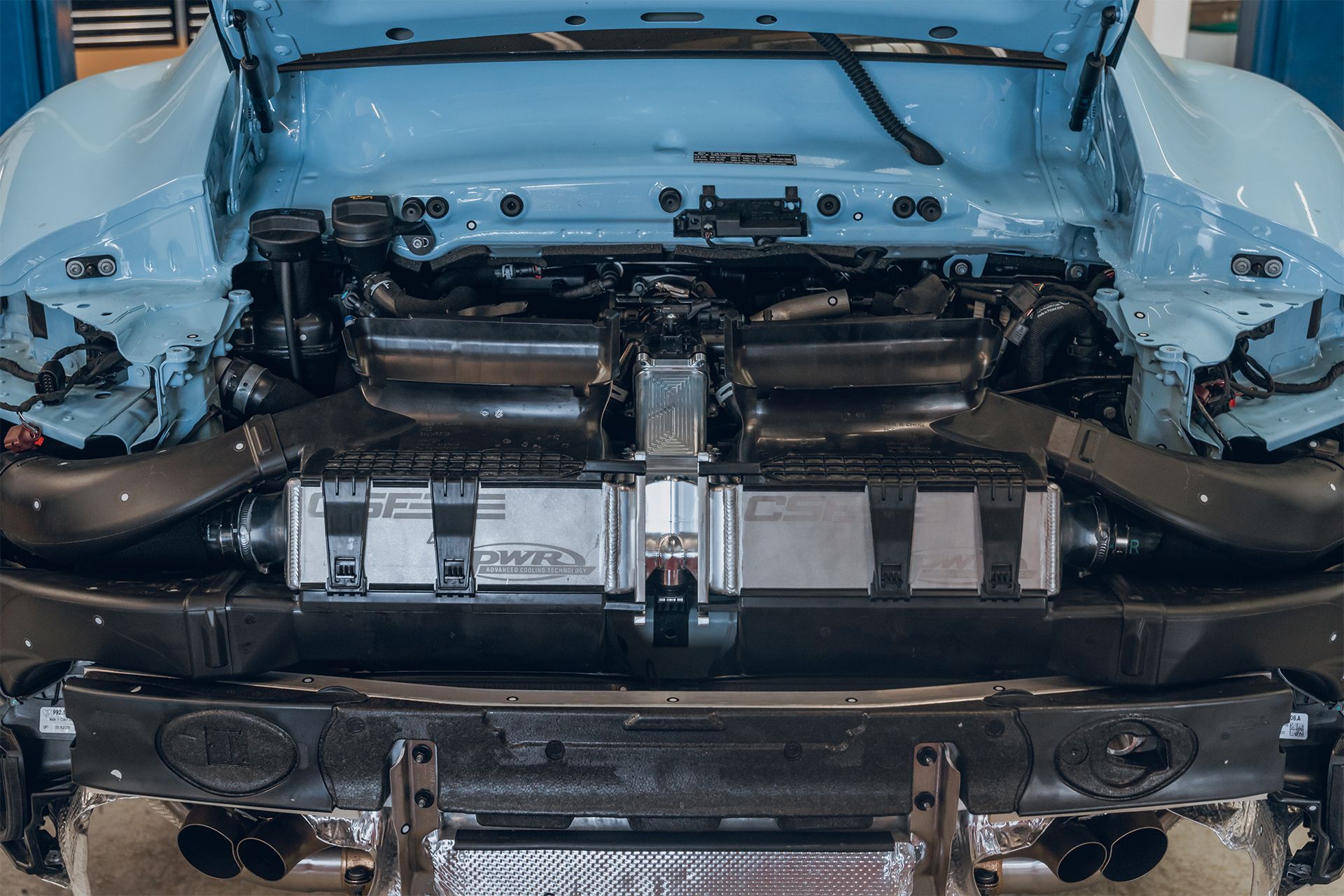

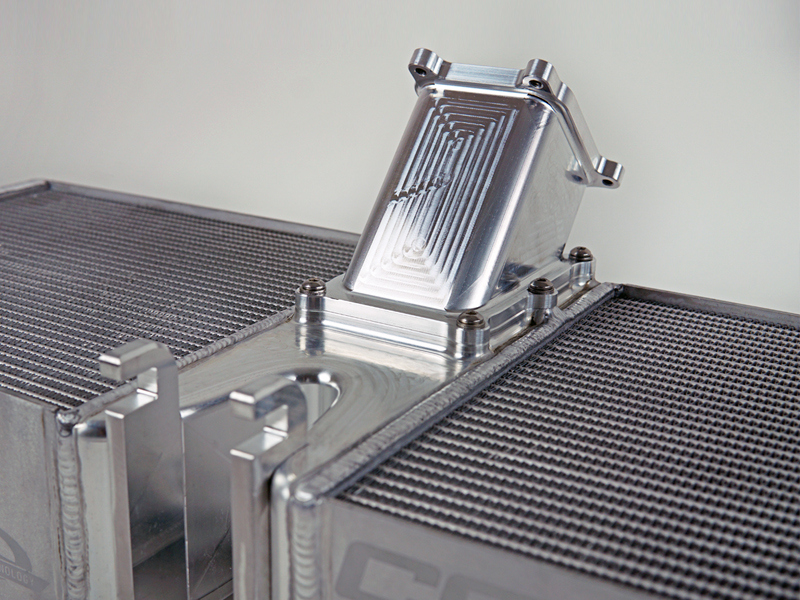

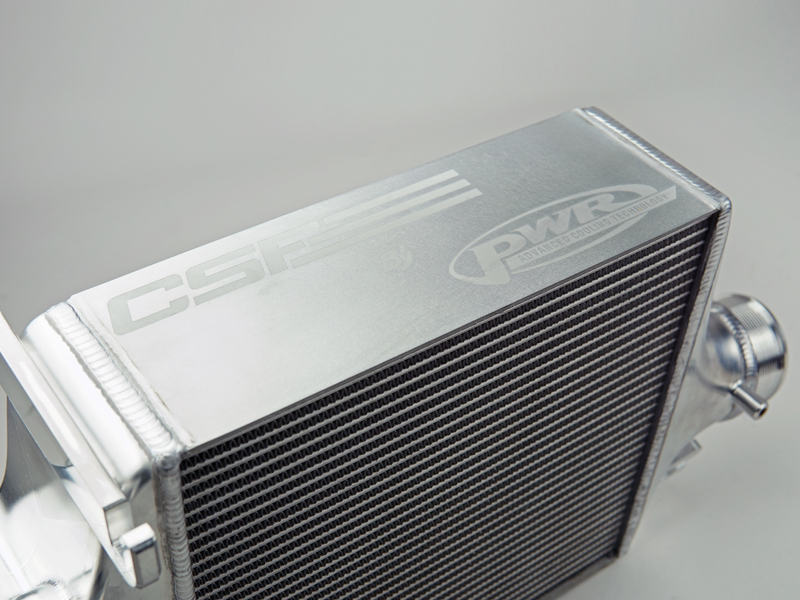

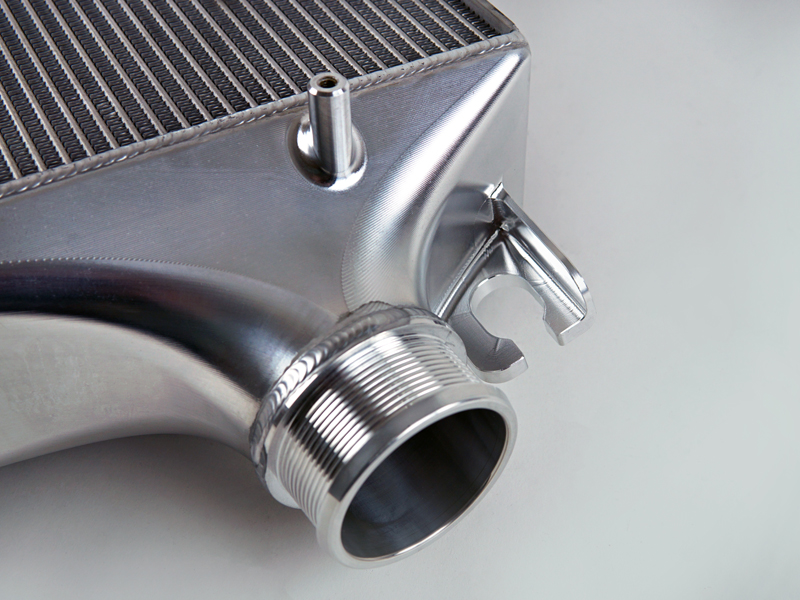

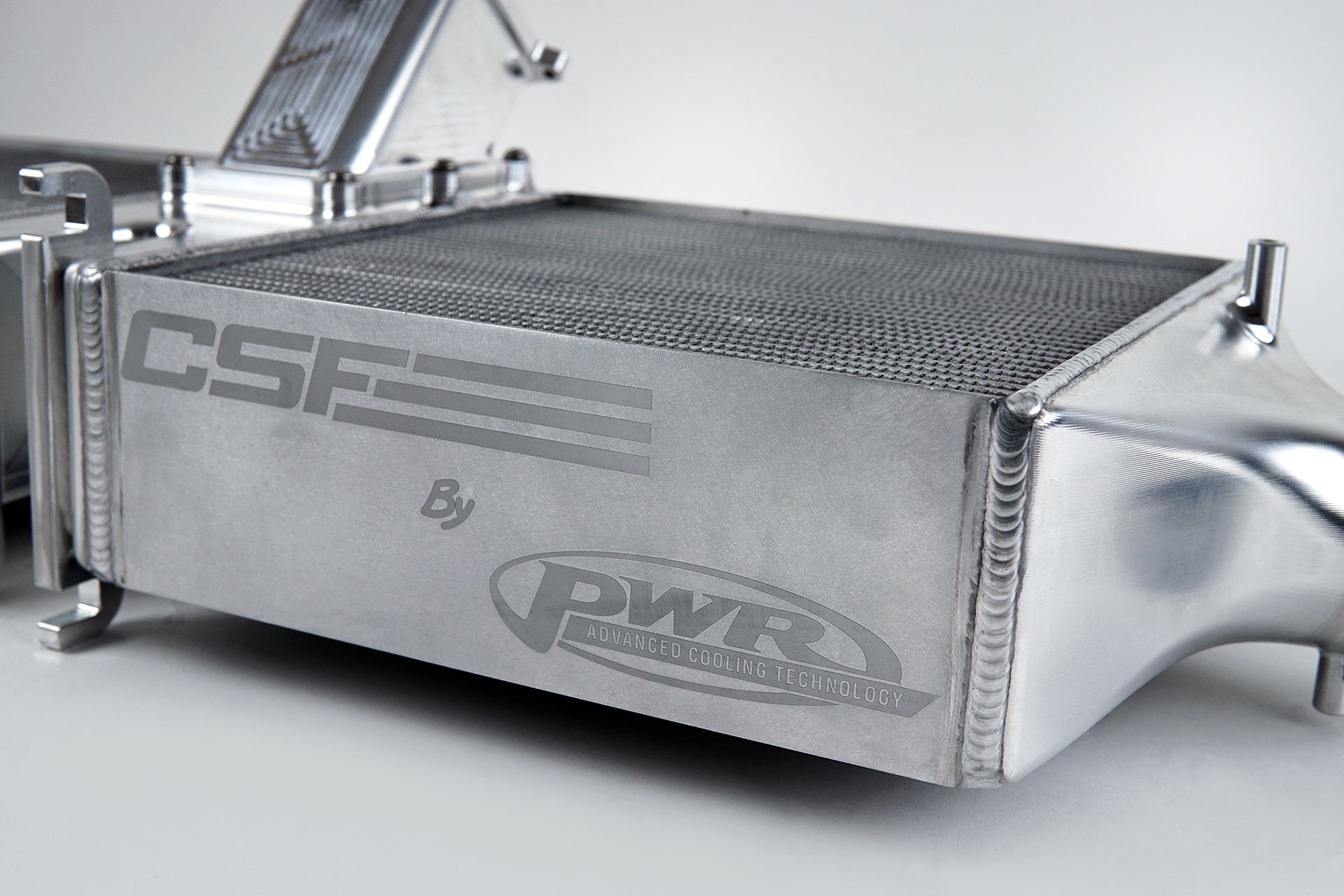

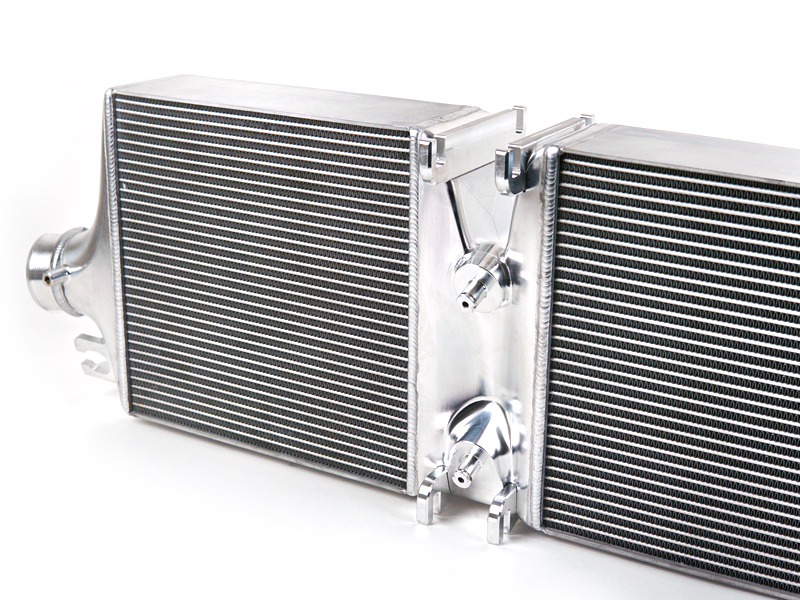

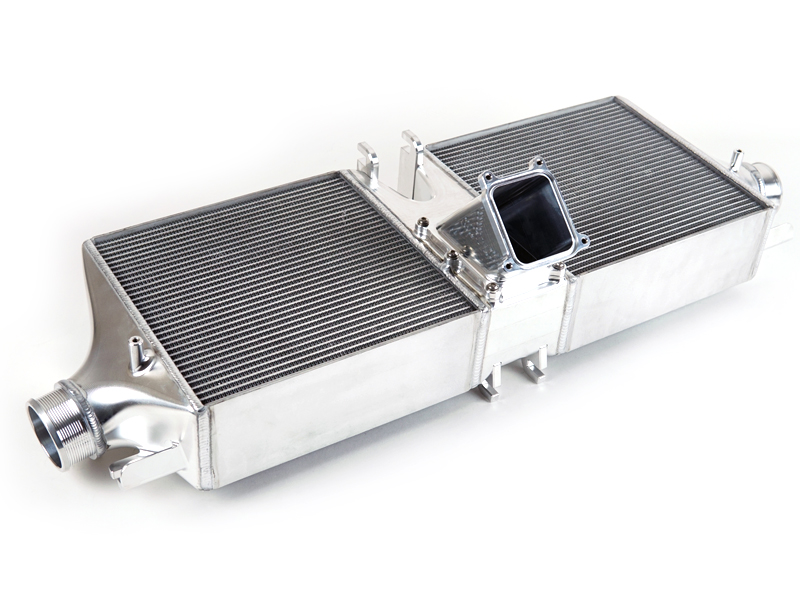

Aluminium intercooler system.



Fits:
Porsche 992 Turbo 2020>>
Porsche 992 Turbo S 2020>>
OEM # 992.145.805.G

• Eliminates Heat Soak and Lowers Intake Air Temperatures (IATs) for Maximum Performance in Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment

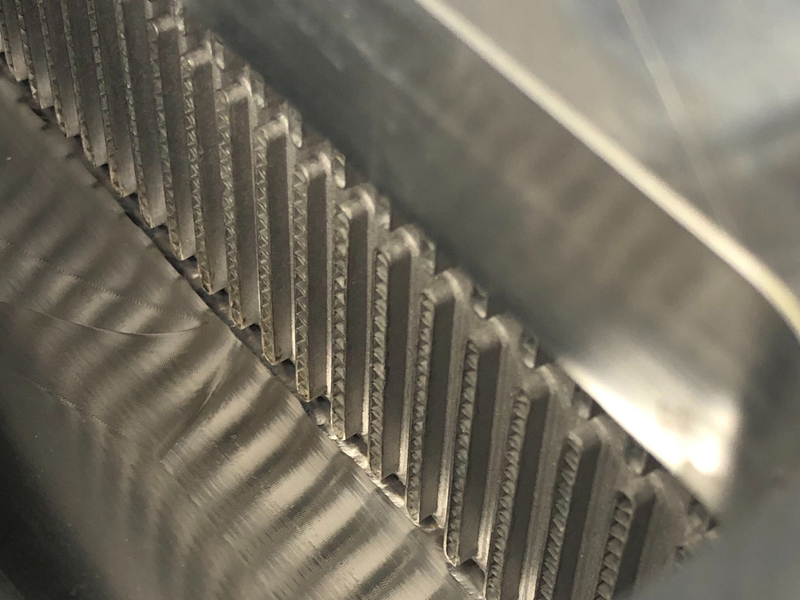

• Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)

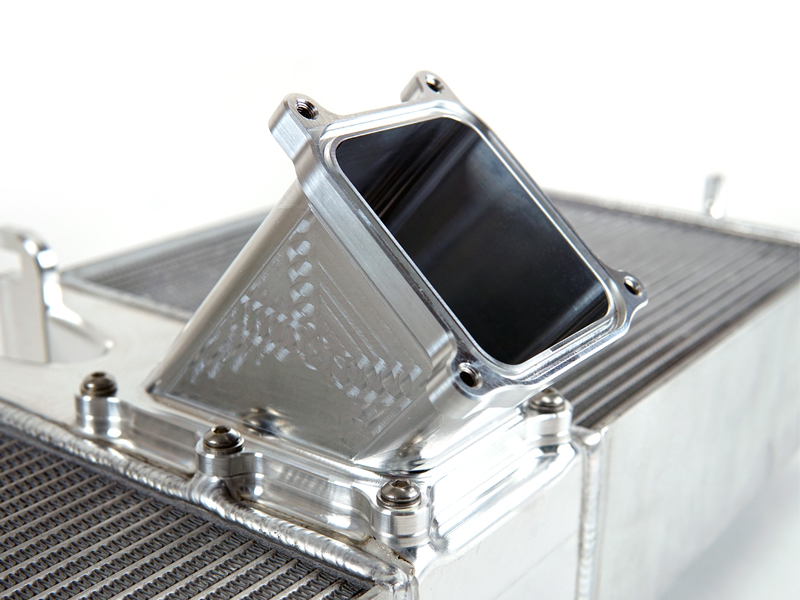

• CNC Machined Billet End Tanks With Integrated Machined Y-Pipe Connection to Throttle Body
• 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications
• OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components
• True Plug-and-Play "Drop-in Fit" Installation
• R&D and Performance Testing by Industry-Leading Porsche & McLaren Tuning Company, M Engineering
• Made in the USA at PWR North America

Cross reference numbers
992145805G

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8188

The product you are viewing cross references to these numbers

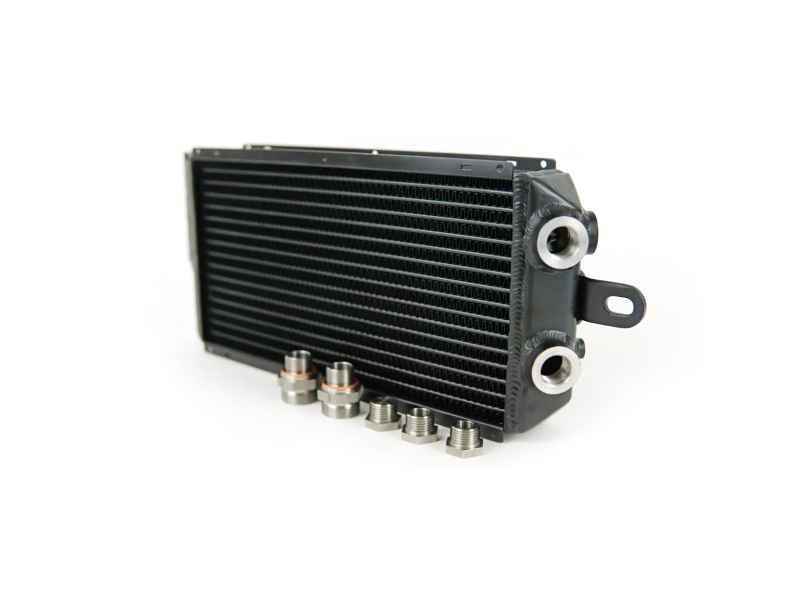

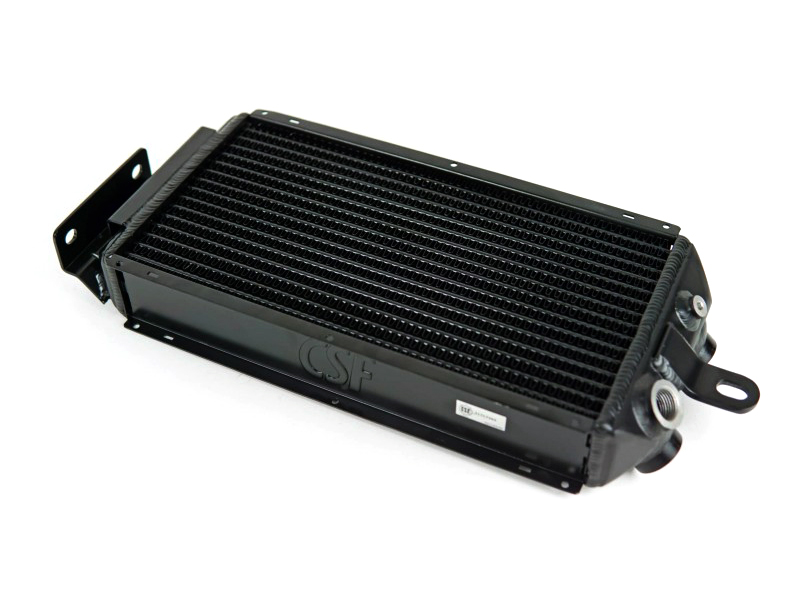

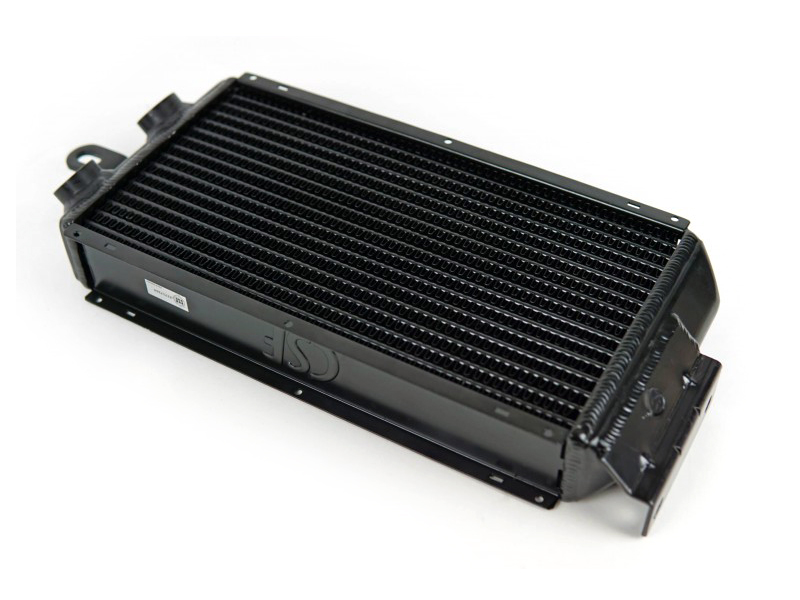

Radiator oil cooler, Front.
High-Performance Core Technology
50mm Core vs. OEM 45mm
15 Rows of Turbulated Tubes, 16 Rows of Fins (Same as OEM Spec)
Innovative Square Fin Design (Stronger, Better Performance, Less Clogging)
~10% Better Performance (Wind Tunnel Tested)
No Increase in Pressure Drop

Fits:
Porsche 911 3.2L / 3.0L 1984-89 - Direct Fit
Porsche 930 3.3L - Direct Fit
Porsche 911 / 930 1965 - 1983 Retrofit Capable

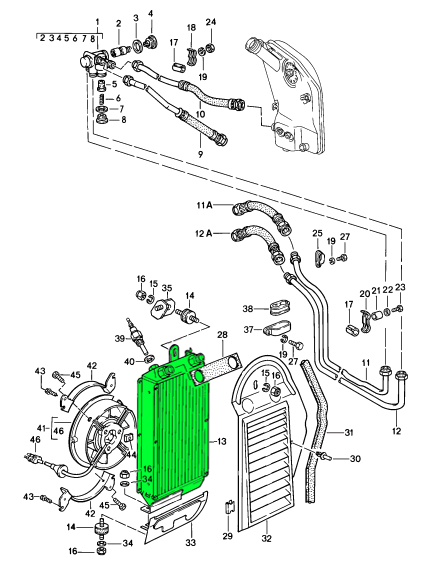

Diagram Ref No 13

Cross reference numbers
93020705302, 93020705304

CSF is proud to announce the release of its highly anticipated Porsche 911/930 Turbo right fender oil cooler. CSF's new release brings OEM tier-1 quality, innovative features, and value to the platform's replacement and performance aftermarket (directly replaces OEM part number 930 207 053 02 and 930 207 053 04).

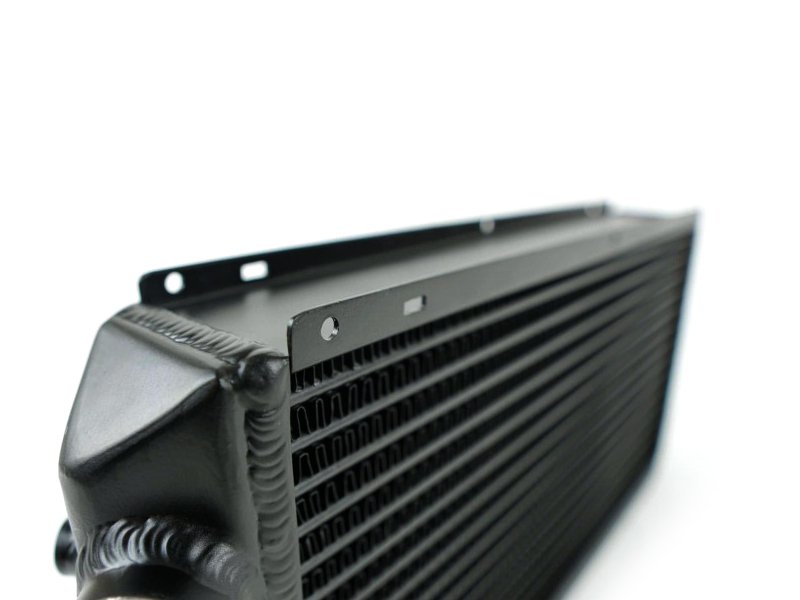

A close-up of the high-performance CSF core vs. a 35+ year old oil cooler that it is replacing. CSF's core has an innovative square fin design which helps alleviate clogging. It also increases performance and strength due to more surface area contact with the tubes.
M30 x 1.5 High-Flow Fittings
OEM Style, Machined In-House
17.5mm ID "Widemouth" Design vs. 14.5mm ID of the OEM Fittings
Stainless Steel w/ Copper Crush Washer for Increased Strength and Durability vs. OEM Mild Steel
Deeper Plunge for More Volume
50% Greater Flow Capacity for Maximum Performance
Comparison between CSF's high-flow fittings w/ 17.5mm ID widemouth design vs. the OEM 14.5mm ID design
M22 x 1.5 Inlet/Outlet Connections
Internal Radius for Maximum Flow
Optimized to Also Accept AN-16 Connections for Increased Versatility and Setup Configurations
CSF's M22 x 1.5 inlet/outlet feature improved internal radius connections for maximum flow of oil into and out of the oil cooler.

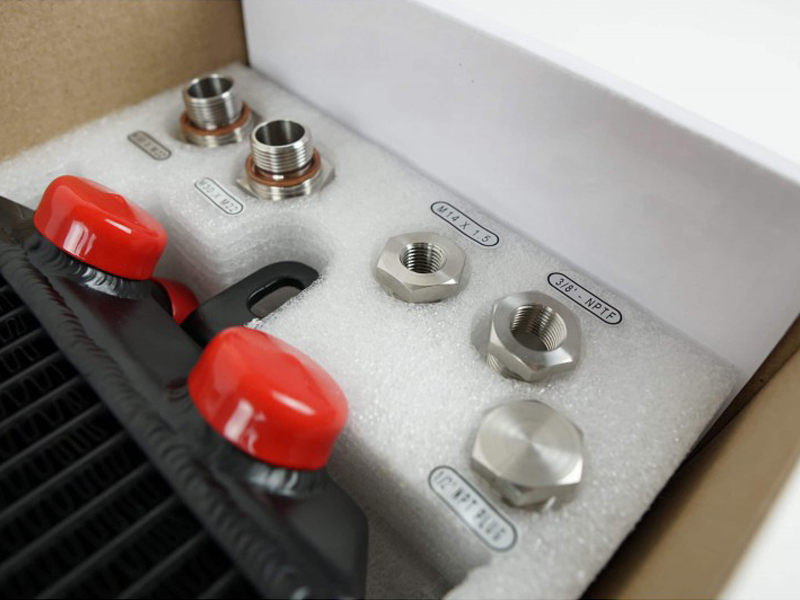

Temperature Sender Combination Mounting Boss
Three Fittings Included
Threaded Plug (For Use With No Fan)
M14 x 1.5P Adapter (For Use With OEM Fan)
3/8-18 NPTF Adapter (For Use With SPAL/Modern Fan)
1/2-14 NPTF design to accommodate the included three fittings

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020705304

The product you are viewing cross references to these numbers

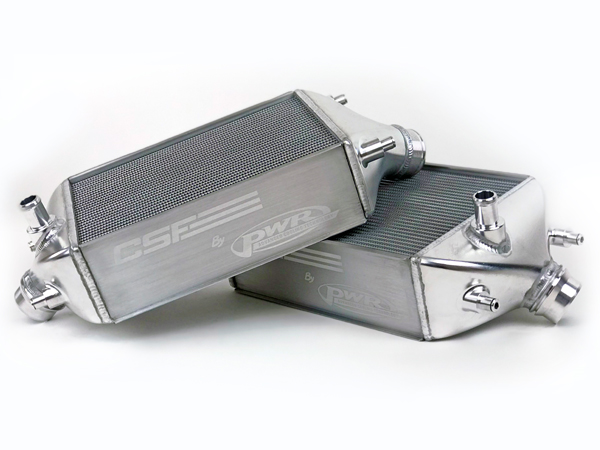

CSF High-performance intercoolers.

For a long time the only solution for a Porsche 991 GT2 RS intercooler upgrade was not an upgrade, but a band-aid for the stock 1990's style water spray system which sprays water from a reservoir in the frunk and onto the intercoolers. The band-aid was to install a larger capacity water tank which simply delayed the inevitable running out of water and output to be automatically limited by the factory ECU to try to keep the engine safe. Until you refilled the reservoir again it's likely your 991 GT2 RS would struggle with charge temps and limited output.

Experts in cooling CSF and PWR have joined operations to deliver a High-Performance Intercooler Upgrade for the 991 GT2 RS which eliminates heat soak and lowers charge air temps on stock, tuned and tracked cars. CSF achieves this by using an F1 performance grade core which dramatically improves the efficiency of the intercoolers within the same space constraints.

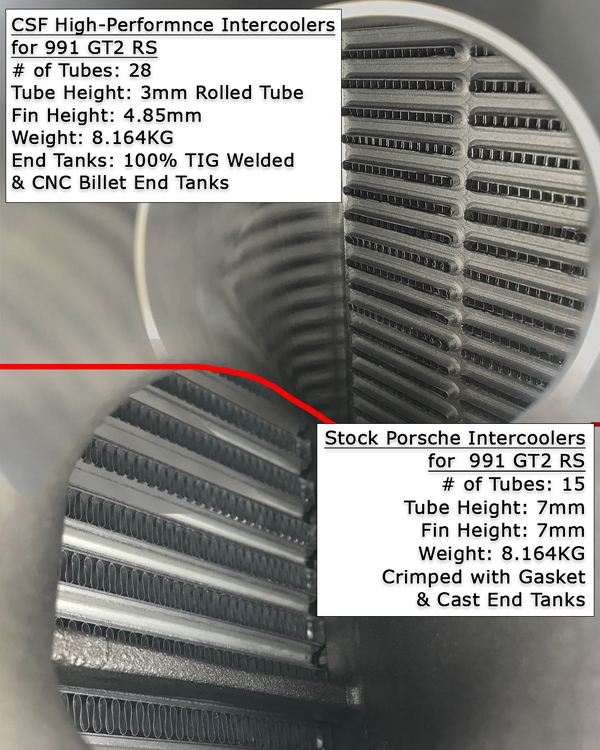

The CSF High-Performance Intercoolers for the GT2 RS boasts 13 more cooling rows than the stock intercooler, boasting 28 rows in total vs. the stock 15. The tube height and fin height is also maximised with the CSF core boasting a dual-row 3mm rolled tube vs. the factory 7mm height and the CSF core uses a fin height of 4.85mm vs. the factory 7mm. As you can see, the CSF core maximises performance in every area.

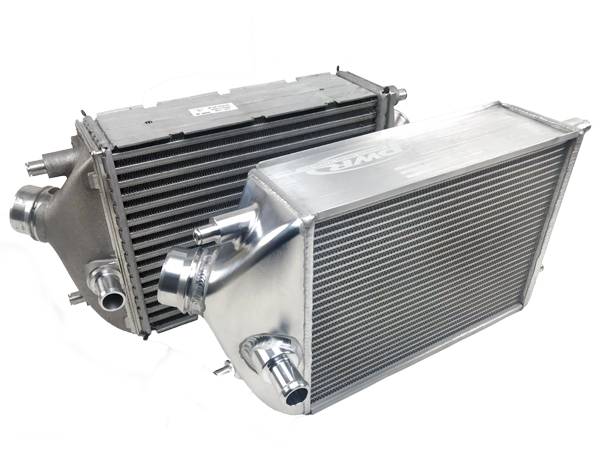

The differences don't just end in performance. The CSF High-Performance Intercoolers for the GT2 RS also boast reliability and durability improvements. Customer feedback has reported numerous failures with the standard end-tanks which uses an un-secure and failure-prone crimped and gasketed mechanism which can leak over time with numerous boost cycles and increased boost pressure with tuned cars, whereas the CSF High-Performance Intercoolers for the GT2 RS is 100% TIG welded for maximum reliability and durability.

Stock Porsche Intercooler Specification :
• Numbers of Tubes = 15
• Tube Height = 7mm
• Fin Height = 7mm
• Weight = 8.146KG
• Cast End Tanks, Crimped with Gaskets

Cross reference numbers
99111064073, 99111063973

CSF High Performance GT2 RS Intercooler Specification:
• Numbers of Tubes = 28
• Tube Height = 3mm Rolled Tube
• Fin Height = 4.85mm
• Weight = 8.146KG
• Billet End Tanks with TIG Welding

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8166

The product you are viewing cross references to these numbers

Universal single-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
M22 x 1.5 connections - 24'L X 5.75'H X 2.16'W



RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units!

Product Features:

• Heavy duty bar/plate core
• New Aero-flow bar design for low mass, strength and maximum airflow through the core
• Satin Black finish for protection against corrosion and debris
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Slight 15 degree angle for connections (M22x1.5 female) with tapered, cast end-tanks
• 609mm Length x 54.6mm Width x 146mm Height

Cross reference numbers
91110705101

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8111

The product you are viewing cross references to these numbers

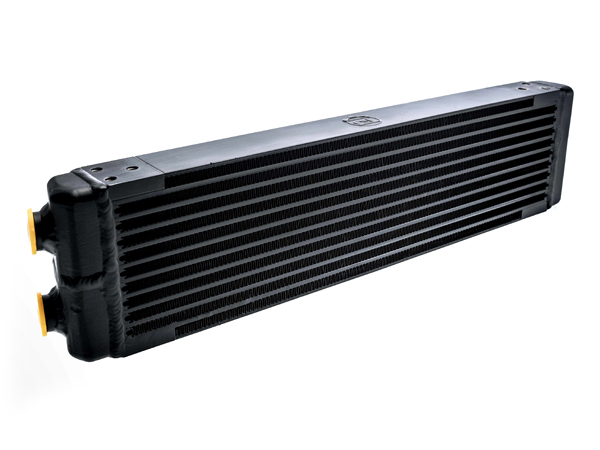

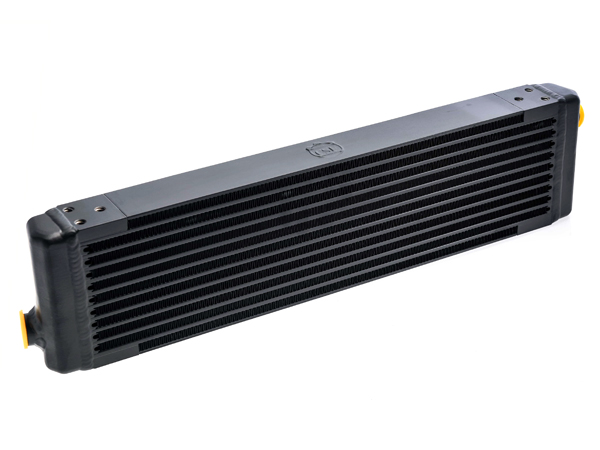

Universal dual-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
M22 x 1.5 connections - 24'L X 5.75'H X 2.16'W



RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units!

Product Features

• Heavy duty bar/plate core
• New Aero-flow bar design for low mass, strength and maximum airflow through the core
• Satin Black finish for protection against corrosion and debris
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Slight 15 degree angle for connections (M22x1.5 female) with tapered, cast end-tanks
• 609mm Length x 54.6mm Width x 146mm Height

Cross reference numbers
91110705101

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8110

The product you are viewing cross references to these numbers

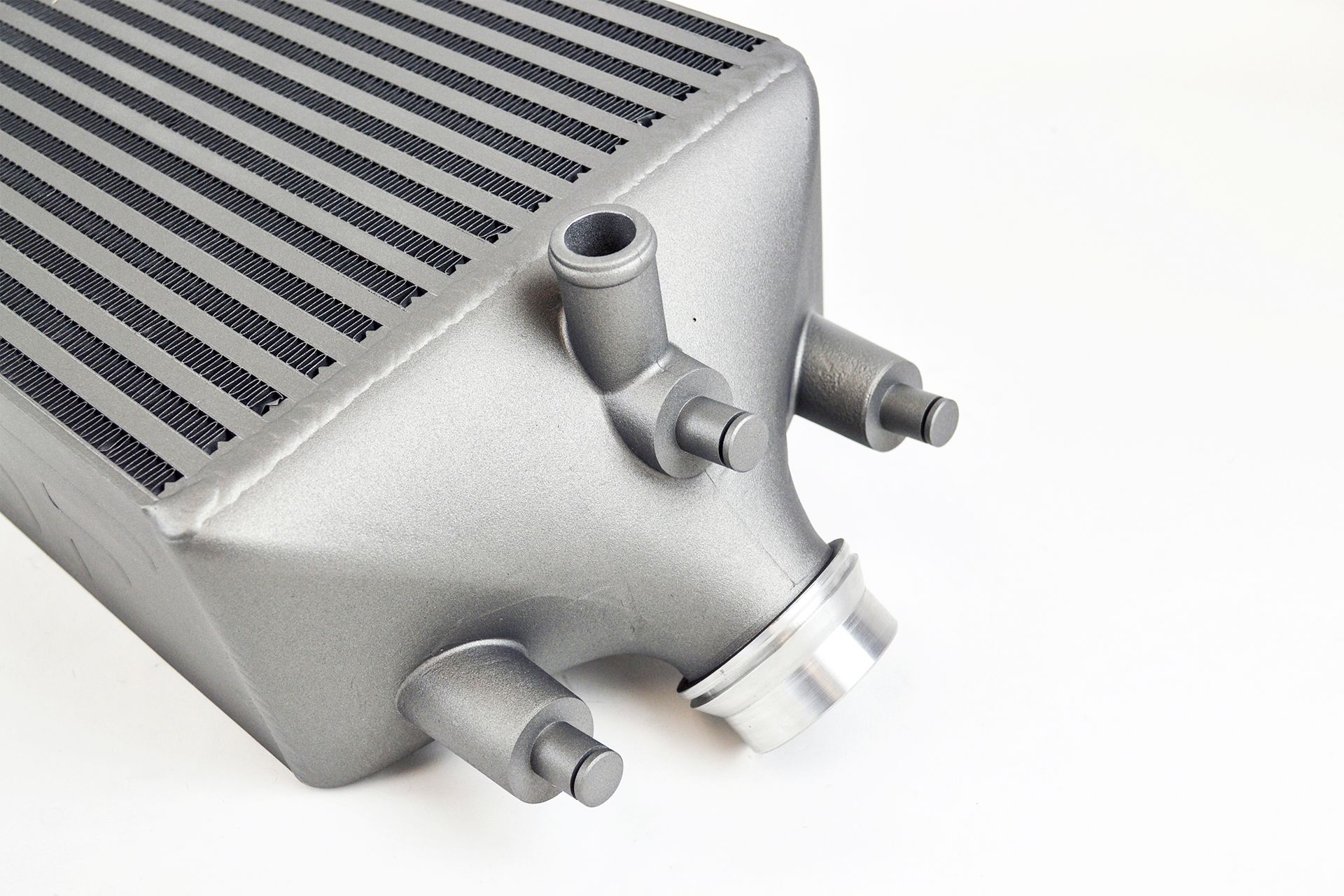

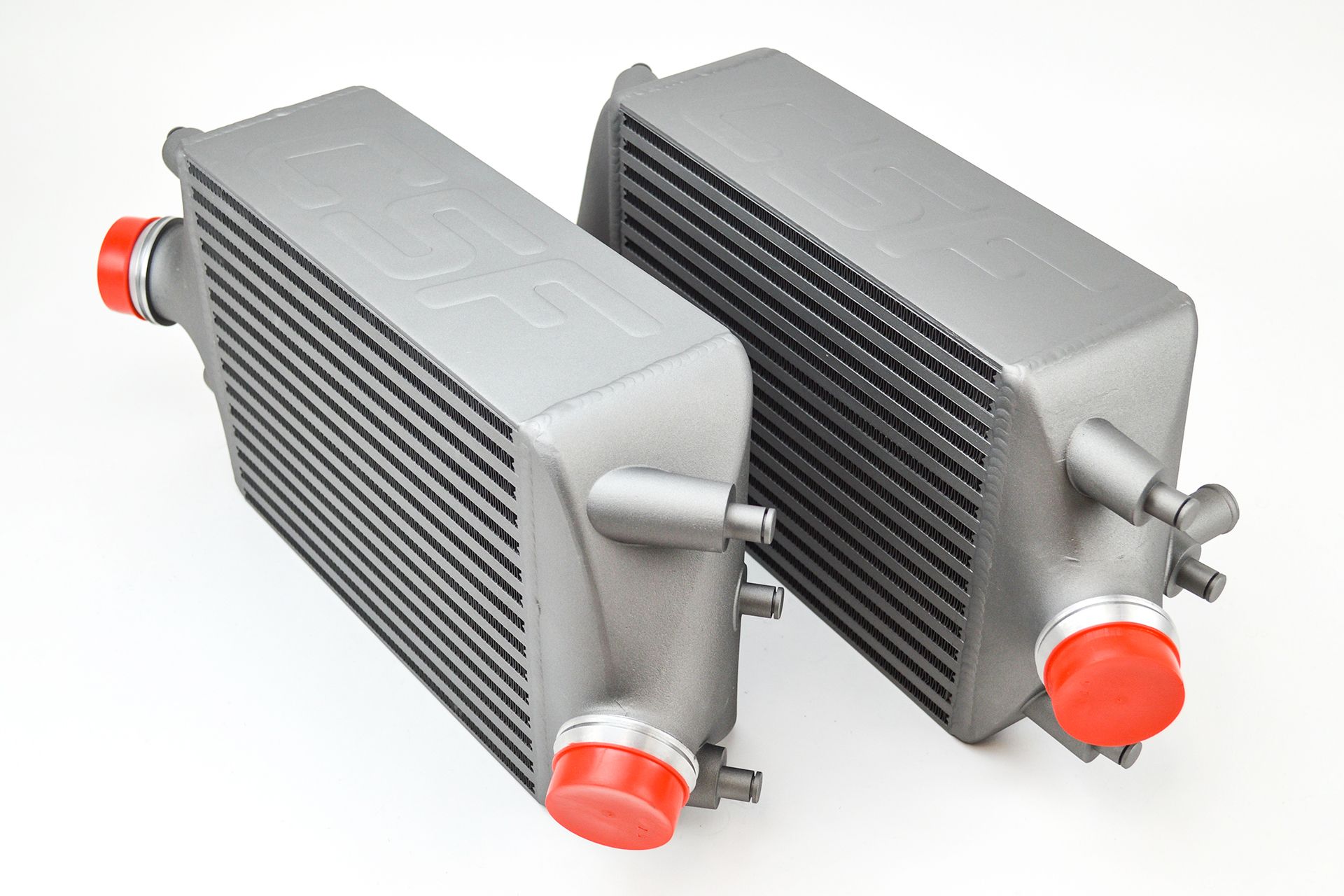

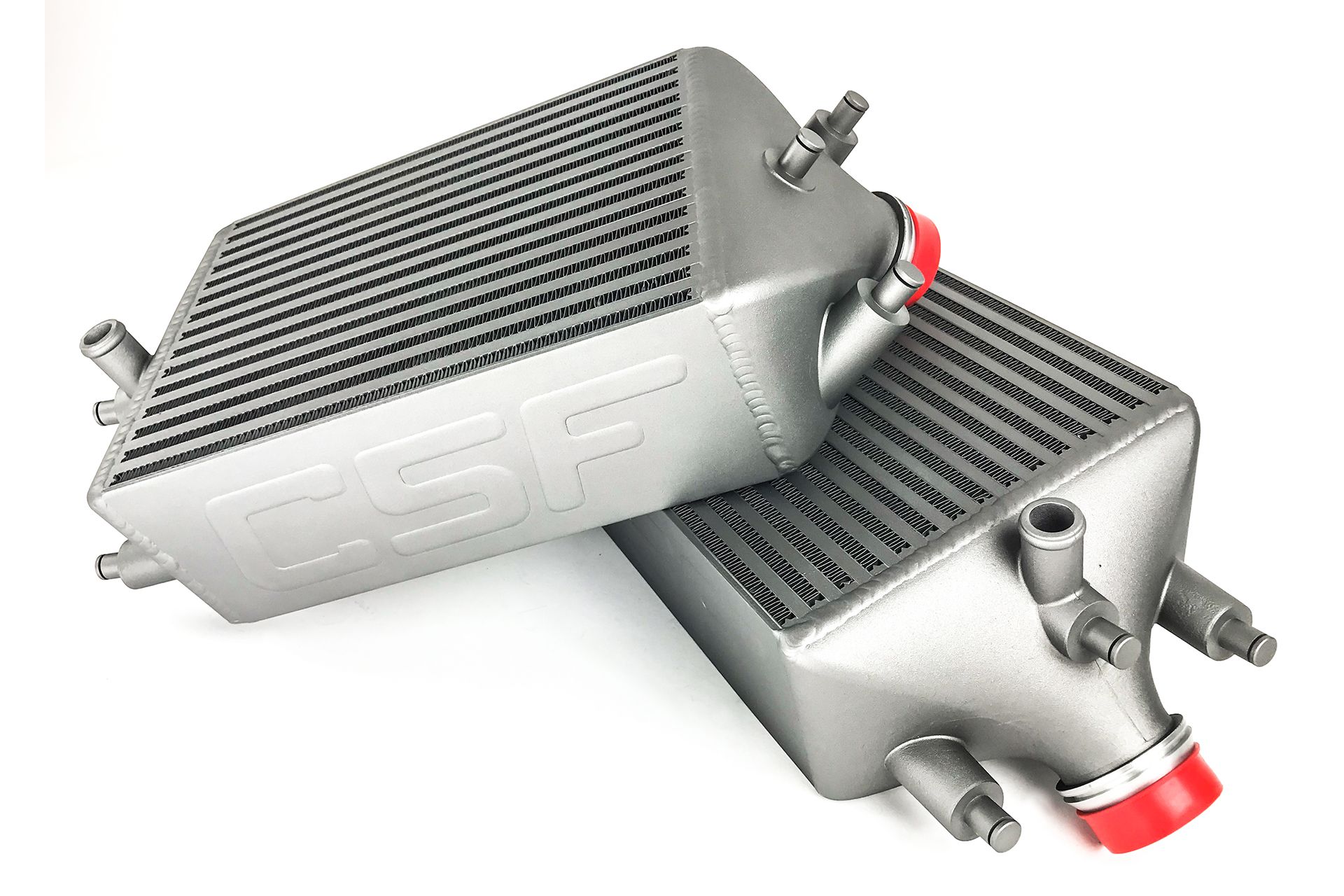

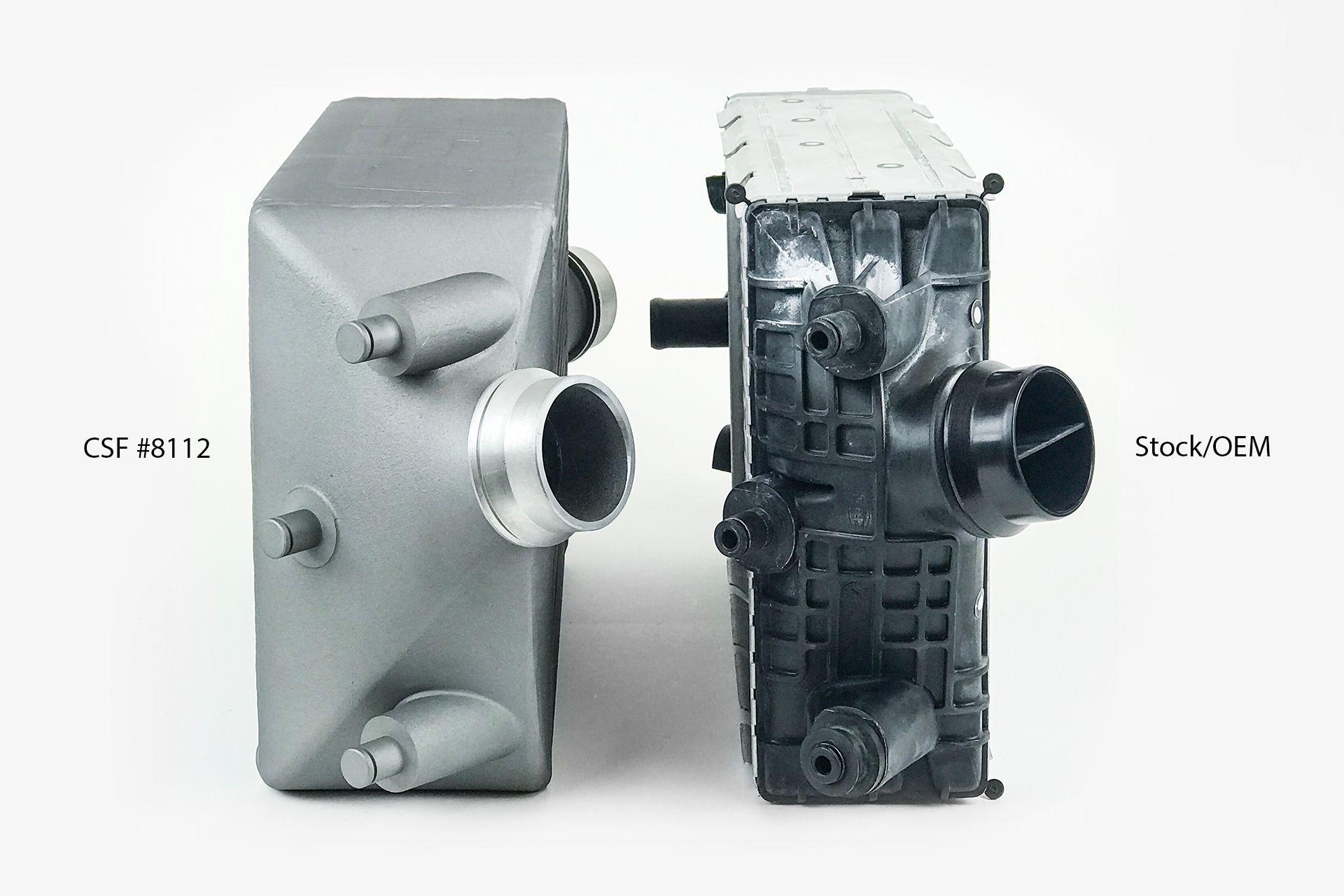

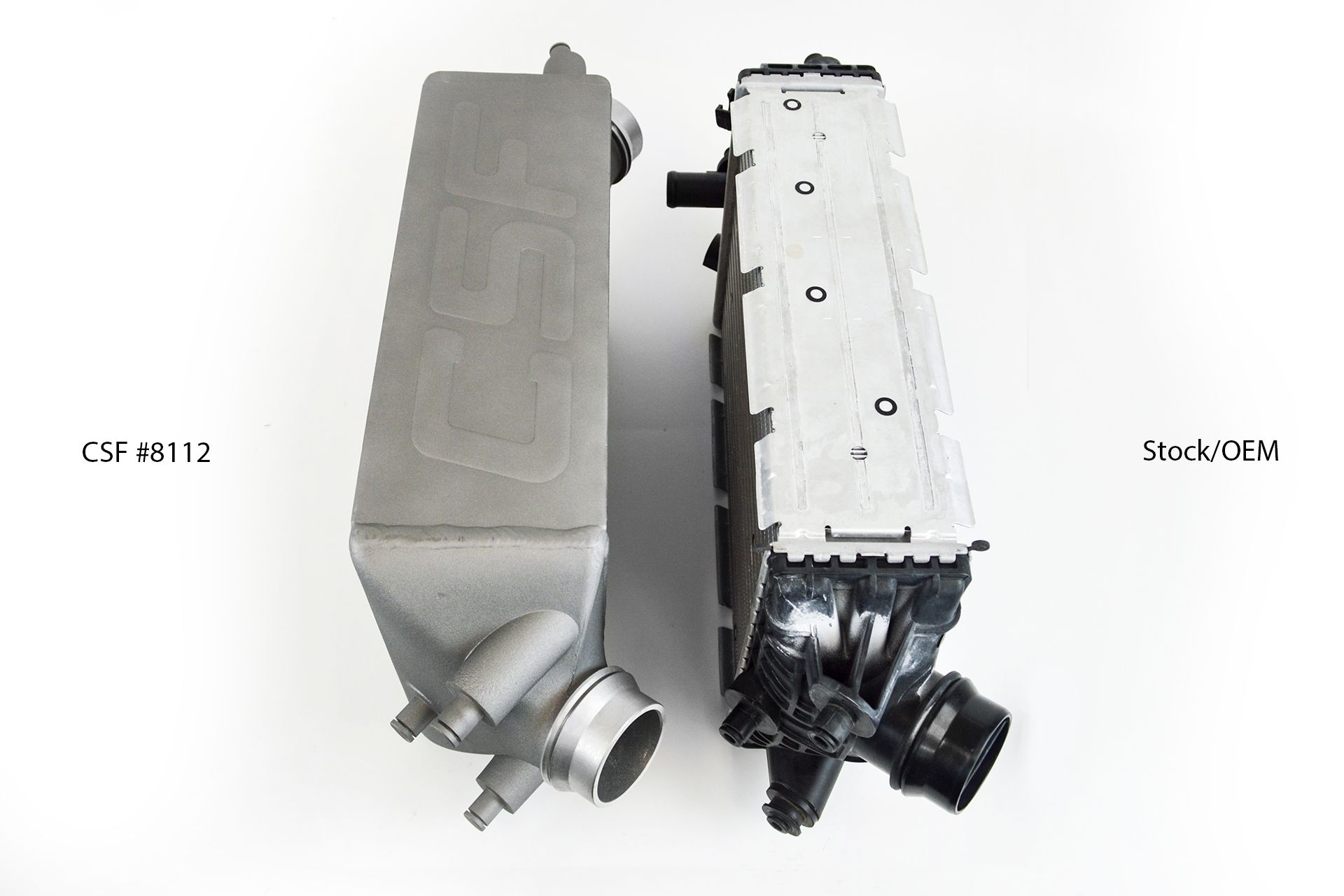

Racing and high performance intercoolers for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement.

CSF Cooling is proud to announce the official public release of its Porsche 991 Turbo & Turbo S high performance intercoolers for both 991.1 & 991.2 models.

CSF's Porsche 991 Turbo intercoolers have been race-tested, logged, and fully validated by some of the world's best Porsche tuners. These intercoolers have been regarded as the "Go-To" option for the best performance and value available in the performance aftermarket.


SPECIFICATIONS
• Fits both 991.1 & 991.2 Turbo/Turbos S vehicles. (2013-2019)
• 3D Scanned, CAD Designed and 3D-printed prototype; Tested in collaboration with automotive engineering firm RK Autowerks. Providing the absolute best fitting Porsche 991 Turbo intercoolers available in the aftermarket.
• CFD tested (Computational Fluid Dynamics) cast end tanks with several post machining processes for the absolute best tolerance specifications and maximum airflow distribution throughout the core.
• All OEM mounting points are retained with the OEM clip-in hardware design. Utilizing factory hardware, for an OEM-level installation. (CSF Exclusive)
• OEM style "Quick-Connect" machined fittings for precise fitment, lock and seal.
• Finished with an aerospace grade, nano-particle, heat dispersion coating that dissipates heat ~35% better than uncoated raw aluminum. (~ $500.00 value)
• "Drop-in fitment", no modifications or grinding to metal brackets, etc.
• (Requires slight trimming to the plastic intercooler shrouds)
• Individually leak / pressure tested to 120 PSI
• Individually inspected for quality control
• Instruction manual included CLICK HERE TO DOWNLOAD
• Specifically cut foam protective packaging to ensure damage free shipment
• Manufactured completely in house by CSF; a tier 1 OEM manufacturer with over 50 years of cooling system manufacturing experience. Over 500,000 units sold every year and over 40 million units sold globally.

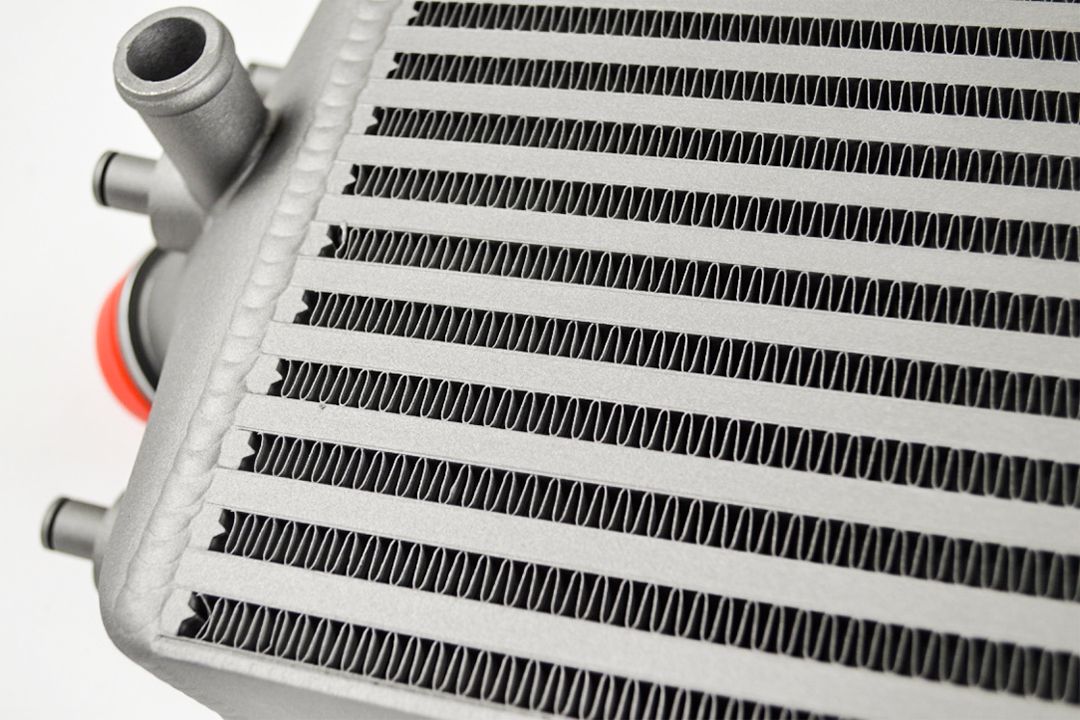

CORE DESIGN
• 8mm fin height louvered external fin with 6.5mm fin height staggered internal fin. Designed to maximize surface area contact and heat dissipation.
• Wind tunnel optimized and dyno tested for low pressure drop with best performance
• CSF's "Ultimate-Boost" High-performance bar / plate core. Built in house and pressure tested to 120 PSI

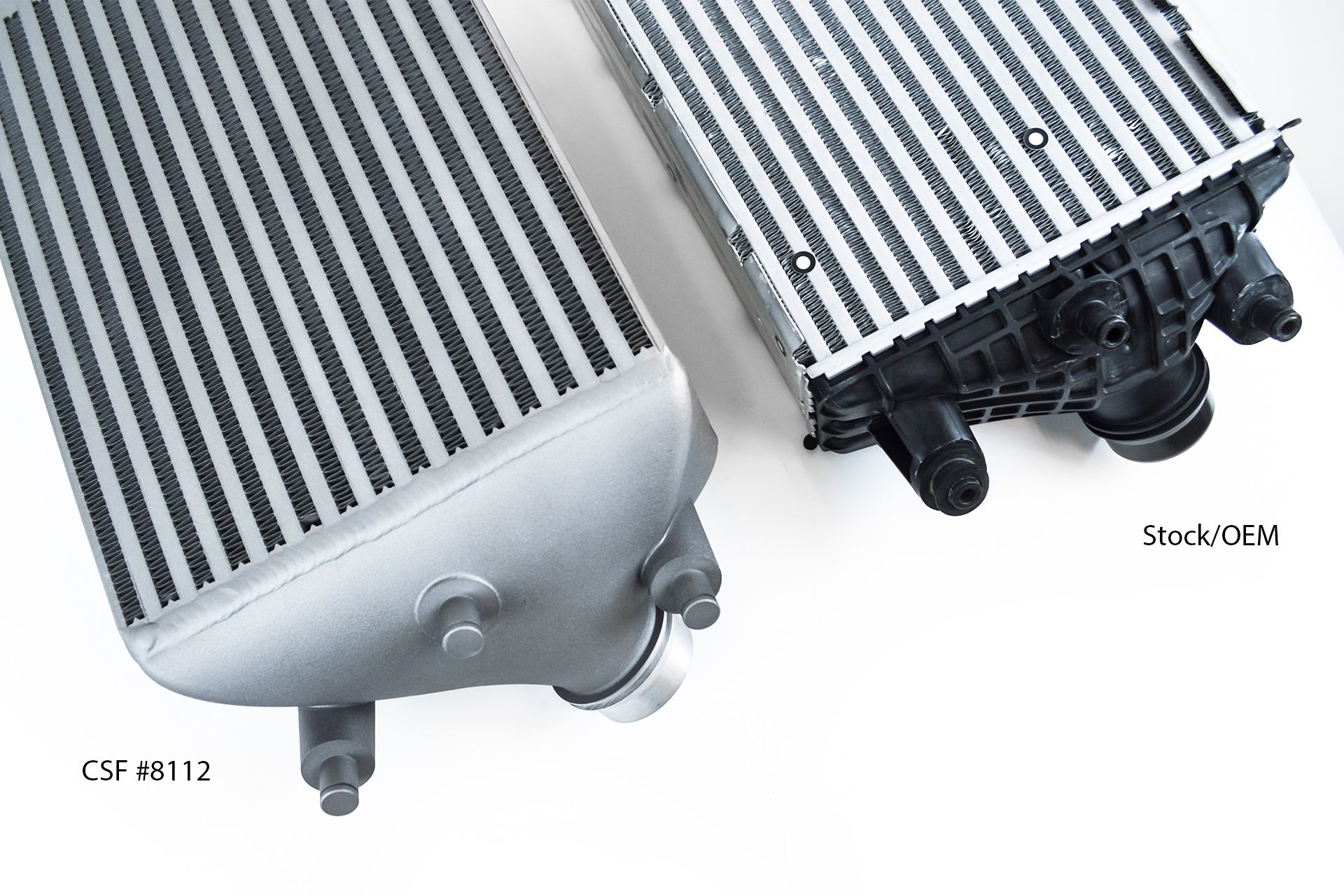

• 4.53-inch thick core compared to OEM's 3.15-inch core (115mm vs 80mm)
• Increased flow area by 43.75%

Cross reference numbers
99111064073, 99111063973
• Increased surface area by 70% (8.5m^2 vs. 5.0m^2)
• Built in-house by CSF (Only high-performance company to manufacture their own intercooler cores)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8112

The product you are viewing cross references to these numbers

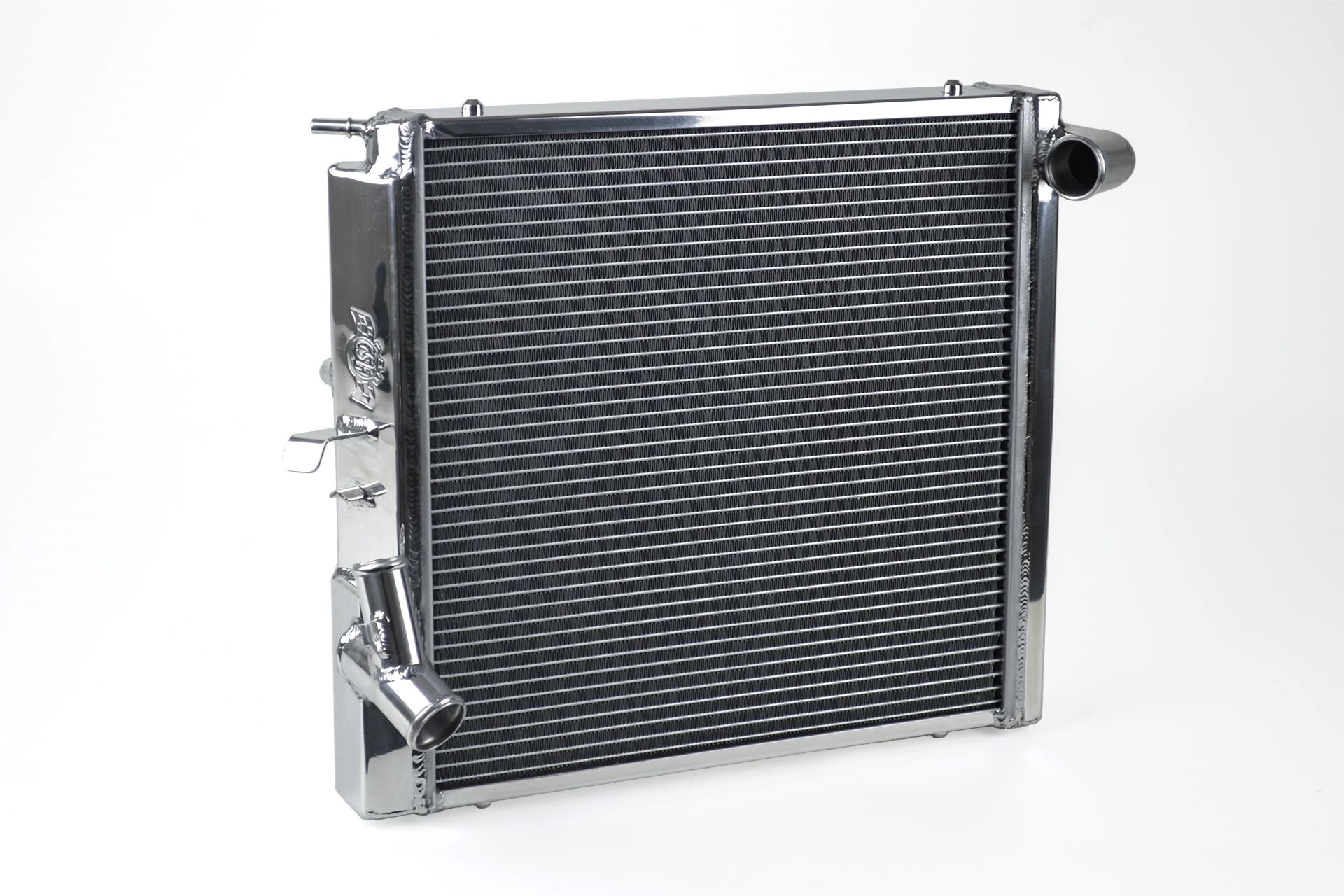

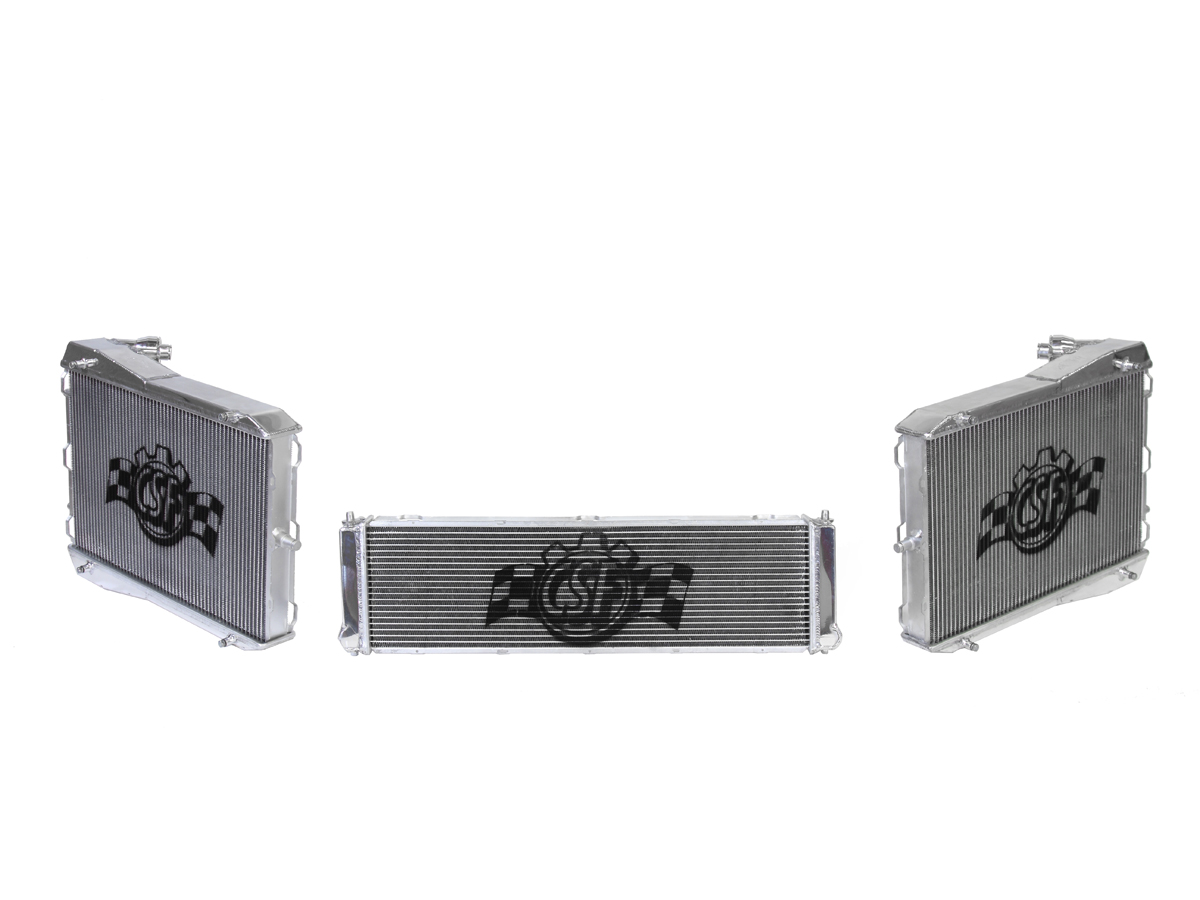

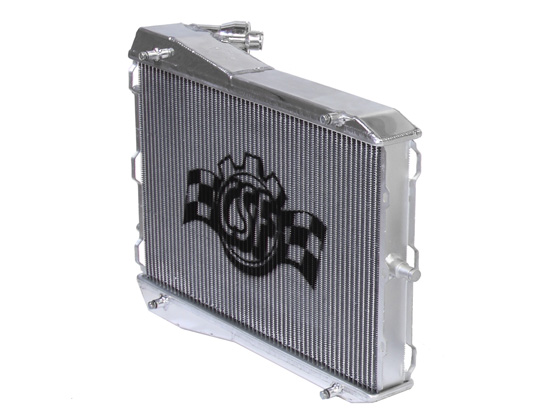

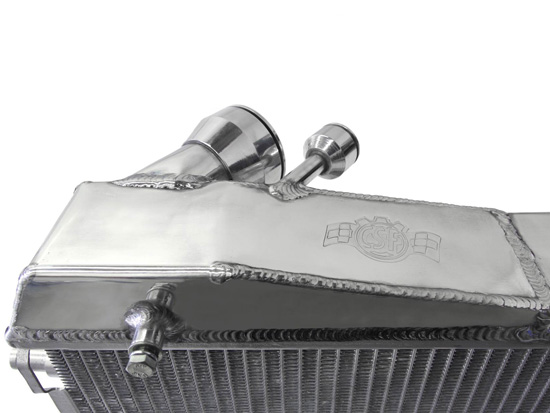

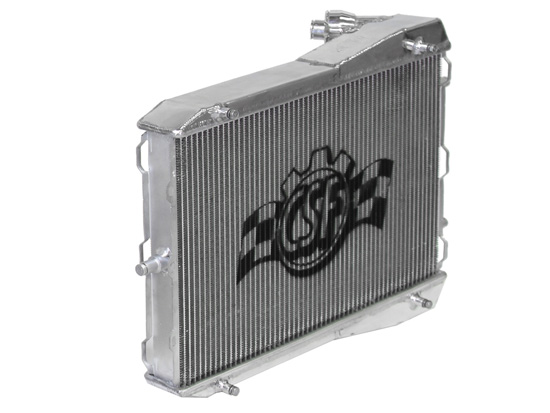

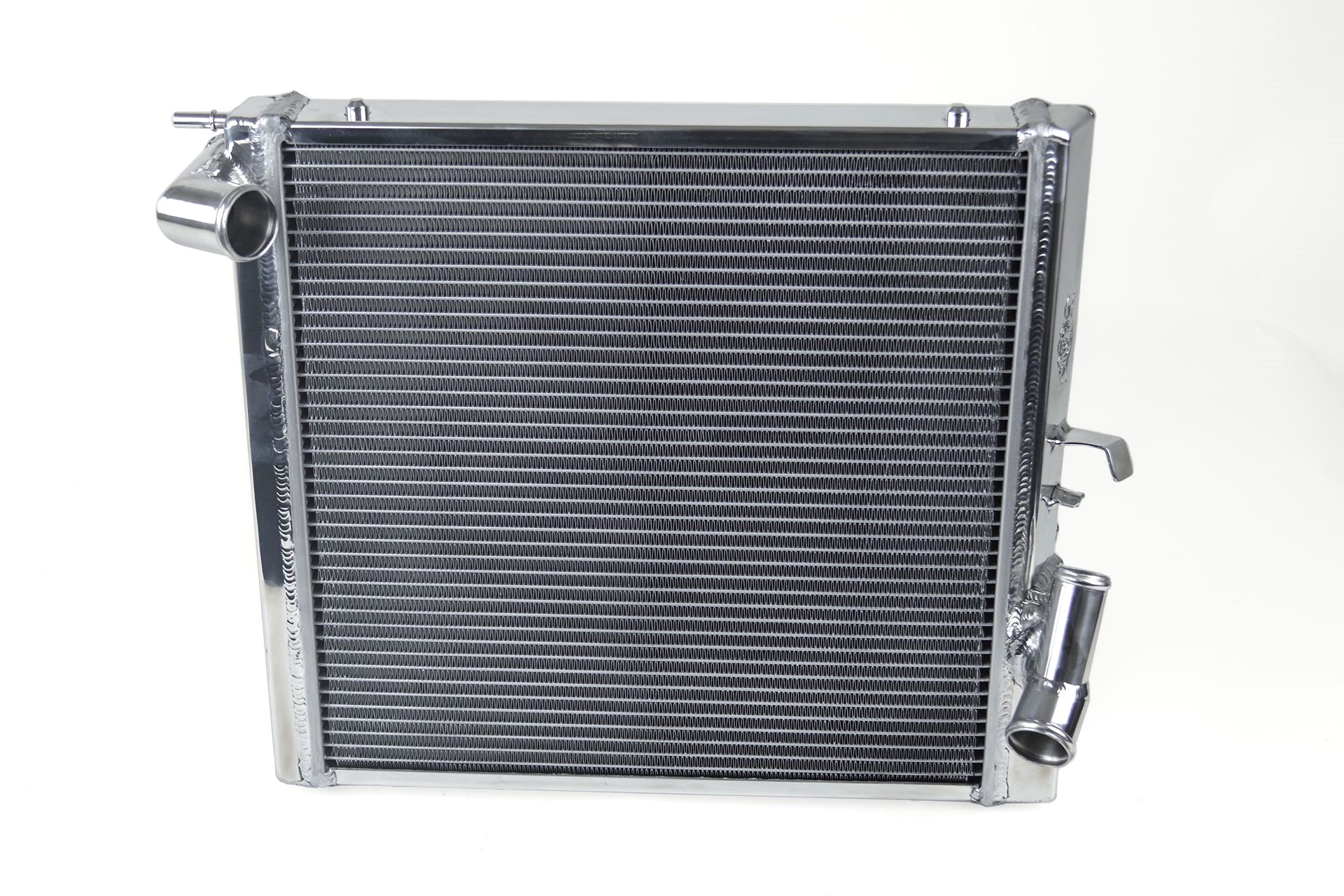

Racing and high performance radiators for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement

CSF strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. All-aluminium 100% TIG welded, CNC machined brackets, mounting pins and "Quick-Connect" inlet/outlet pipes, Drop-in fit requiring no modifications , 2 row core with B-Tube technology (+20%), 1 hour hand polished, Track Tested & Proven in 110°F, ISO 9001 certified cooling system manufacture.

ENGINEERING
"B-Tube" Technology - Most efficient tube in the world
High Efficiency Louvered Fin
OE radial and deep drawn aluminium end tanks
Wind tunnel tested for optimal radiator core cooling performance
Stronger joint design for mountings, fan shrouds & condensers
OE Specific Mounting
"Drop-in" fitment requiring no modifications
CNC Machined brackets and fittings
Racing Style all-aluminium drain plug

MANUFACTURING
Brazed in CAB Furnace
ISO 9001/9002 certification
Privately owned factories with full "In house" tool rooms
"Master Class" TIG welding

TESTING
Individually leak tested
Vibration cycle tested
Thermal cycle tested
Burst pressure cycle tested 10,000 times for strength
Salt spray tested for corrosion protection

Cross reference numbers
99110614101, 99610114201

Fits:
Porsche 911 Carrera (991.2) / 911 Turbo (991) / 991 GT3 / 991 GT3RS / 991 CUP

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

70

The product you are viewing cross references to these numbers

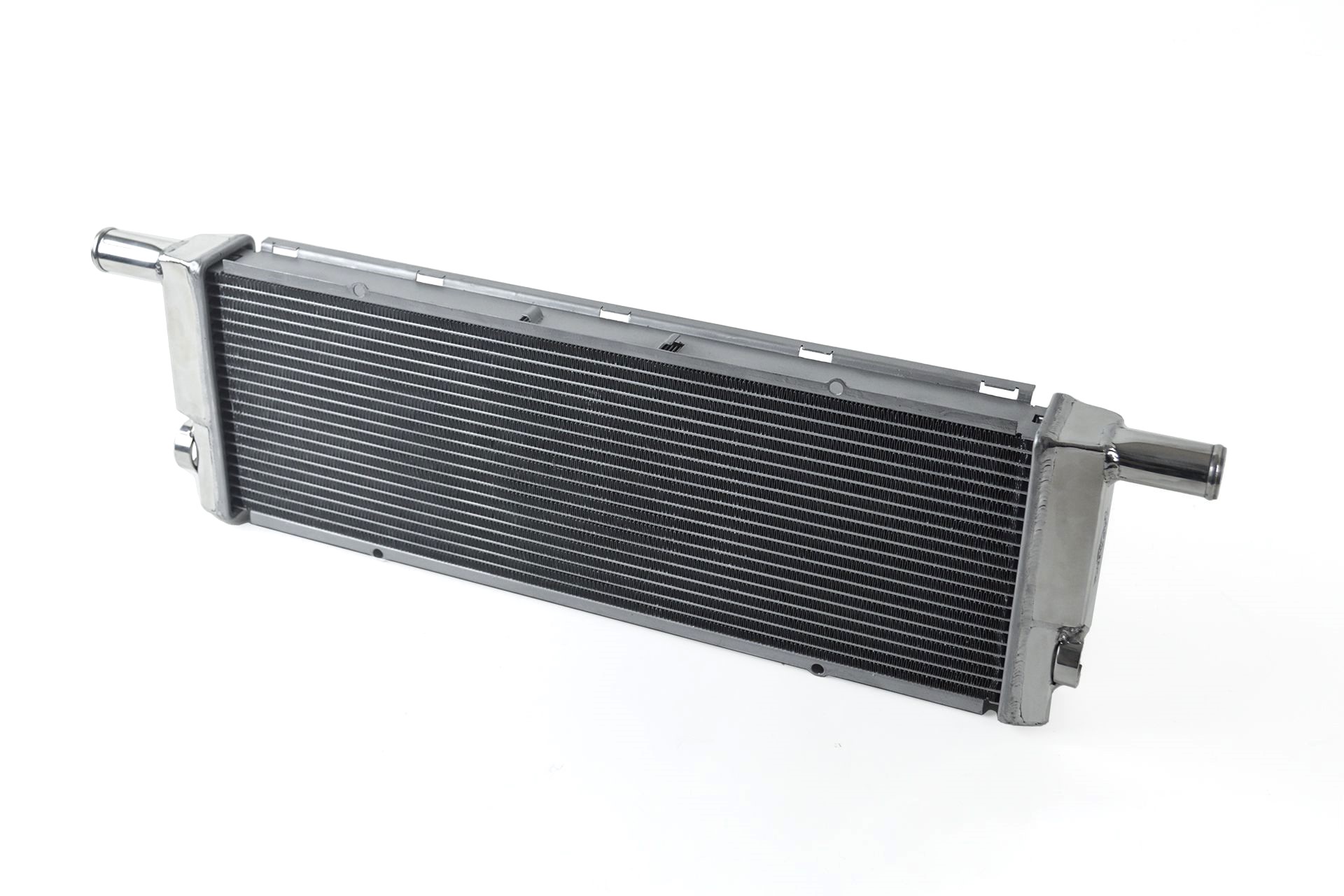

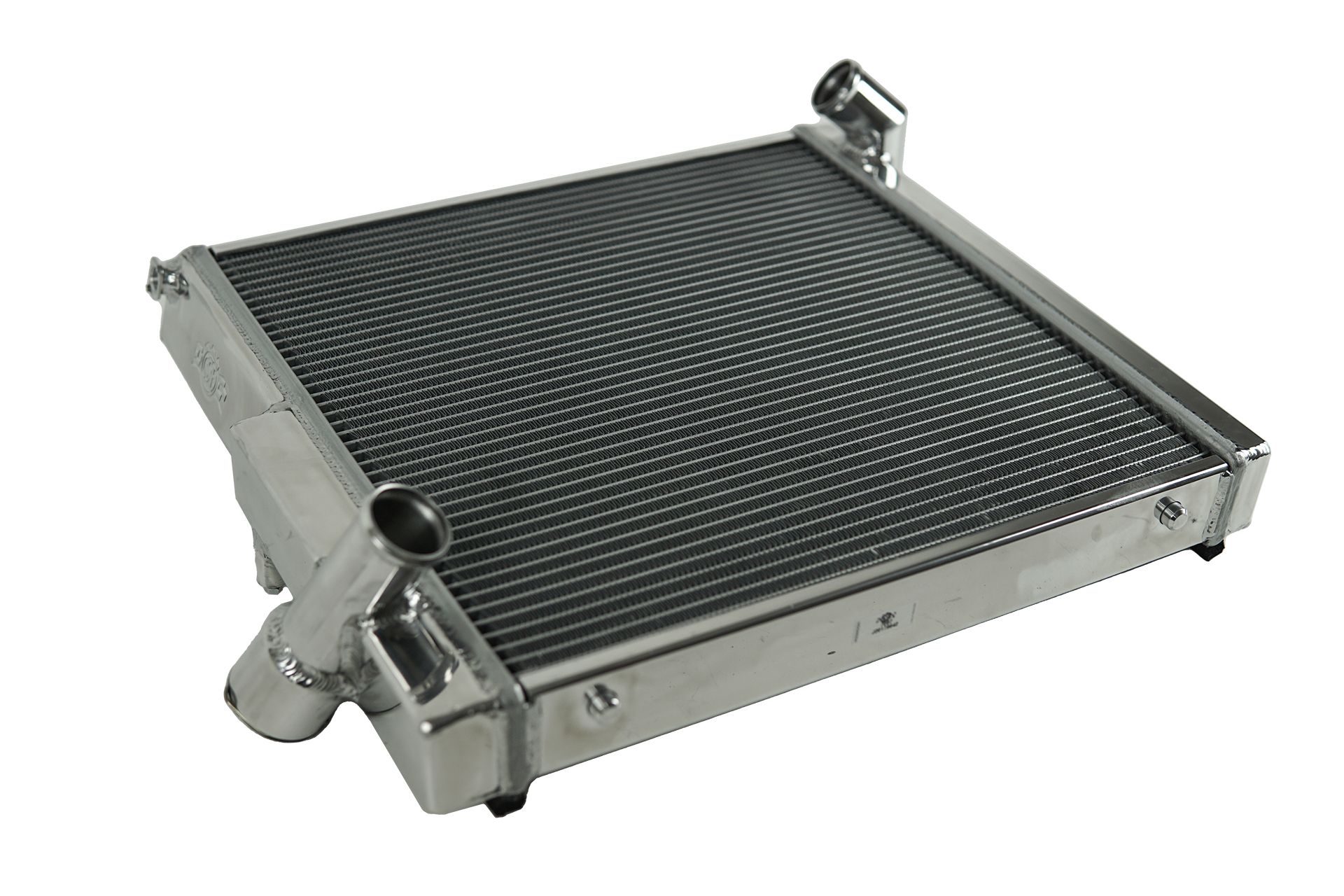

Racing and high performance radiators for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement.

CSF strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. All-aluminium 100% TIG welded, CNC machined brackets, mounting pins and "Quick-Connect" inlet/outlet pipes, Drop-in fit requiring no modifications , 2 row core with B-Tube technology (+20%), 1 hour hand polished, Track Tested & Proven in 110°F, ISO 9001 certified cooling system manufacture.

ENGINEERING
"B-Tube" Technology - Most efficient tube in the world
High Efficiency Louvered Fin
OE radial and deep drawn aluminium end tanks
Wind tunnel tested for optimal radiator core cooling performance
Stronger joint design for mountings, fan shrouds & condensers
OE Specific Mounting
"Drop-in" fitment requiring no modifications
CNC Machined brackets and fittings
Racing Style all-aluminium drain plug

MANUFACTURING
Brazed in CAB Furnace
ISO 9001/9002 certification
Privately owned factories with full "In house" tool rooms
"Master Class" TIG welding

TESTING
Individually leak tested
Vibration cycle tested
Thermal cycle tested
Burst pressure cycle tested 10,000 times for strength
Salt spray tested for corrosion protection

Cross reference numbers
99110613801, 99110613802, 99110603890

Fits:

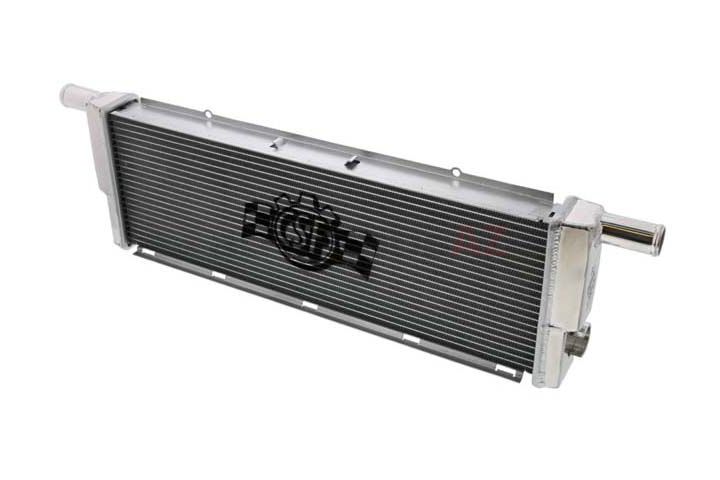

Porsche 911 Turbo (991) / 991 GT3 / 991 GT3RS / 991 CUP / 981 Boxster Spyder / Cayman GT4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

7068

The product you are viewing cross references to these numbers

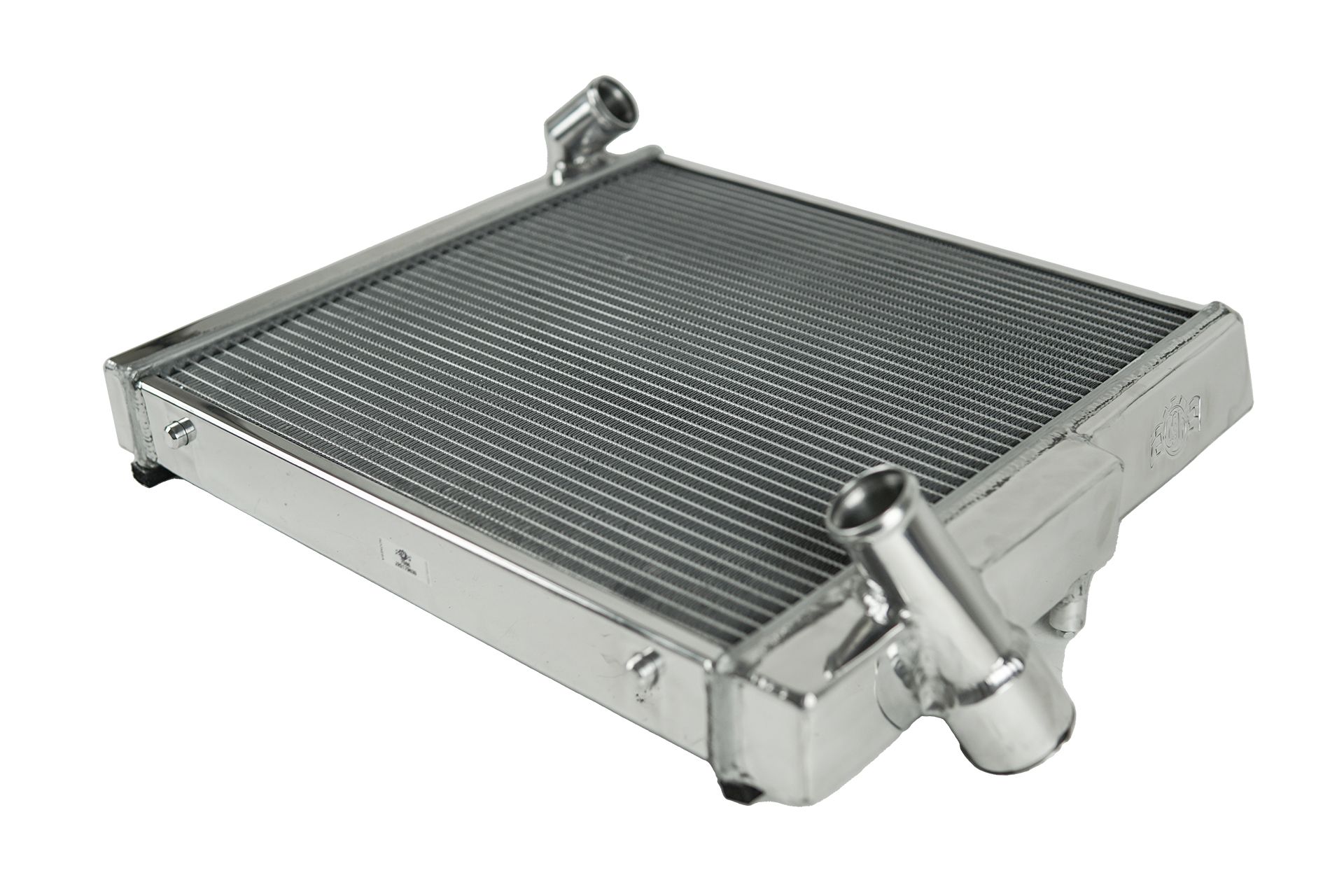

Racing and high performance radiators for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement.



CSF strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. All-aluminium 100% TIG welded, CNC machined brackets, mounting pins and "Quick-Connect" inlet/outlet pipes, Drop-in fit requiring no modifications , 2 row core with B-Tube technology (+20%), 1 hour hand polished, Track Tested & Proven in 110°F, ISO 9001 certified cooling system manufacture.

ENGINEERING
"B-Tube" Technology - Most efficient tube in the world
High Efficiency Louvered Fin
OE radial and deep drawn aluminium end tanks
Wind tunnel tested for optimal radiator core cooling performance
Stronger joint design for mountings, fan shrouds & condensers
OE Specific Mounting
"Drop-in" fitment requiring no modifications
CNC Machined brackets and fittings
Racing Style all-aluminium drain plug

MANUFACTURING
Brazed in CAB Furnace
ISO 9001/9002 certification
Privately owned factories with full "In house" tool rooms
"Master Class" TIG welding

TESTING
Individually leak tested
Vibration cycle tested
Thermal cycle tested
Burst pressure cycle tested 10,000 times for strength
Salt spray tested for corrosion protection

Cross reference numbers
99110613103, 99110613203

Fits:
Porsche 991.1
Porsche Boxster 981
Porsche Cayman 981

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

706

The product you are viewing cross references to these numbers
