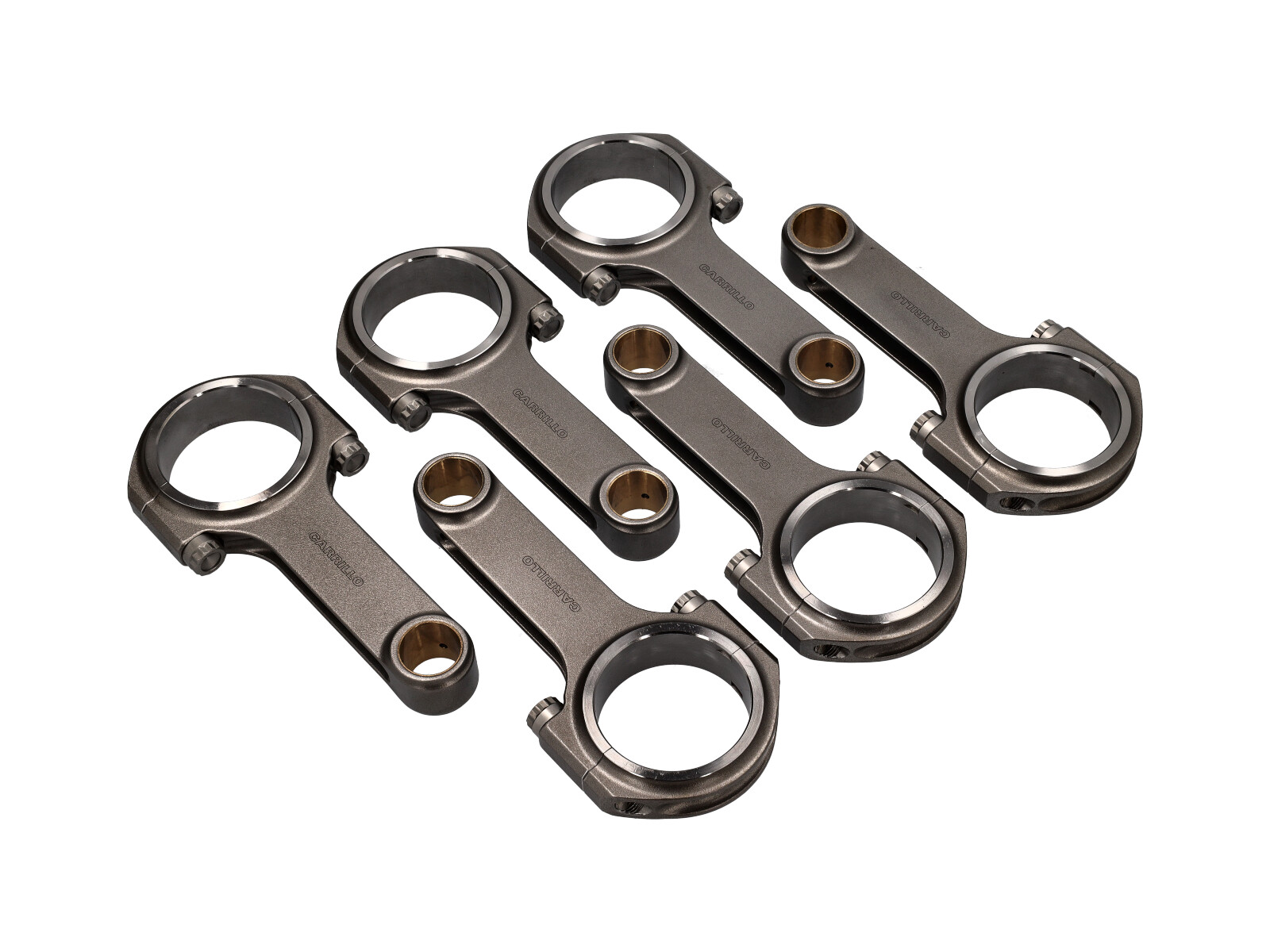

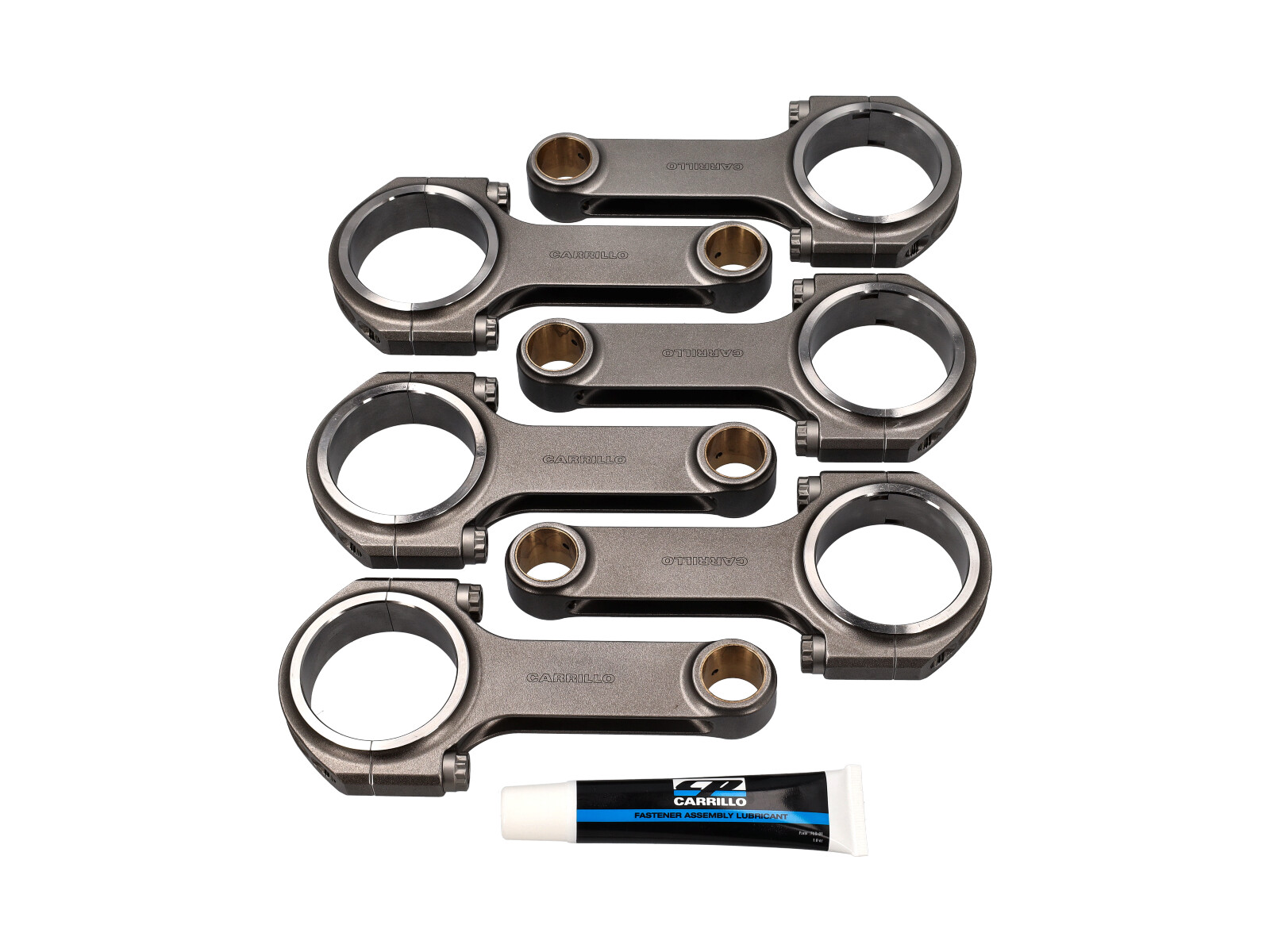

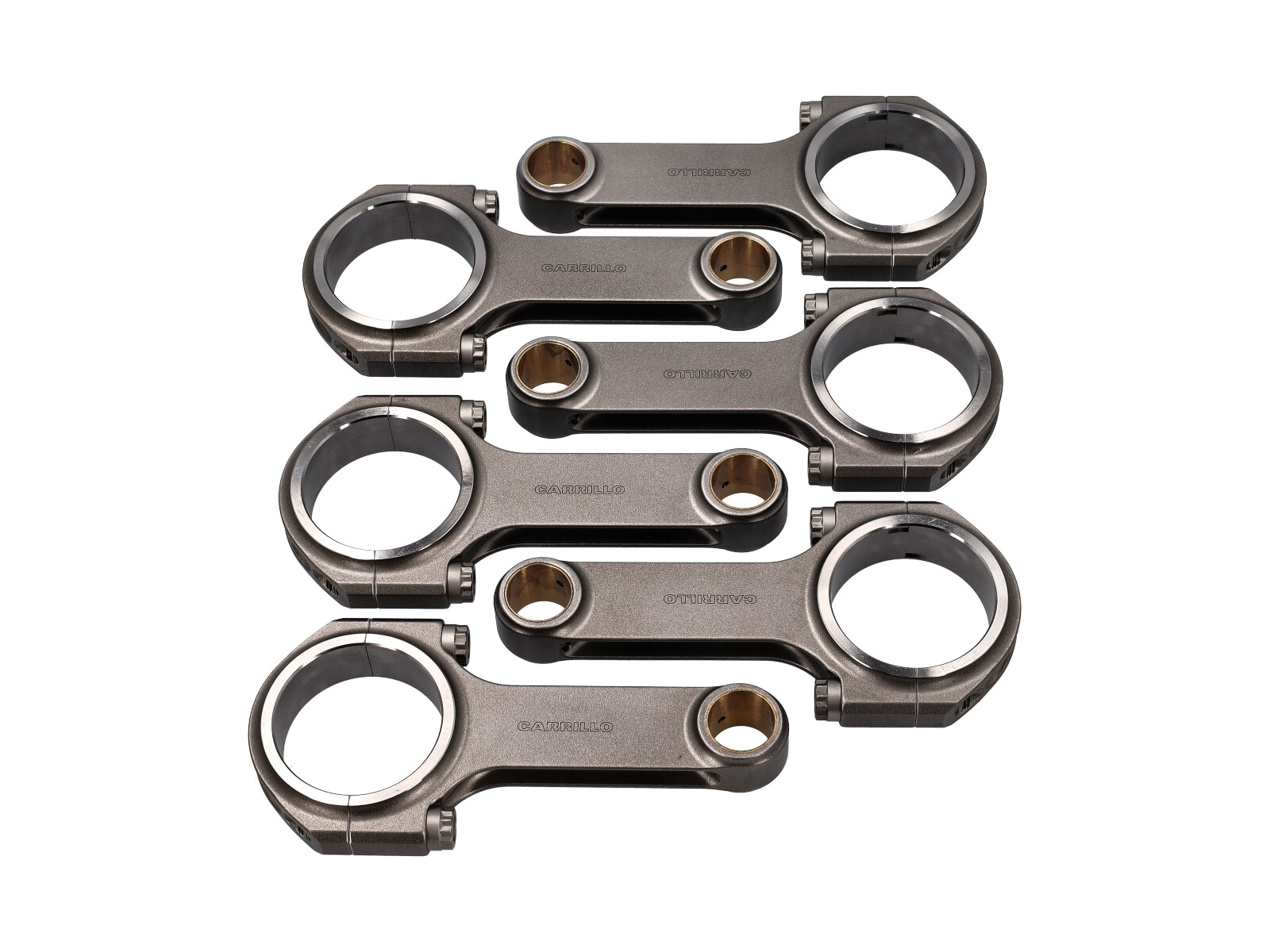

Carrillo

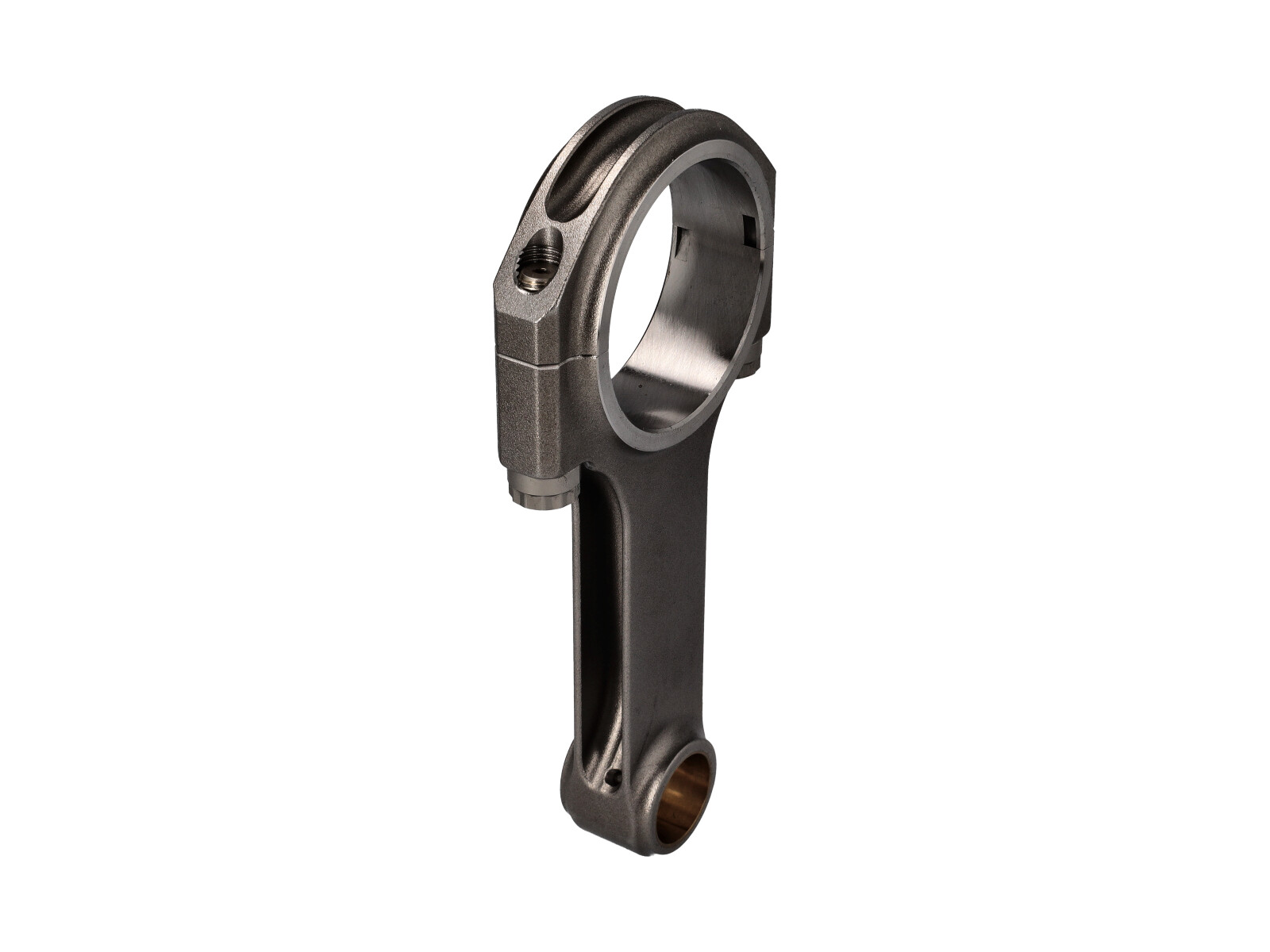

Connecting con rods.
SET OF 6

Fits:
Porsche 911 2.4L
Porsche 911 2.7L

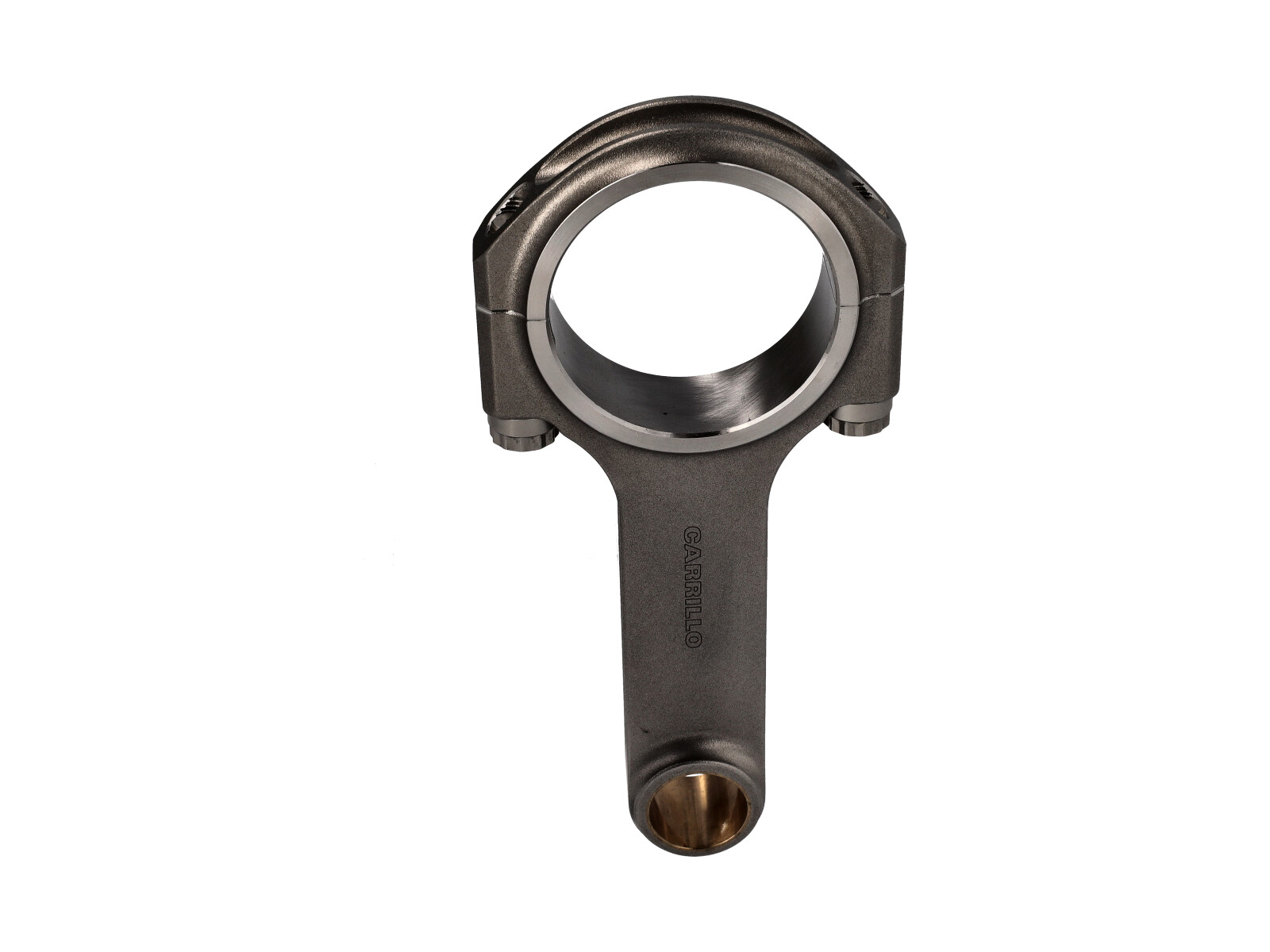

CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H6 bolt with a UTS of 220ksi and our upgraded CARR-S6 bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.

All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners

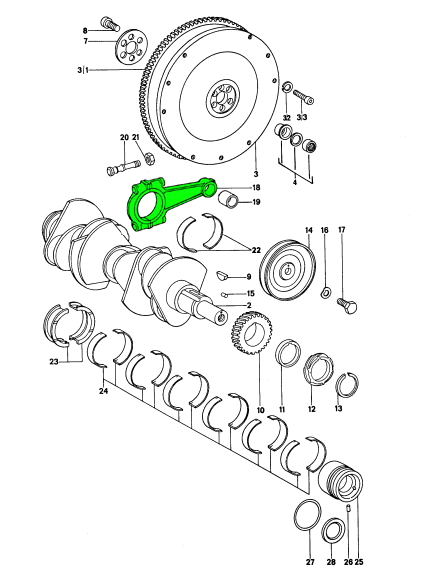

Click picture for large parts diagram.
Diagram Ref No 18.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110395900

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 964 3.8L RS and Porsche 993 3.8L RS

Bore: 102 mm
Size / STD: 2 mm
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 12.5
Dome Height: 0.445
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

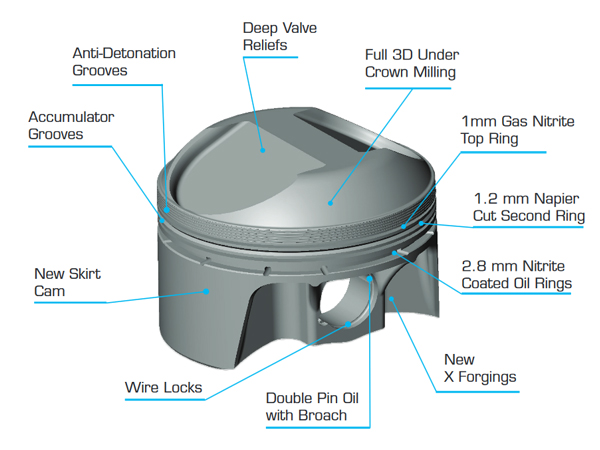

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5023

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 964 3.8L RS and Porsche 993 3.8L RS

Bore: 102 mm
Size / STD: 2 mm
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.039
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5022

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 964 3.6L and Porsche 993 3.6L

Bore: 100 mm
Size / STD: std
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 12.5
Dome Height: 0.445
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5021

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 964 3.6L and Porsche 993 3.6L

Bore: 100 mm
Size / STD: std
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.205
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5020

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.2 Carrera

Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.490
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5015

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.2 Carrera

Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 10.5
Dome Height: 0.382
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5014

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.2 Carrera

Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 9.5
Dome Height: 0.288
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5013

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.2 Carrera

Bore: 95 mm
Size / STD: std mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.520
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5012

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.2 Carrera

Bore: 95 mm
Size / STD: std mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5011

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.0 SC

Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5003

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.0 SC

Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 9.5
Dome Height: 0.215
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5002

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.0 SC

Bore: 95 mm
Size / STD: std
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.510
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5001

The product you are viewing cross references to these numbers

Piston SET OF 6 for Porsche 911 3.0 SC


Bore: 95 mm
Size / STD: std
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 9.5
Dome Height: 0.385
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180

X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.

Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.

X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

XP5000

The product you are viewing cross references to these numbers

Connection Rod Bolt 3/8 CARR Bolt 1.600UHL S6 or CARR6 Head Marking
Price is Each


Diagram ref no 10.
