Brey-Krause

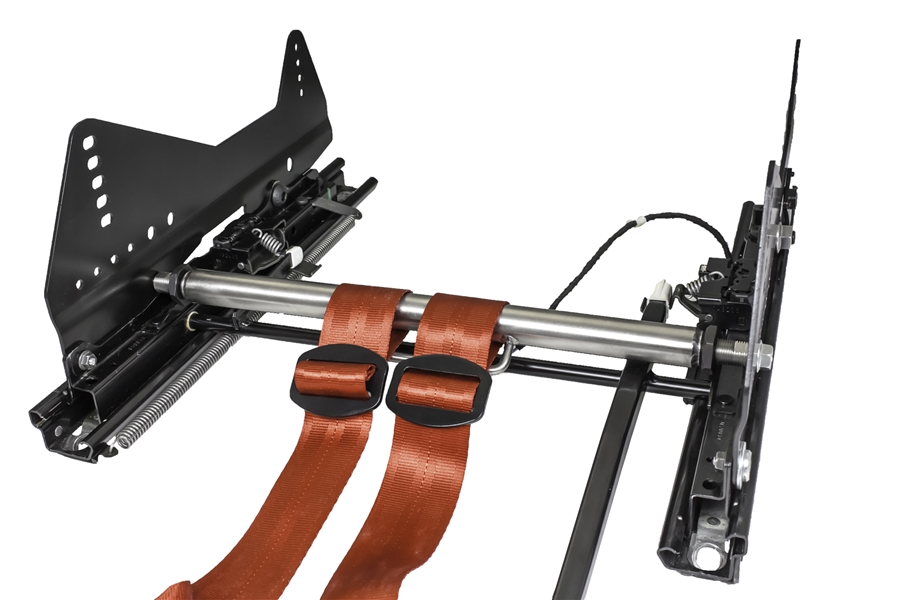

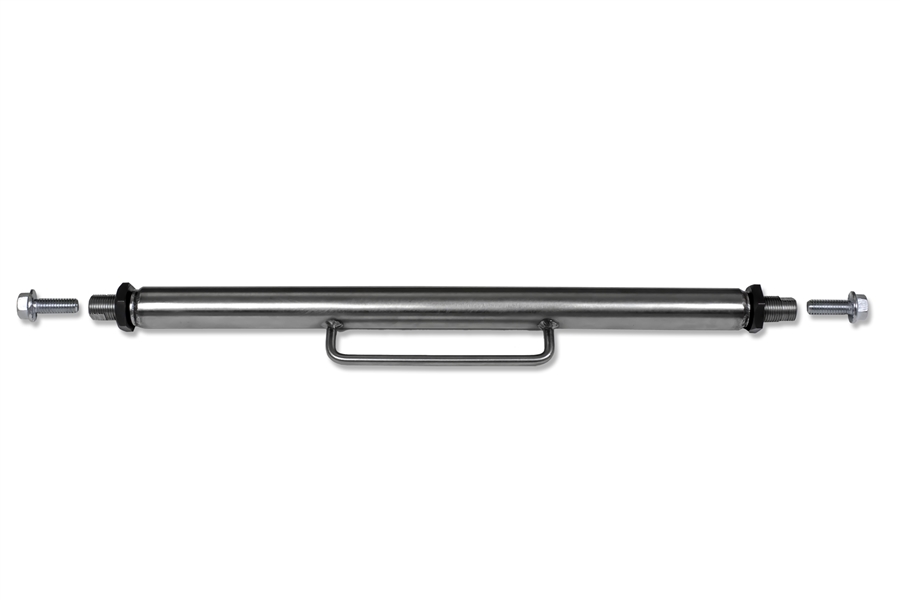

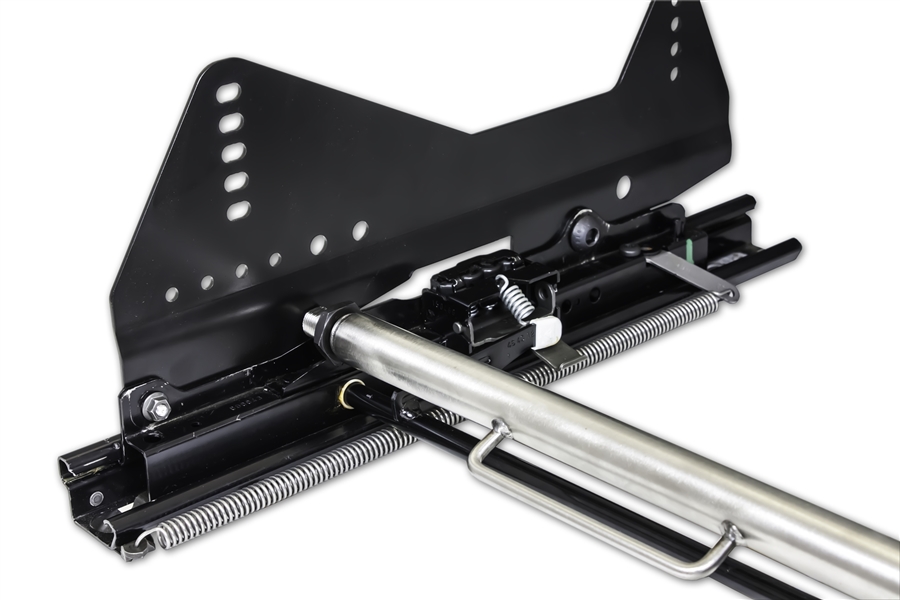

Brey krause sub strap mount for adjustable BK mount system
for seats 425mm or wider at the front mounting points

Fits:
Porsche 991 / 981 / 997 and 987 models with R-9052 Side Mounts

Material: 304 series stainless steel steel tubing
Finish: brushed stainless finish
Weight: 2 lbs.
Models: Mounts to all Brey Krause variable width side mounts

Installation: for seats 425mm or wider at the front mount points

Related Parts:
R-9052 Side Mounts For OEM 991,981,997,987 Sliders
R-9006 Clip-In Inside Lap Belt Mounts
R-9003 Clip-In Outside Lap Belt Mounts

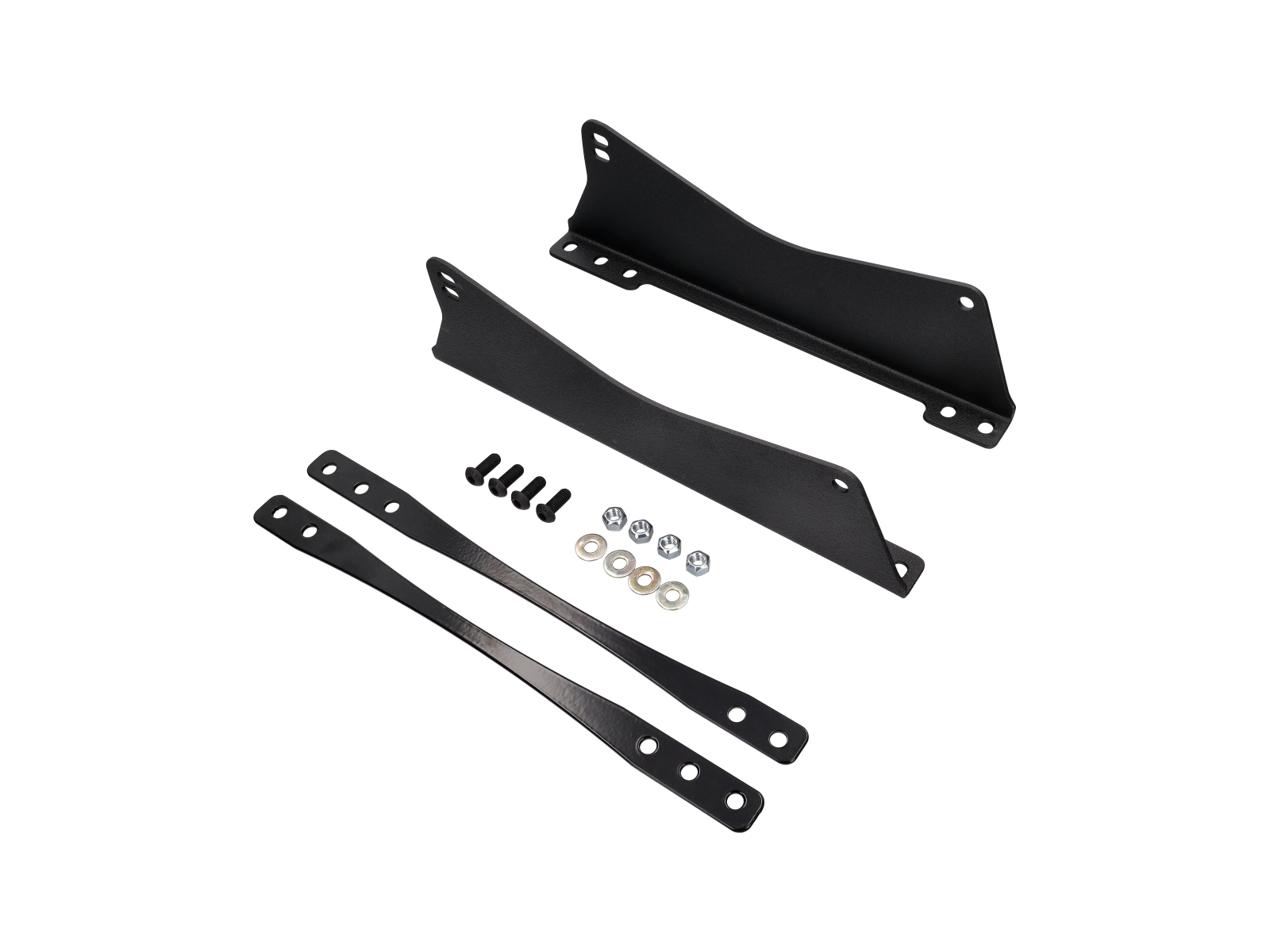

Side mount brackets for GT3 seats.



Fits:
Porsche 911 - 1965 to 1989

Porsche 964 - 1989 to 1993

These Side Mounts install Porsche GT3 seats to all Porsche 911's from 1964 to 1993 and Recaro sliders on 16" centers.
Fabricated from 304 Series stainless steel they have a black wrinkle powder-coated finish.

Material: 304 series stainless steel
Finish: Black powder-coated wrinkle finish

Models: Fits all Porsche's with Recaro sliders that are spaced 16" apart.
Compatible with 996 & 997 Porsche GT3 seats. 991 style GT3 seats have not yet been tested with these mounts.

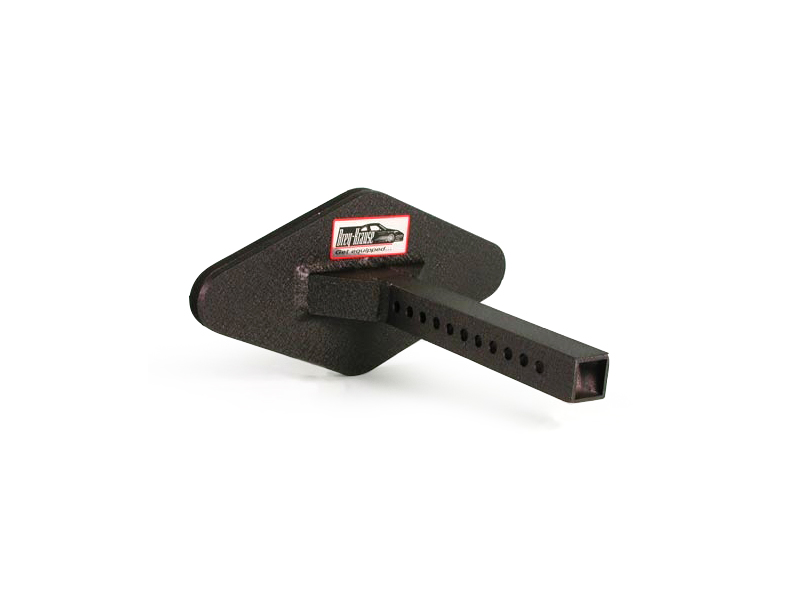

Brey Krause Seat Brace - Factory Reclining Seats

Engineered to extend the protection of Brey-Krause harness mount bars to the back of your seat, the seat support assembly is constructed from 6061-T6 aluminum with a ½" thick layer of high density foam. The foam firmly cushions the back of the seat against the support assembly. This seat brace is designed for conventional factory reclining seats. The R-9020 seat brace is recommended for cars with one-piece racing seats.

Material: 6061-T6 aluminum with ½" thick layer of high density foam.
Finish: Powder-coated wrinkle black
Weight: 2 lbs.
Models: R-9019 seat brace will work with the bolt-on and weld-on roll cage mounting brackets: R-9021, R-9022, and R-9023.
Miscellaneous: Foam firmly cushions the back of the seat against the support assembly. Support can be drilled and through bolted to aftermarket seats if desired. Brackets are sold separately.

Related Parts:
R-9020 Seat Brace - Fixed Back Composite Seats

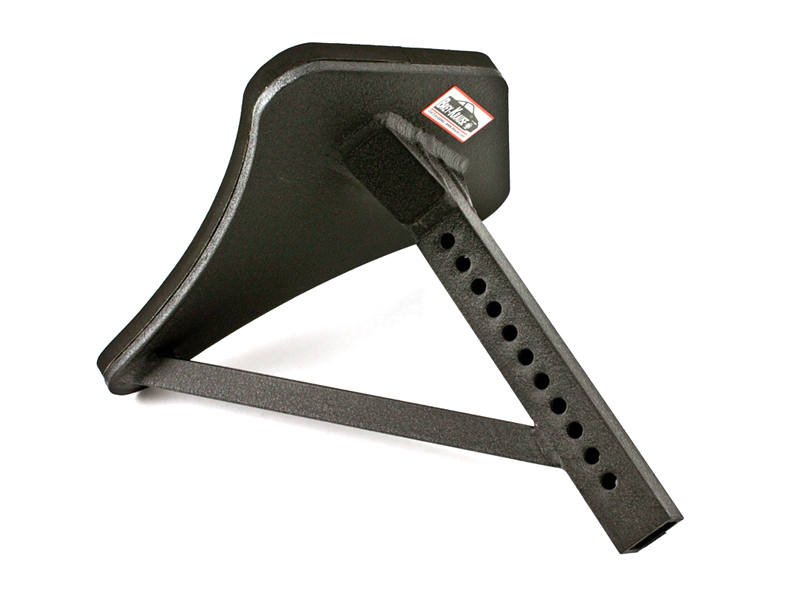

Brey Krause Seat Brace - Fixed Back Composite Seats.



The "adjustable seat brace" is engineered to extend the protection of your roll cage to the back of your seat. The Brey-Krause adjustable seat brace is designed to fit 1-3/4", 1-5/8" and 1-1/2" diameter roll bars and all BK harness mount bars. The mounting bracket is secured with bolts through two holes which are drilled through the roll bar tubing. Once bolted to the roll bar, the seat brace can be adjusted fore, aft, up, or down. This seat brace is designed for one piece (i.e. non-reclining) racing seats. The R-9019 is recommended for Porsche reclining seats. Mounting brackets are not included.

Material: 6061-T6 aluminum with ½" thick layer of high density foam.
Finish: Powder Coated Wrinkle Black
Weight: 3 Lbs.
Installation: Attaches to roll bars or Brey-Krause harness mount bars.
Miscellaneous: Foam firmly cushions the back of the seat against the support assembly.
Options:

This part requires the use of one of the following:

Roll Bars and Roll Cages:
R-9021 Bolt-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2" to 1 3/4"
R-9023 Bolt-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2"
R-9022 Weld-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 3/4"
R-9025 Weld-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2"

BK Harness Mount Bars and Trusses:
R-9024 Seat Brace Mounting Kit - All BK Harness Mount Bars with Integrated Brackets
R-9017 Seat Brace Mounting Kit - For R-1035 Harness Truss (Porsche 996/997)
R-9018 Seat Brace Mounting Kit - For R-1025 Harness Truss (Porsche 911 '74-'98)

Brey Krause harness mount bar replacement hardware kit for R-1030 Brey Krause harness mount bar.

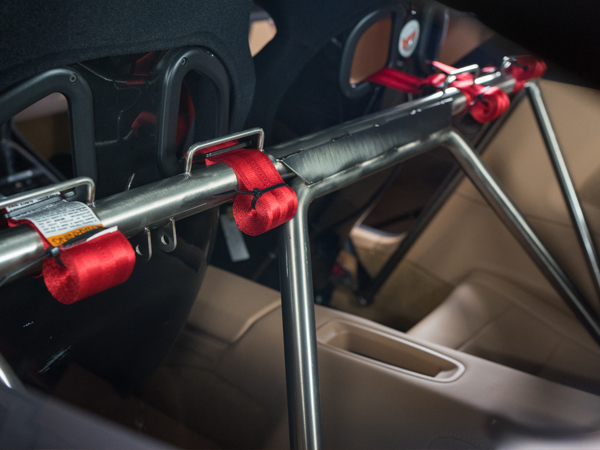

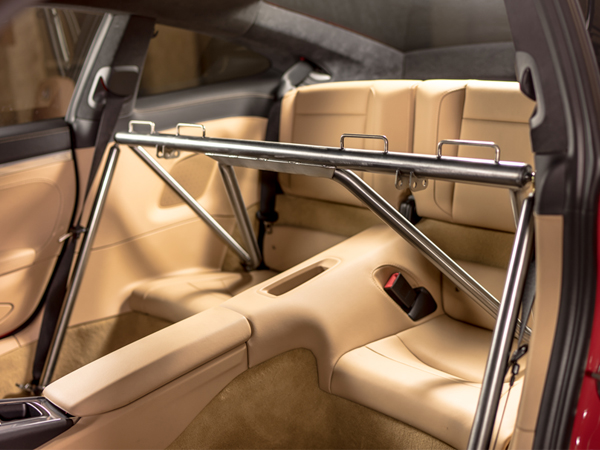

Brey Krause Harness Mount in powder coated black. For Porsche 991 2011>> COUPE ONLY

The Porsche 991 harness mount bar has been tested and certified by an independent lab to handle the types of forces required by the National Highway Traffic Safety Admin. DOT and SAE J385 Rev.MAR 95, Motor Vehicle Seat Belt Anchorages-Performance Requirements.

The 991 harness mount bar properly locates and supports racing shoulder harnesses relative to the driver. In the case of an accident, it helps protect the driver's shoulders and spine. The harness guides also prevent excessive shifting and fatigue of the driver during the high G loads of cornering and braking. Our bars are easy to install and remove, use only existing holes and mounting points, and will not damage the car in any way.

Strength requirements for harness mounts are considerably greater than those for harness guide bars since they must support the entire load applied to the belts. A mount really can't be relied on unless it has been tested to support the loads required by the National Highway Traffic Safety Administration.

The Brey-Krause Harness Mount supported the loads specified by the National Highway Traffic Safety Admin. DOT for upper torso restraints in all automobiles. Tensile tests performed by an independent lab.

Material: Type 304, stainless steel
Finish: Powdercoated in durable black wrinkle-finish
Weight: 16 lbs
Models: 991 & 992 (Targa models must use R-1033 down tubes)
Installation: Bar attaches to seat belt mounts & seat track hardware.
Miscellaneous: Bar is designed to allow enough seat travel for tall drivers. Includes provisions for Seat Back Brace.

Accessories:

• Replacement Hardware:
• Seat Back Brace: R-9019 & R-9020
• Targa conversion down tubes: R-1033

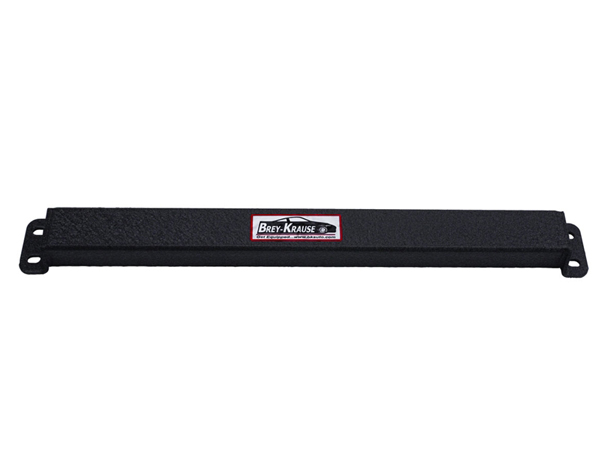

Brey Krause Anti-Sub Strap Mount for the R-908X Series Side Mounts.

Material: 1.5" x 1" x .125" Wall Carbon Steel Tubing
Finish: Powder-coated in durable black wrinkle-finish.
Weight: 2.35 lbs.

Models: Fits Porsche 996/997 and 986/987 Boxster

Installation: Intended to be used when mounting the GT3 seat directly to the floor with the R-908x series side mounts and the R-9042 side mount floor adapter.

Miscellaneous: Low profile design. Fire extinguisher mount not available.

elated Parts:
R-9042 Seat Floor Mount Adapter

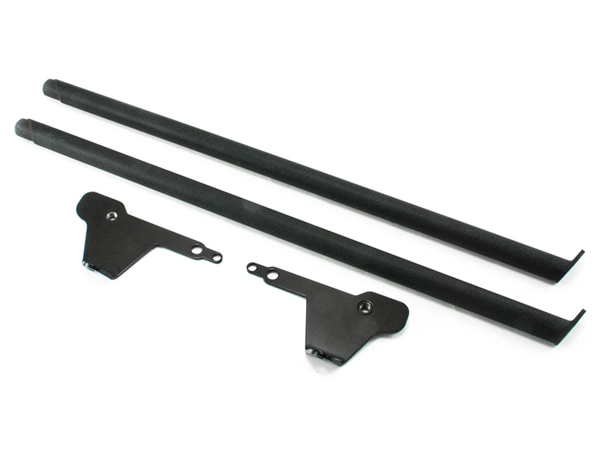

Brey Krause Harness Mount Bar / Truss GT3 Adapter Kit.

This kit adapts the R-1030 and R-1035 harness mounts to fit in the Porsche 996/997 GT2 and GT3. It features new strut tubes that are designed to go to the forward lap belt mounts, as these cars lack rear seat belt mounting points.

This kit bolts in to your GT2 or GT3 with no drilling, cutting or fabricating necessary.

Material: 304 stainless steel
Finish: Powder-coated in black wrinkle finish.
Weight: 5 lbs.
Models: Porsche 996/997 GT2 & GT3
Installation: Kit replaces the forward support tubes included in original kit.
Miscellaneous: Alternate bracket available for certain power seats upon request

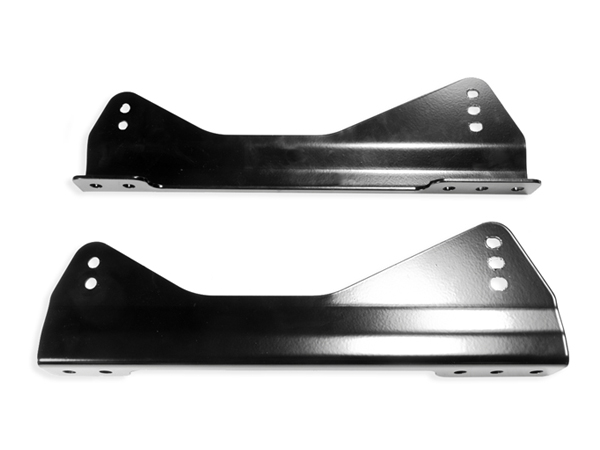

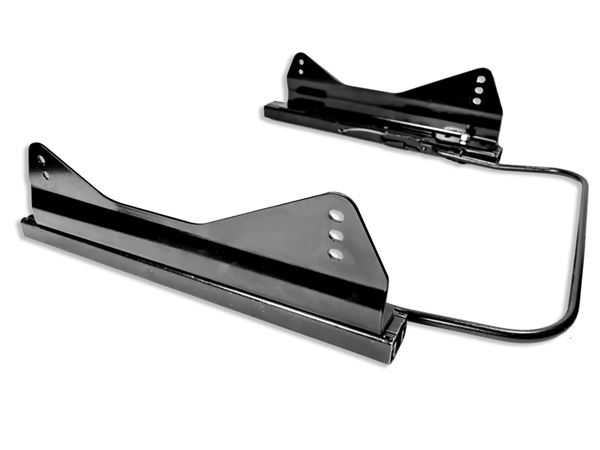

Brey Krause Cobra Nogaro Seat Mounts for Recaro Sliders.

The R-9065 is designed to be used with Recaro sliders of 16" centers. It is also compatible with all air cooled 911 Porsches ('64-'97) stock sliders. All Brey-Krause Seat Track Adapters accept Recaro sliders or the R-9065 can be bolted directly to the Brey-Krause Seat Track Adapters.

Material: 11 gauge, type 304 stainless steel
Finish: Powder-coated in durable black wrinkle-finish
Weight: 3 lbs.
Models: Model R-9065 secures Cobra Nogaro seats to the floor for driver's side and/or passenger's side.

Installation: Adapts Cobra Nogaro seats to aftermarket Recaro & 911 (1964-1997) sliders.

Miscellaneous: Compatible with all Brey-Krause Seat Track Adapters with Recaro sliders

Features and Benefits:
- Requires Recaro slider (inside bar, no tab), PN 0.70.9NT (one per seat)
- For cars that don't have the factory lap belt receiver built into the tunnel, R-9005 adds a mount point for it
- R-9004 adds inboard clip in lap belt mount points (one cover 2 seats)
- R-9003 (MSRP $84) adds outboard clip in lap belt mount points (one cover 2 seats)
- R-9035 adds a sub strap mount point (one required per seat)

Brey Krause Cobra Nogaro Side Mounts for OEM Manual Porsche 996 / 986 Sliders & R-9044 Seat Track Adapter.

Material: 11 gauge, type 304 stainless steel
Finish: Powder-coated in durable black wrinkle-finish
Weight: 4 lbs.

Models: 996, 986, 997, 987, 991, 981, 982 and 718
(all vehicles that accept/use manual 996/986 sliders) SEE BELOW

Installation: Adapts Cobra Nogaro seats to OEM 996/986 Manual Sliders or R-9044 Seat Track Adapter.
Miscellaneous: Lap belt mounts included on both sides of the mounts.


Other applications:
• 911 ('64-'89), 964, 993, 944, 924, and 968. (Required: Brey-Krause R-9043 adapter & manual 996/986 sliders.)
• Ferrari F430. (Required: manual 996/986 sliders.)
• Audi TT MK1 (Required: manual TT MK1 sliders, or manual 996/986 sliders.)

Features and Benefits:
- OEM sliders compared aftermarket sliders add strength, rigidity, and seat travel.
- OEM sliders allow for belts to mount above sliders.
- Stock 3 point receiver attaches with no addition parts
- Sub strap mount, if required: R-9030 (one required per seat)
- Schroth GT3 harness lap belts attaches with no addition parts required
- Clip in lap belt mount points, if required: R-9004 (one required per seat)
- Only works with Porsche 996 manual sliders or R-9044 (both of which bolt directly to the floor in all water cooled Porsche sports cars).

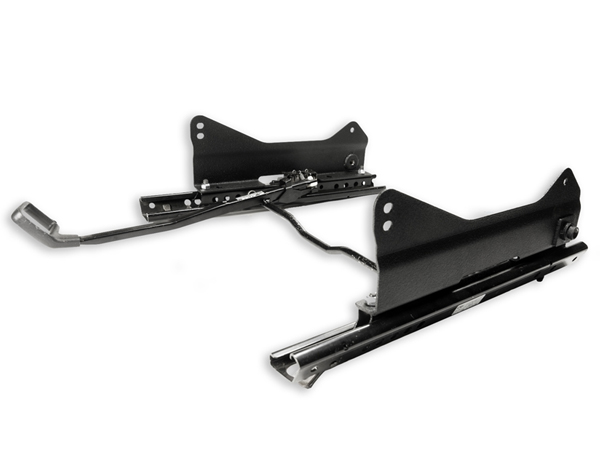

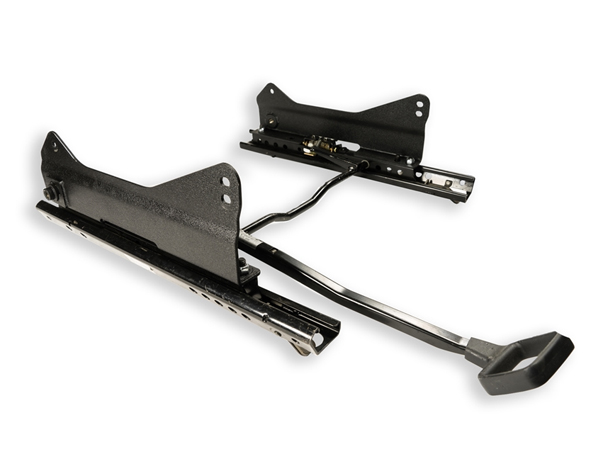

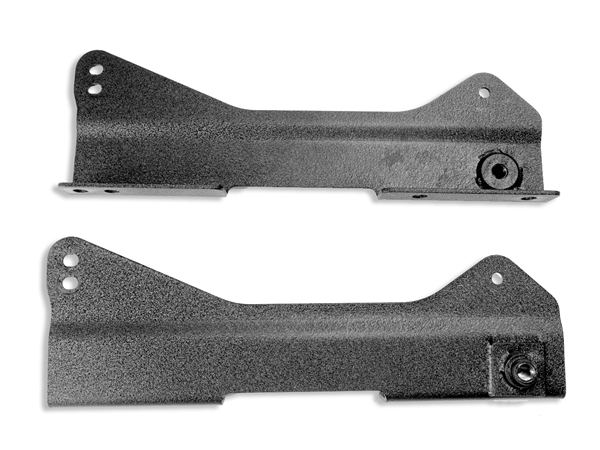

-For lower/lighter solution without sliders. The R-9775 can bolt in multiple forward/rearward positions to R-9044 (one required per seat, sub strap mount included).
- The manual 996/986 sliders can be purchased used on ebay or new by using the Audi part numbers for this part (identical, made in same factory): Driver: 8N0881183 / Passenger: 8N0881184.

For Installation instructions CLICK HERE

Related Parts:
R-9030 Sub Strap Mount for 996/986 Manual Sliders
R-2030 Fire Extinguisher Mount for R-9030 Sub Strap Mount

R-9043 Adapts 996, 997, 991 sliders/seats to 911, 964, 993, 924, 944, 968 seat bases
R-9004 Inboard Clip In Lap Belt Mount for Porsche
R-9003 Outboard Clip In Lap Belt Mount for Porsche (installs to OEM seat belt location)

R-9044 Seat Track Adapter w/ Sub Strap Mount for (996, 986, 997, 987, 991, 981, 982, 718)
R-2044 Fire Extinguisher Mount for R-9044
R-9520 Quick Release Fire Bottle Mount (3" dia. or 2.5lbs bottle)
R-9530 Quick Release Fire Bottle Mount (90mm dia. bottle)

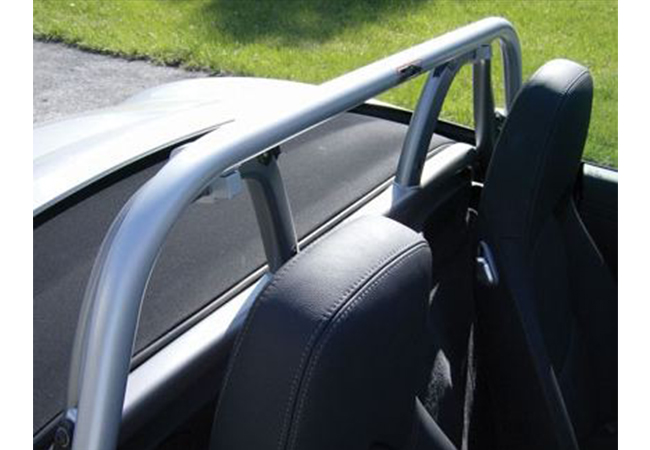

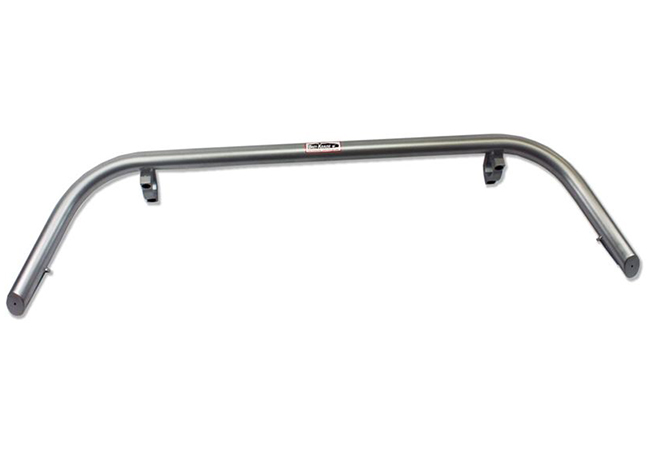

Brey Krause Roll Bar Extension.



For Porsche 987 Boxster ('05-'12)

Building on the success of our R-3010 Roll Bar Extension Kit for later model 986 Porsche Boxsters, Brey-Krause introduces its Roll Bar Extension Kit for the 987 Boxster.

The roll bar extension increases the available headroom in the Boxster by an additional 1 3/8" above the factory roll hoop. This unit provides sufficient head room to permit the use of driving helmets. Protective tape keeps factory surfaces from becoming marred while careful engineering and design result in a secure fit that will not damage the car in anyway.

Material: 120 wall, type 304, stainless steel tubing and mounting brackets.
Finish: Powder-coated in durable flat silver finish.
Weight: 10 lbs. 5 oz
Models: 987 Boxster ('05-'12)
Installation: Bar attaches to factory roll bar & seat belt mounting points.
Miscellaneous: Bar is easy to remove and will not interfere with the soft or hard top. Bar can be stowed in trunk.

For Installation instructions please CLICK HERE

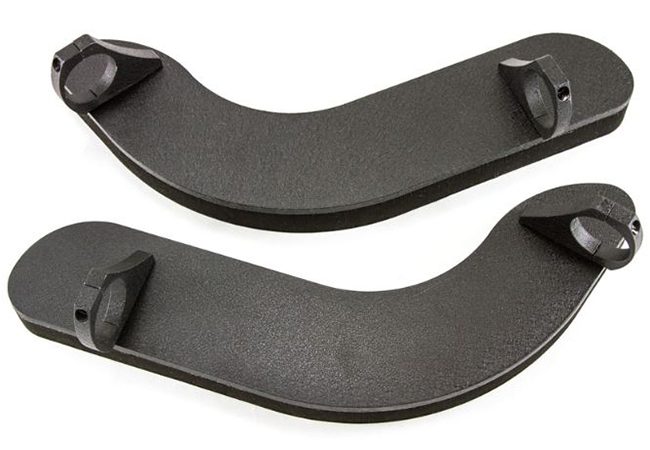

Brey Krause Padding Kit for R-3010.

For Porsche 986 Boxster only ('97-'04)


Material: 1/4" water-jet machined 6061-T6 aluminum plate and mounting brackets with 3/4" high density foam padding.
Finish: Powder-coated in durable black wrinkle-finish.
Weight: 3 lbs.
Models: Boxster
Installation: Attaches to R-3010 Boxster roll bar extension
Miscellaneous: One kit includes both pads for driver and passenger sides

For Installation instructions please CLICK HERE

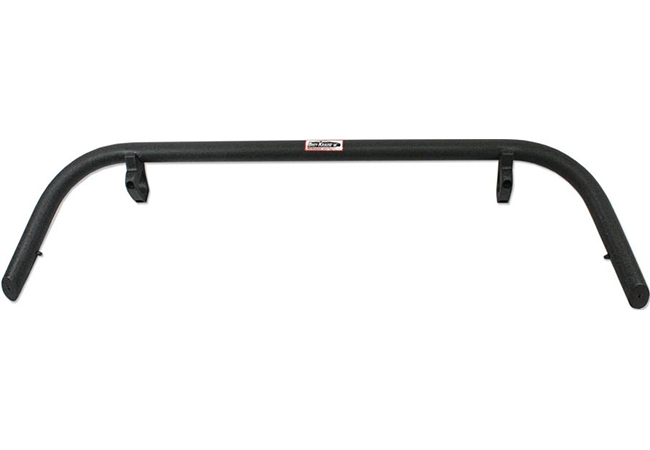

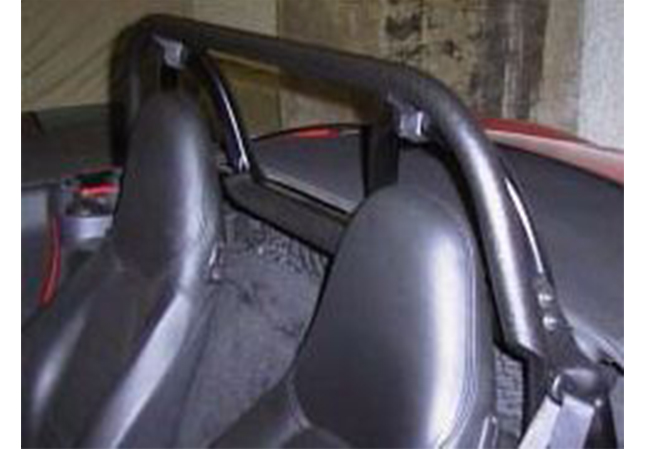

Brey Krause Roll Bar Extension.

For Porsche 986 Boxster only ('97-'04)

Porsche enthusiasts asked us to find a way to extend the head protection of the factory roll bar for track use.The "roll bar extension" increases the available headroom in the Boxster by an additional 1 3/4" above the factory bar.

The "roll bar extension" provides sufficient head room to permit the use of driving helmets. Protective tape keeps factory surfaces from becoming marred while careful engineering and design result in a secure fit that will not damage the car in anyway.

Material: 120 wall, type 304, stainless steel tubing and mounting brackets.
Finish: Powder-coated in durable black wrinkle-finish.
Weight: 10 lbs. 5 oz
Models: 986 Boxster only ('97-'04)
Installation: Bar attaches to factory roll bar & seat belt mounting points.
Miscellaneous: Bar is easy to remove and will not interfere with the soft or hard top. Bar can be stowed in trunk. Does not fit the 987.

For Installation instructions please CLICK HERE

Accessories:
Replacement Hardware: R-3010-HW

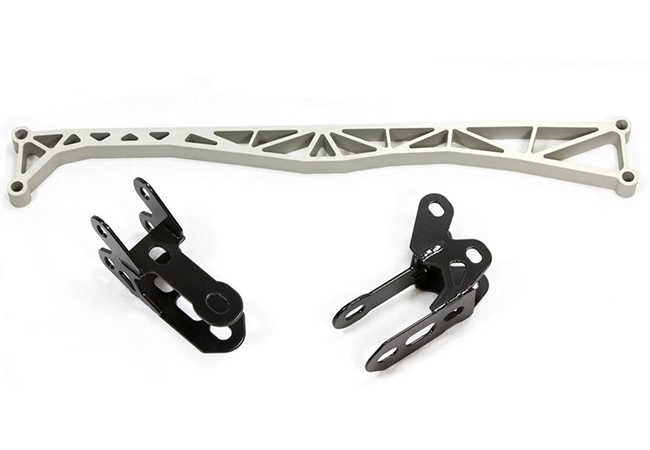

Brey Krause Front cross brace.



For Porsche 944 / 968

This cross brace bolts between the rearmost mounting points of the front control arms. It resists deflection of the chassis at those points, which can occur under heavy braking and cornering. The R-1524 was designed with obsessive attention to minimizing weight. Precision waterjet machining allows for an intricate structure, providing superior stiffness at an exceptionally light weight.

NOTE: If using late-model 968 or aftermarket caster blocks, special-order end brackets are necessary. Contact your dealer or distributor for details!

Material: 6061 T-6 aluminium skeleton, 304 stainless steel mount brackets
Finish: Anodized aluminium
Weight: 2.6 lbs
Models: Porsche 944 (1985 ½ -1992), 968
Installation: Bolts to rear bushing housings of front control arms
Miscellaneous: For best results, use hardened control arm bushings. 924 and early 944 models can be adapted by using late 944 alloy control arms and bushing mounts.

Download the detailed installation instructions

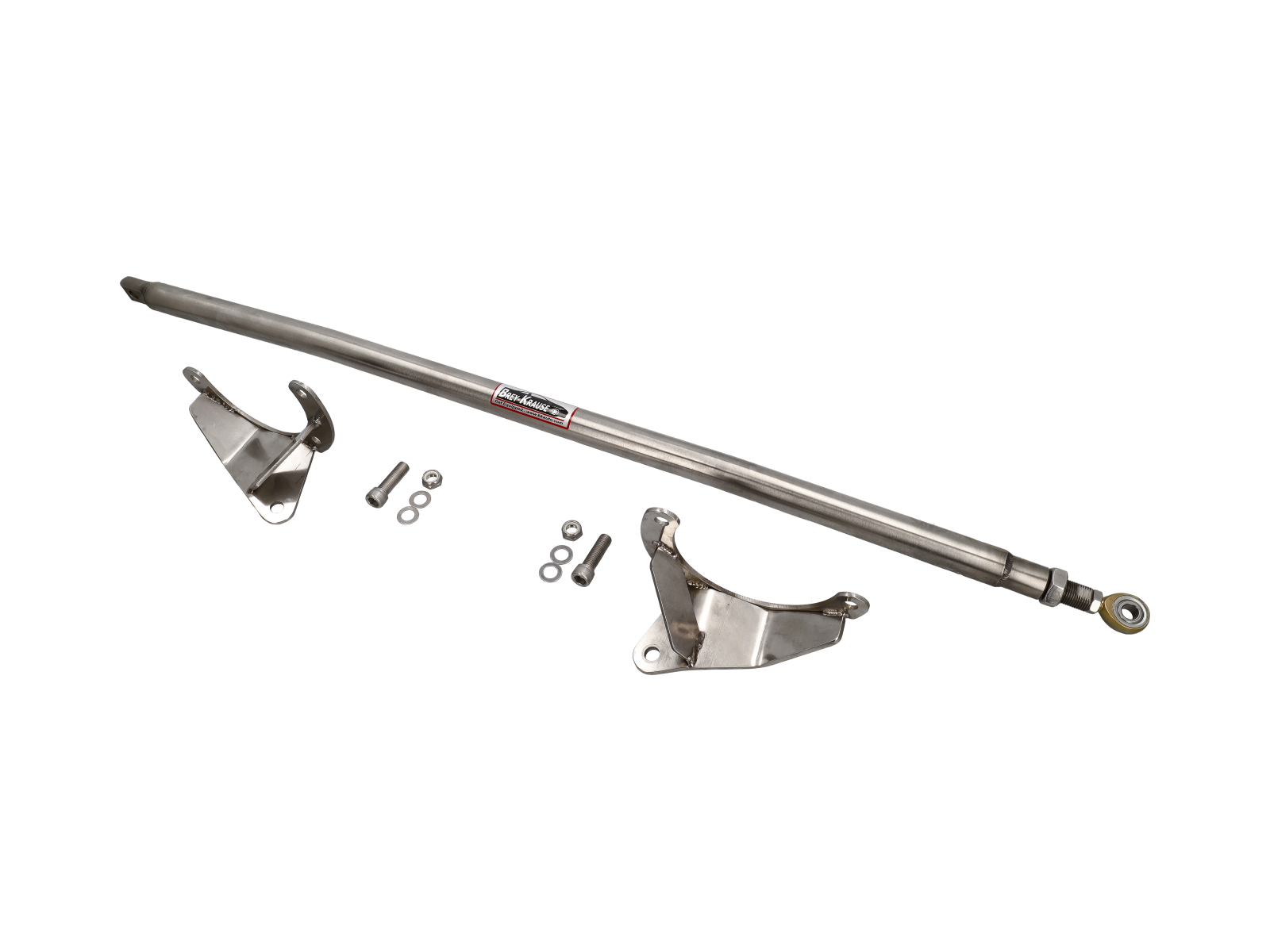

Brey Krause Strut Tower Brace.



For Porsche 944 Turbo, Turbo S2


Material: Type 304, stainless steel.
Finish: Satin finish stainless.
Weight: 3 lbs. 13 oz.
Models: 944-Turbo & 944-Turbo-S
Installation: Bar attaches to strut towers
Miscellaneous: Adjustable rod ends allow precise preloading.

For Installation instructions please CLICK HERE
