JE Pistons
The origins of what we know today as JE Pistons can be traced back to 1912 and the Los Angeles foundry of William Jahns Sr. and his company W.H. Jahns. Employing the tagline, “Nothing but Pistons,” the W.H. Jahns company produced pistons and semi-finished pistons until 1948, when Jahns Sr. retired. Meanwhile, Jahns’ son, William “Uncle Bill” Jahns Jr., started and had been working on his company Jahns’ Racing Pistons since 1947. Shortly after, the business became Jahns’ Engineering Pistons, and was finally shortened to JE Pistons.
Through the following years, JE Pistons’ technology evolved, from mastering casting technology in the 60s to researching and implementing forging technology in the 70s. Numerical Controlled (NC) machines were introduced to manufacturing in the early 80s, which was quickly improved to the use of Computer Numerical Controlled (CNC) machines and a proprietary piston design and machining program in the mid-80s.
JE Pistons has continued to evolve their manufacturing processes, currently offering racing pistons either off the shelf or fully custom. JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE’s 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few to Porsche owners.

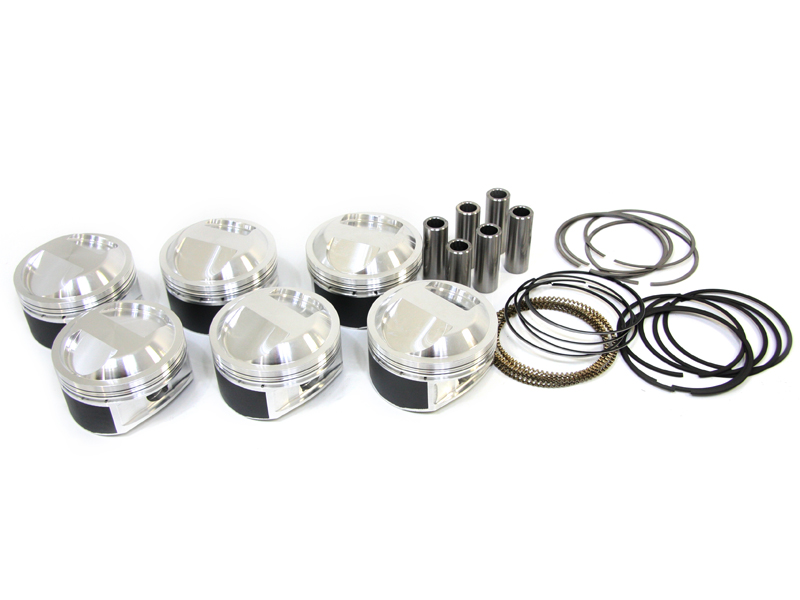

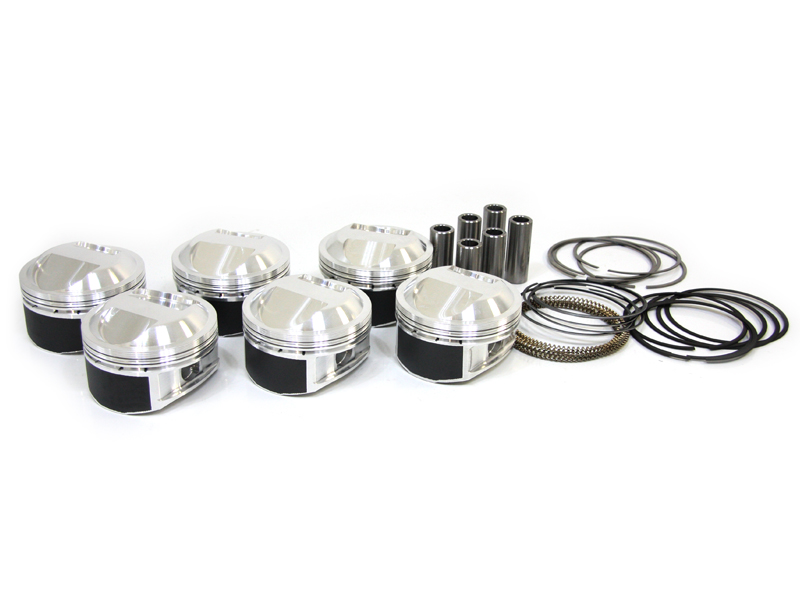

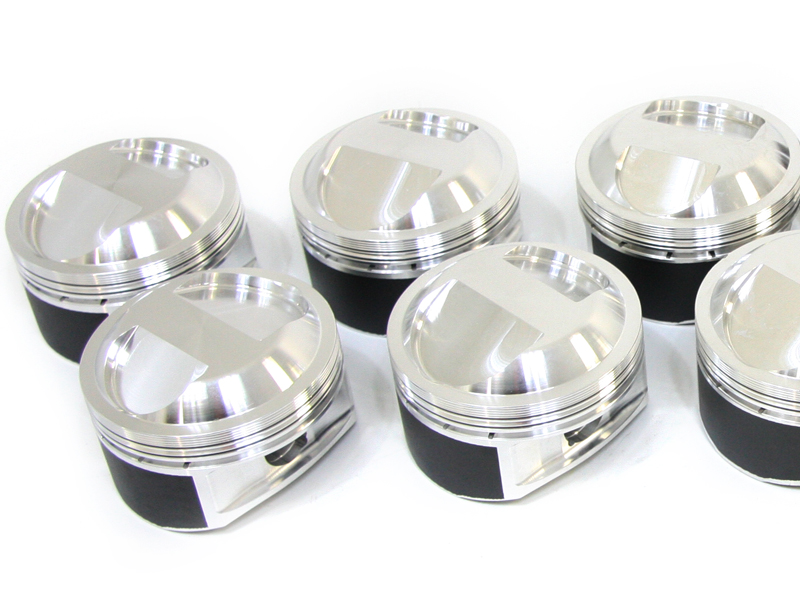

Forged from 4032 Aluminium Alloy
Fits:
Porsche 964 / 993 3.6ltr (11.0:1)
Engine Size : 3.6ltr
Bore Size: 105.03mm
Stroke: 76.40mm
Rod length: 127.00mm
Compression Distance : 31.80mm
Compression Ratio: 11.0:1
Oversize: 5.03mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction

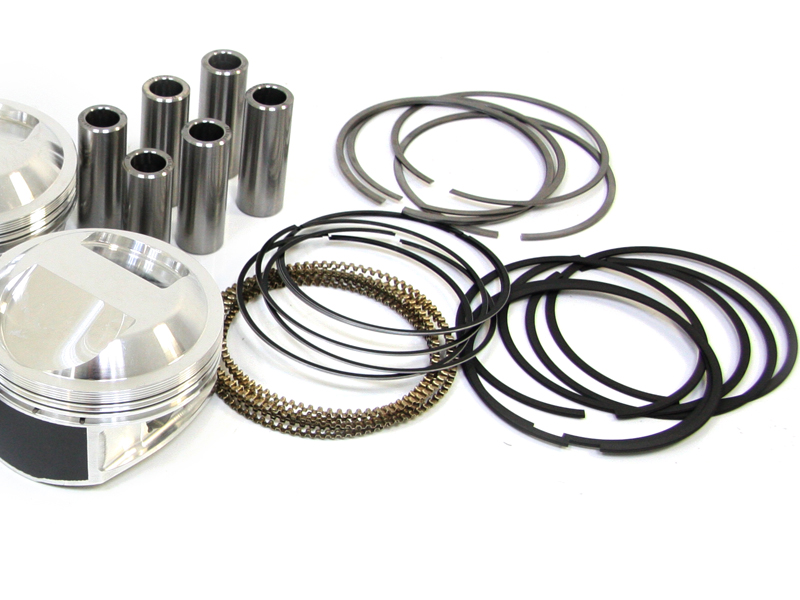

• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381264
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 964 / 993 3.6ltr (11.0:1)
Engine Size : 3.6ltr
Bore Size: 103.12mm
Stroke: 76.40mm
Rod length: 127.00mm
Compression Distance : 31.80mm
Compression Ratio: 11.0:1
Oversize: 3.15mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381263
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 964 / 993 3.6ltr (11.0:1)
Engine Size : 3.6ltr
Bore Size: 102.00mm
Stroke: 76.40mm
Rod length: 127.00mm
Compression Distance : 31.80mm
Compression Ratio: 11.0:1
Oversize: 2.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381262
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 964 / 993 3.6ltr (11.0:1)
Engine Size : 3.6ltr
Bore Size: 100.00mm
Stroke: 76.40mm
Rod length: 127.00mm
Compression Distance : 31.80mm
Compression Ratio: 11.0:1
Oversize: Standard (STD)
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381261
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.2ltr (10.0:1)
Engine Size : 3.2ltr
Bore Size: 102.00mm
Stroke: 74.40mm
Rod length: 127.00mm
Compression Distance : 32.77mm
Compression Ratio: 10.0:1
Oversize: 7.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381260
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.2ltr (10.0:1)
Engine Size : 3.2ltr
Bore Size: 100.00mm
Stroke: 74.40mm
Rod length: 127.00mm
Compression Distance : 32.77mm
Compression Ratio: 10.0:1
Oversize: 5.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381259
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.2ltr (10.0:1)
Engine Size : 3.2ltr
Bore Size: 98.00mm
Stroke: 74.40mm
Rod length: 127.00mm
Compression Distance : 32.77mm
Compression Ratio: 10.0:1
Oversize: 3.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381258
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.2ltr (10.0:1)
Engine Size : 3.2ltr
Bore Size: 95.00mm
Stroke: 74.40mm
Rod length: 127.00mm
Compression Distance : 32.77mm
Compression Ratio: 10.0:1
Oversize: Standard (STD)
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381257
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.0ltr (10.0:1)
Engine Size : 3.0ltr
Bore Size: 102.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 7.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381256
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.0ltr (10.0:1)
Engine Size : 3.0ltr
Bore Size: 100.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 5.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381255
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.0ltr (10.0:1)
Engine Size : 3.0ltr
Bore Size: 98.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 3.00mm
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381254
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 3.0ltr (10.0:1)
Engine Size : 3.0ltr
Bore Size: 95.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: Standard (STD)
Material: 4032 Aluminium Alloy
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381253
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 2.7ltr (10.0:1)
Engine Size : 2.7ltr
Bore Size: 93.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Dome/Dish Volume: 22.3cc
Oversize: 3.00mm
Material: 4032 Aluminium Alloy
Piston Weight (each): 410g
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381252
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 2.7ltr (10.0:1)
Engine Size : 2.7ltr
Bore Size: 92.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Dome/Dish Volume: 23.3cc
Oversize: 2.00mm
Material: 4032 Aluminium Alloy
Piston Weight (each): 400g
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381251
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 2.7ltr (10.0:1)
Engine Size : 2.7ltr
Bore Size: 90.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Dome/Dish Volume: 25.3cc
Oversize: Standard (STD)
Material: 4032 Aluminium Alloy
Piston Weight (each): 390g
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381250
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
Forged from 4032 Aluminium Alloy
Fits:
Porsche 911 2.4ltr (10.0:1)
Engine Size : 2.4ltr
Bore Size: 87.50mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Dome/Dish Volume: 27.7cc
Oversize: 3.5mm
Material: 4032 Aluminium Alloy
Piston Weight (each): 370g
JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.
The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.
4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use
Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
381249
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Shop Securely
12 Month Warranty
Worldwide Delivery
Request a
